ASHLAND SCRAPERS

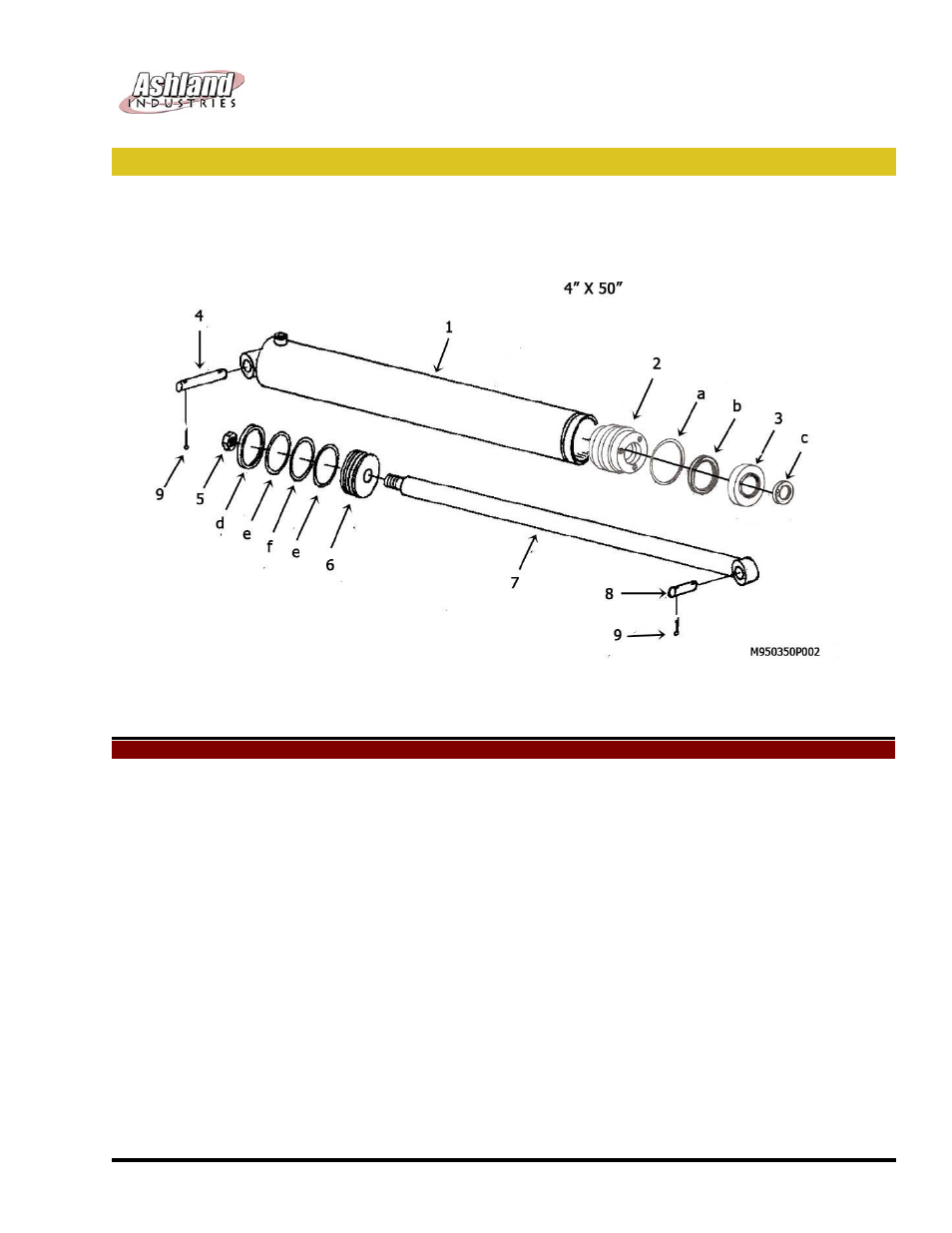

Push Off Cylinder (#A125111) 4" x 50"
KEY PART DESCRIPTION SN 950 REMARKS
A125111 PUSH OFF CYLINDER 4" X 50" 21226-XXXXX
1 A123424 Barrel Assembly
2 A123425 Head Gland
3 A123426 Collar
4 A8062 Pin, 1-1/4" x 7"
5 A400H17 Piston Nut, 1-1/4" NF
6 A80H27 Piston
7 A90H26 Rod Assembly
8 A8061 Pin, 1-1/4" x 4-3/4"
9 8602 Cotter Pin, 1/4" x 2"
A125111-40 Seal Kit Containing (a-f) 21226-XXXXX
A80H30 Seal Kit Containing (a-f) XXXXX-21225
a O-ring, 4" OD x 1/8"
b Seal: U-Cup
c Wiper Seal, 2" ID
d Cast Iron Ring, 4" OD
e Backup Washer, 4" OD
f O-ring, 4" OD x 3/16"
