Fuse Replacement (Figure 12)
WARNING
Replace fuse with same type and rating only
(P/N 100091, 3A, 250V).
MAINTENANCE (CONTINUED)
1. Push bottom rear drawer to the left to access fuse
assembly. See Figure 12.
2. Push fuse in, turn counterclockwise and pull outward.
See Figure 13.
3. Fully insert new fuse of same type and rating.
4. Turn fuse clockwise while pushing inward.
5. Reassemble drawer.
Figure 13. Fuse Location

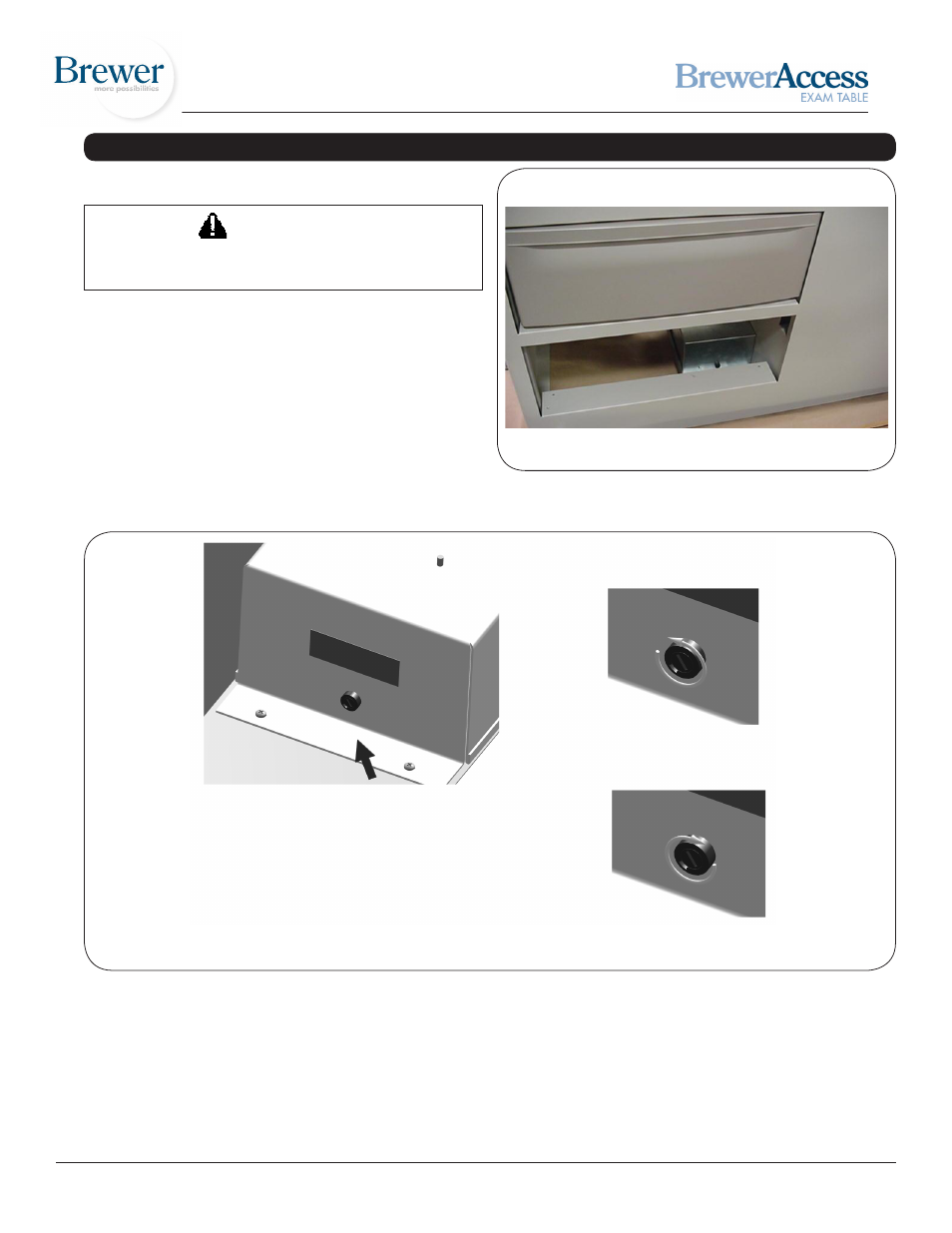

Figure 12. Bottom Drawer Moved to Show Fuse Location
Installing Fuse
Removing Fuse
