4-5 ASUS Pundit P1-AH1

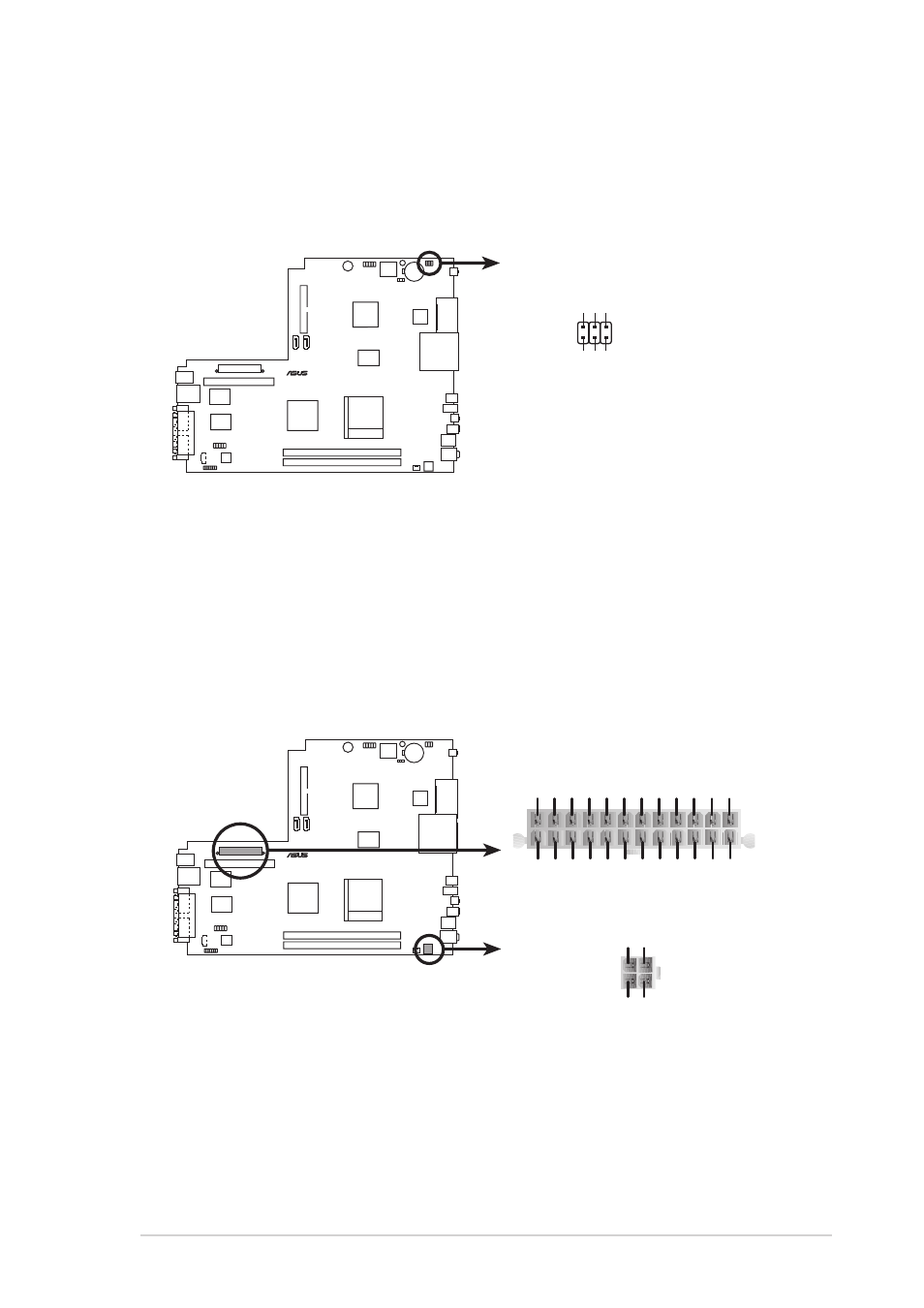

3. LED connector (6-pin LED_CON)
This connector supports the Power and HDD activity LEDs in the
system front panel.
4. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V)
These connectors are for the 24-pin and 4-pin power plugs from the
power supply unit. The plugs from the power supply unit are designed
to fit these connectors in only one orientation. Find the proper
orientation and push down firmly until the connectors completely fit.
¤
LED connector
LED_CON
PLED+
IDE_LED+
NC PLED- IDE_LED-
NC
®
ATX Power connectors
EATXPWR1
ATX12V1
+3 V
olts
+3 V
olts
Ground +5 V
olts
+5 V
olts
Ground Ground Power OK +5V Standb
y
+12 V
olts
-5 V
olts
+5 V
olts
+3 V
olts
-12 V
olts
Ground Ground Ground PSON# Ground +5 V
olts
+12 V
olts
+3 V
olts
+5 V
olts
Ground
+12V DC
GND +12V DC
GND
