Advance planning for built-in outdoor grills
Installation in a combustible enclosure
To install into combustible enclosures, built-in outdoor grills must
use a grill liner accessory. Please refer to the grill liner installa-
tion instructions for details.

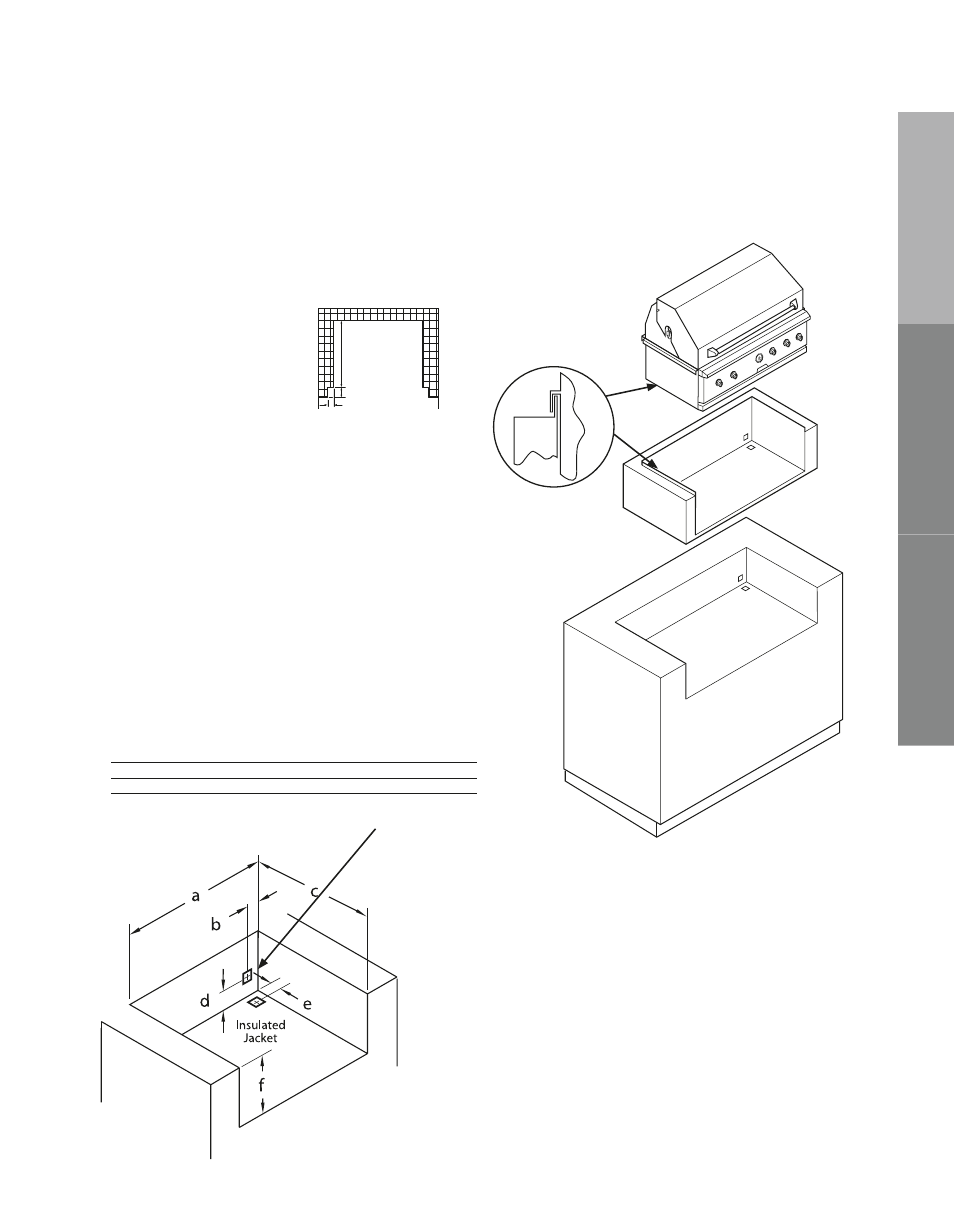

Dimensions and installation information (in inches)
Built-in grill cut-out dimensions to install into combustible
enclosures with grill liner accessory (not provided with built-in grill)
These grills are designed to be installed into a non-combustible
enclosure when not using grill liner accessories.
• The grill drops into the opening and hangs from the side flanges.
It does not require support from the bottom.
• The cutout must be completely covered with non-combustible
material such as stone, brick, ceramic tile, concrete board, etc.
The countertop surface and edges must be flat and level.
• If the countertop has an
overhang, it must be notched
or cut back flush with the front
face of the cabinet below.
• Allow at least 12" minimum
clearance at the back of the grill
when the exhaust is directed
to a window or surface that is
difficult to clean. Allow at least 4" clearance behind the grill to
allow the hood lid to open.
• Allow 12" minimum clearance on both sides and the back of
the grill to adjacent vertical combustible construction.
• These gas grills cannot be used below any type of overhead
construction.
• These grills are designed for outdoor use only. Do not locate
the grill or cooktop in a building, garage or other enclosed or
semi-enclosed area.
• Locate the back side of the grill away from prevailing winds
and avoid cooking in windy conditions.
Countertop Notch Detail
5/8" for Outdoor Grills
1-1/2" Depth
Depth to Cabinet Face
4" square holes for gas and
electrical connections both left
and right sides (rear or bottom
access). Make these holes
in the frame based on your
requirements.
Insulated
Liner
Combustible
Enclosure
ZGG420NBPSS (natural gas)
Description
Kit model
number
Dimensions with
insulated jacket installed
a b c d e f
30" grill liner ZX30JR 36" 5" 26-1/2" 4-1/2" 3 11-5/8"
42" grill liner ZX42JR 48" 5" 26-1/2" 4-1/2" 3 11-5/8"
