8
Installation Instructions
MAKE THE L.P. GAS CONVERSION
(CONT.)
TO ADJUST ( CONT .):
Make the adjustment.
Retighten the air shutter screw.
Close the oven door and recheck the flame.
When all adjustments are made and the
results are satisfactory:
1. Replace the oven baffle (flame spreader).
2. Replace the oven bottom.
SPECIAL NOTE: To convert the oven back to
natural gas, reverse the instructions given in
making L.P. Adjustments.
WARNING:
Once the conversion
is complete and checks ok, fill out the
L.P. sticker located in the pre-pack shipped
with your appliance and include your name,
organization and date conversion was
made. Apply the sticker to the range front
frame opposite the name and number plate
behind the broiler drawer to alert others in
the future that this appliance has been
converted to L.P. If converting back to
natural gas from L.P., please remove the
sticker so others know the appliance is
set to use natural gas.
E
D
C
B

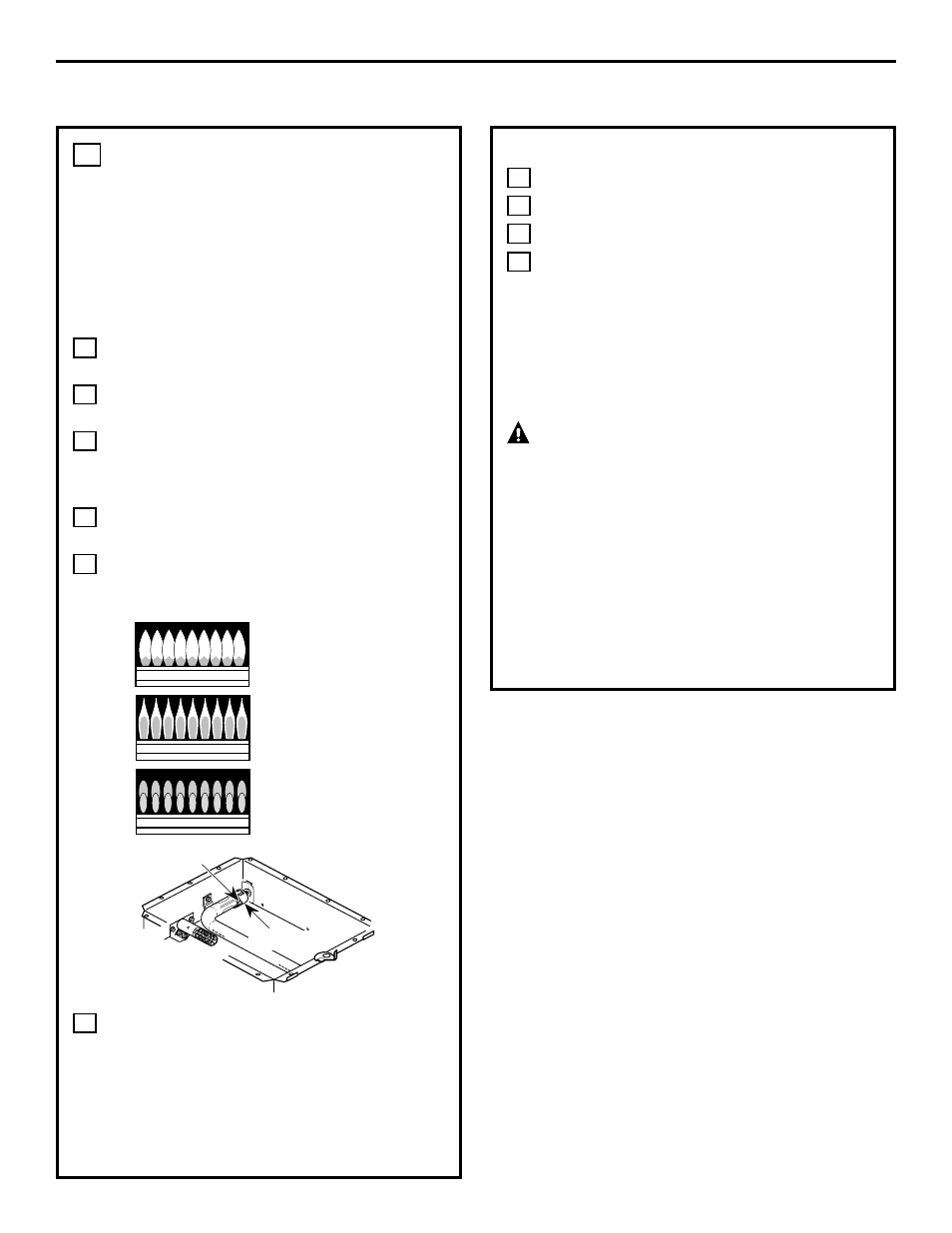

ADJUST AIR SHUTTER
NOTE: The oven burner flame must be checked
with the door closed to properly check flame
characteristics.
Turn on bake or broil.
As you watch the flame with the oven door
closed, check the following through the oven
door window:
Burner flames should not flutter or blow
away from the burner.
They should be blue in color with no trace
of yellow.
The inner cone of the flame should be
approximately 1/2
″ to 3/4″ long.
IN SOME CASES
With L.P. gas, some yellow tipping on the
outer cone is normal.
Foreign particles in the gas line may cause
an orange flame at first, but this will soon
disappear.
TO ADJUST:
Use a screwdriver to loosen the air shutter
screw.
1. If the flames were yellow, open the air
shutter more than the original setting.
2. If the flames blew away or fluttered from
the burner, close the air shutter more than
the original setting.
A
B
A
C
B
A
5
“A”
Yellow Flames
Call for Service
“B”
Yellow Tipping
Normal for LP Gas
“C”
Soft Blue Flames
Normal for Natural Gas
Air Shutter
Air Shutter Screw
