5
Installation Instructions
GAS CONNECTIONS (cont.)
Place the oven in the cutout.
Level the oven:
1. Place a spirit level on one of the oven
racks.
2. If the oven is not level, adjust the leg
levelers.
With the oven in place, remove the regulator
cover by carefully grasping the left side and
pull until the spring clip is released. The
pressure regulator inlet is accessible through
the opening in the main back.
Remove regulator cover.
Through this opening connect:
1. The flexible connection and the adaptor
(see Fig. 7).
or
2. The rigid pipe connection and union to the
shutoff valve (see Fig. 8).
Tighten the fitting.
WARNING:
DO NOT FORCE!
FORCING COULD DAMAGE THE FITTING,
TUBING OR CAUSE LEAKING.
M
L
K
J
I
5 CHECK FOR LEAKS
WARNING:
DO NOT USE OPEN
FLAME TO CHECK FOR LEAKS!
Apply a soap solution to all connections:
supply line, manifold and oven.
Turn on the main gas supply.
Check for any bubbles to form.
Turn off main gas supply.
Stop any leaks found.
Turn main gas supply on to make sure all
leaks were stopped.
WARNING:
ALL LEAKS MUST BE
STOPPED BEFORE ATTEMPTING TO LIGHT
BURNERS.
F
E
D
C
B
A
6
PRESSURE TEST INFORMATION
The maximum allowable pressure for the
regulator is 14
″ W.C.
The minimum pressure needed to check the
regulator setting is 11
″ W.C. for L.P. gas and
5
″ W.C. for Natural.
CAUTION:
The range and its
individual shutoff valve must be
disconnected from the gas supply piping
system during any pressure testing of the
gas supply system at test pressures in
excess of 1/2 psig (pound per square inch
gauge).
The range must be isolated from the gas supply
piping system by closing its individual manual
shut-off valve during any pressure testing of the
gas supply system at test pressures equal to or
less than 1/2 psig.
B
A
7

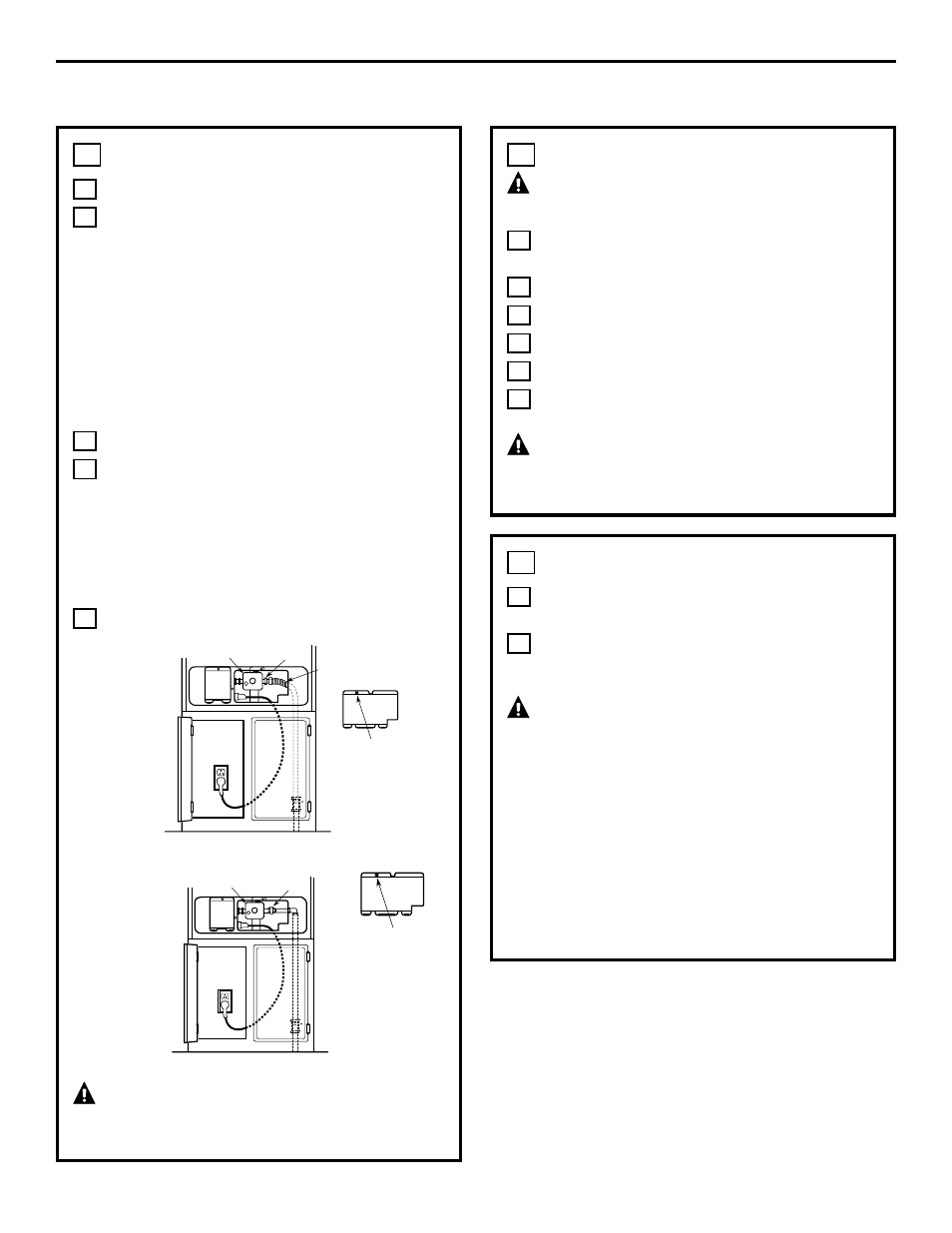

Fig. 7
Fig. 8
Regulator
Cover
Regulator
Cover
Flexible
Connection
Adaptor Pressure Regulator
Adaptor Pressure Regulator
FLEXIBLE HOOK-UP
RIGID HOOK-UP
