Snip all 4 webs
on each knockout
panel and remove
the metal knockouts
for rear airflow.

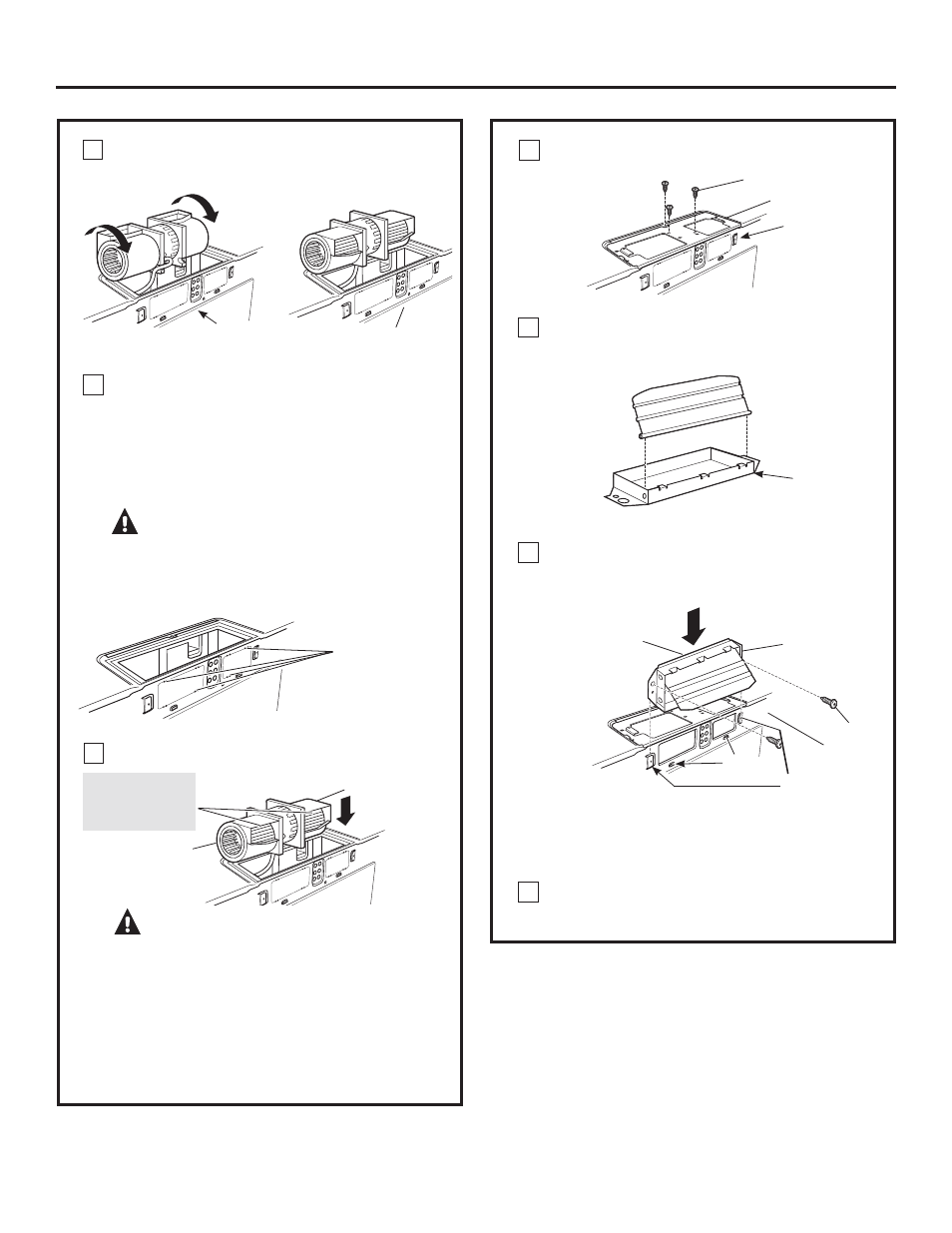

Locate the two “knockout” plates, on the rear oven
panel, near the top of the oven.
Using tin snips, carefully cut the web area from the
two holes side-by-side (that secure the knockouts to
the oven). Cut all four webs on both rear knockouts;
this will allow the ventilation fan airflow to exhaust
out the rear of the oven.
CAUTION:
Be sure to trim the sharp
HGJHVIURPWKHRSHQLQJVDIWHUUHPRYLQJWKH
NQRFNRXWSODWHV
AFTER: Fan Blade
Openings Facing
%DFN
7 Place the blower unit back into the opening.
9 Insert the tabs on each side of the damper
into the holes at the inside rear of the adaptor.
8 Roll the blower unit 90° so that fan blade openings
are facing out the back of the oven.
5
17
Blower Plate
Replace the blower plate in the same position
as before with the screws.
Before Rolling After Rolling
Back of Oven
End A
End B
Back of
Oven
Back of
Oven
WARNING:
5LVNRIHOHFWULFVKRFN
can cause injury or death. Do not pull or stretch
WKHEORZHUXQLWZLULQJPDNHVXUHWKHZLUHVDUH
not pinched..
NOTE: The blower unit exhaust openings should
match exhaust openings on rear of microwave oven.
Installation Instructions
Blower Plate Screws
2YHQ5HDU3DQHO
6
Attach the exhaust adaptor to the rear of the oven
by sliding it into the guides at the top center of the
back of the oven.
10
Secure the exhaust adaptor to the oven with
the two bronze metal screws provided.
11
Push in securely until it is in the lower locking tabs.
Take care to assure the damper hinge is installed
so that it is at the top and that the damper swings
freely.
Slide exhaust
adaptor into
guides on
oven rear.
Exhaust Adaptor
Damper
(hinge side up)
Locking
Tabs
Guides
Back of Oven
Exhaust
Adaptor
Screws
