Installation Instructions

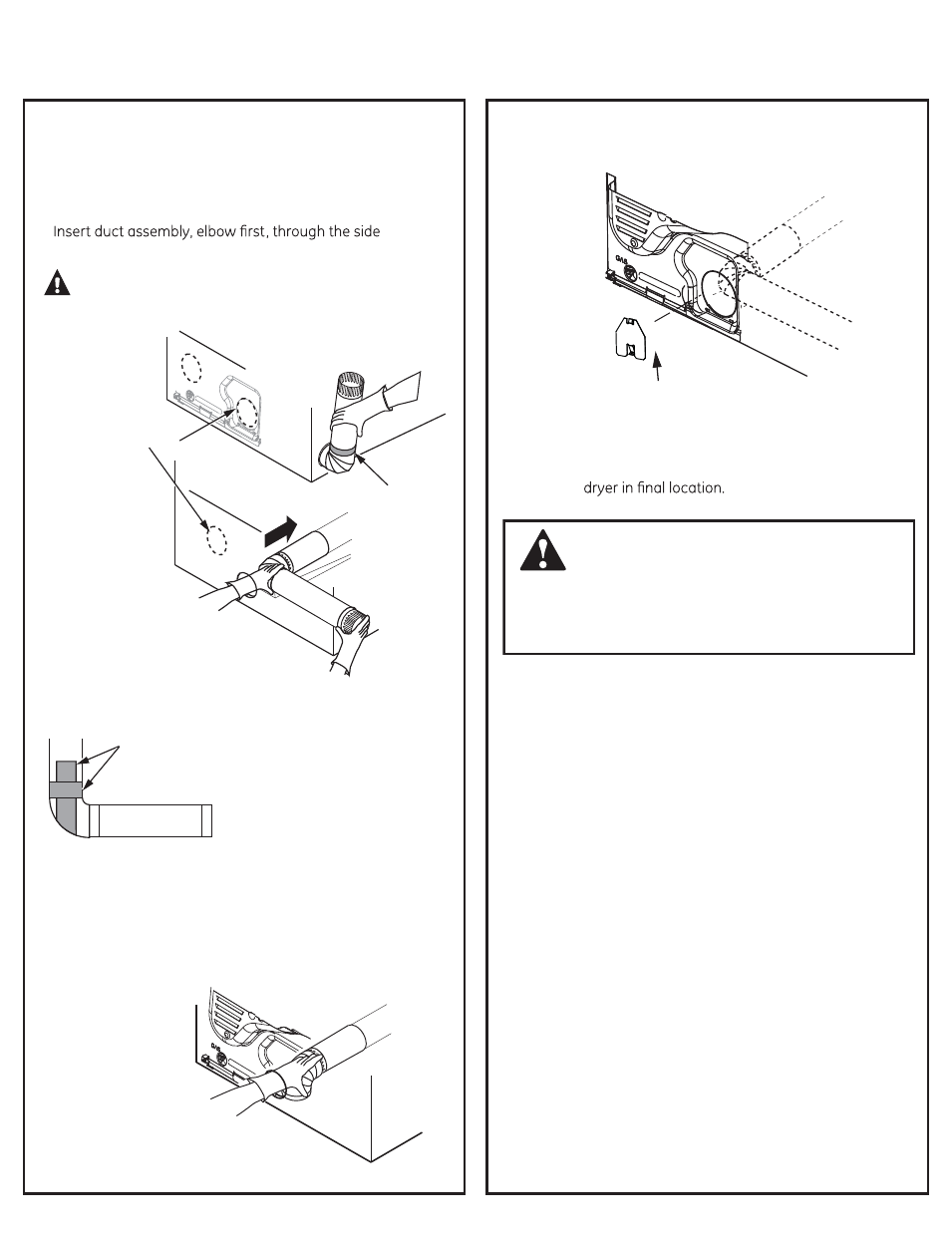

ADDING ELBOW AND DUCT FOR
EXHAUST TO LEFT OR RIGHT SIDE OF
CABINET
-Pr((#"."%++ ).*)'&*))&
ar %*$!% $)
-
%&$ $$%$$))"%+)%)',' $)'$"*)
CAUTION:
Be sure not to pull or damage the
electrical wires inside the dryer when inserting the duct.
-&&",*))&((%+$%$)!% $))+$)
',' $)'$"*)$)"%+
ADDING ELBOW FOR EXHAUST
THROUGH BOTTOM OF CABINET
-$('))"%+)'%*)re'%&$ $$%$$)
))%)',' $)'$"*)
-&&",*))&%$)!% $))+$)',' $)'$"
*)$"%+((%+$%$&
PE
CAUTION:
Use 4” rigid metal ducting only
inside the dryer. Internal duct
joints must be secured with
tape, otherwise they may sepa-
rate and cause a safety hazard.
CAUTION:
Internal duct joints
must be secured with
tape, otherwise they
may separate and cause
a safety hazard.
PE
ADDING COVER PLATE TO REAR OF
CABINET (SIDES AND BOTTOM EXHAUST)
Connect standard metal elbows and ducts to complete
the exhaust system. Cover back opening with a plate
(Kit WE1M454) is available from your local service provider.
Place with
PL ATE
(KIT WE1M454)
NEVER LEAVE THE BACK OPENING
WITHOUT THE PLATE.
(Kit WE1M454)
WARNING
