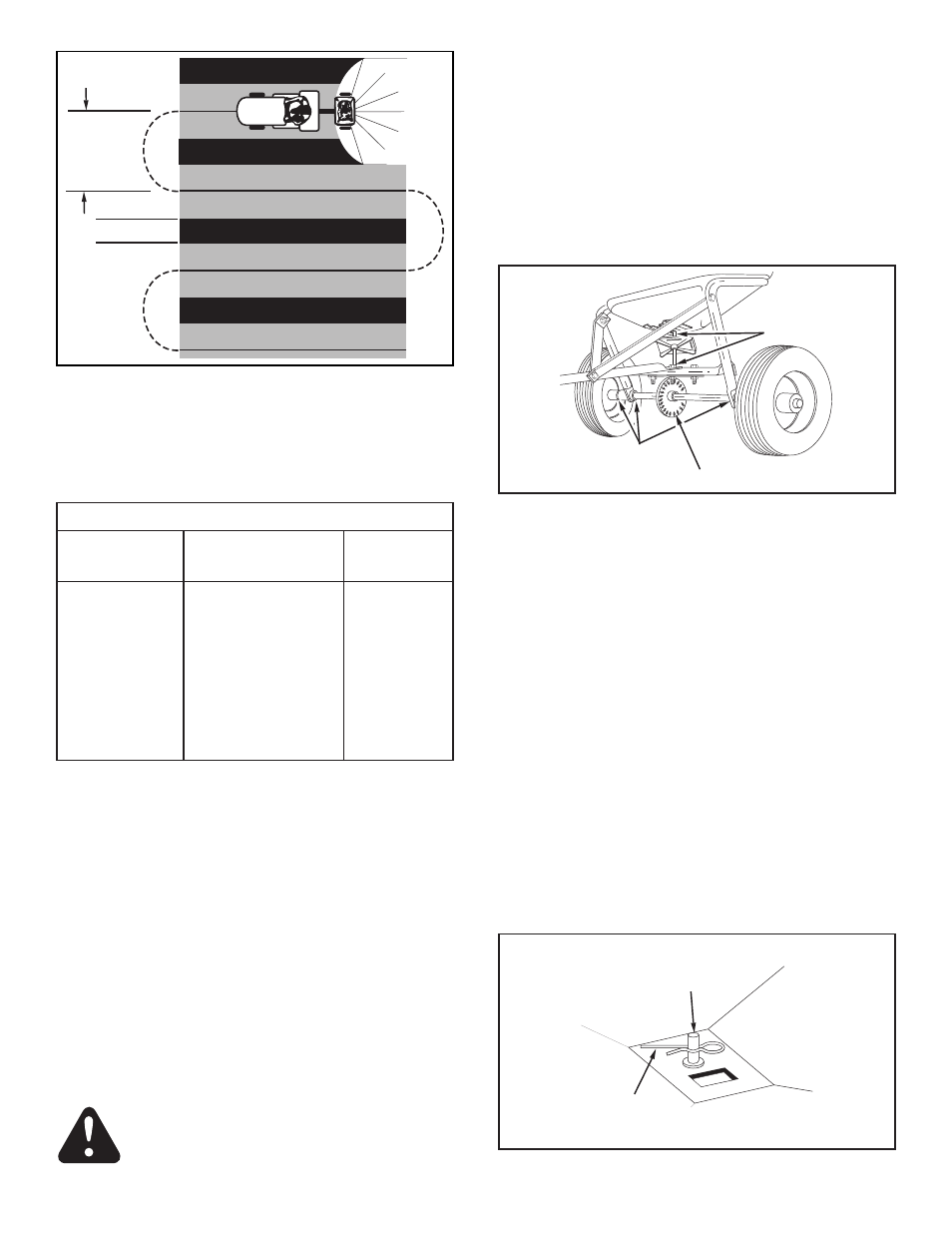

Page 5

background image

5

FerTIlIZer

Powder

3 - 5

3' - 4'

Granular

3 - 5

8' - 10'

Pelleted

3 - 5

10' - 12'

Organic

6 - 8

6' - 8'

Grass seeD

Fine

3 - 4

6' - 7'

Coarse

4 - 5

8' - 9'

ICe melTer

6 - 8

10' - 12'

TYPe

sPreaD

maTerIal

Flow seTTInG

wIDTH

aPPlICaTIon CHarT (sHIelD uP)

oPeraTInG sPeeD - 3 MPH. (100 ft. in 23 seconds)

CHeCK For loose FasTeners
1.

Before each use make a thorough visual check of the

spreader for any bolts and nuts which may have loosened.
Retighten any loose bolts and nuts.

CHeCK For worn oF DamaGeD ParTs
2. Check for worn or damaged parts before each use. Repair

or replace parts if necessary.

CHeCK TIre InFlaTIon
3. Check if tires are adequately inflated before each use. Do

not inflate beyond maximum recommended pressure.

FIGure 9

CauTIon: Do noT inflate tires beyond the
maximum recommended pressure printed
on side of tire.

CleanInG
4. Rinse inside of hopper and exterior of spreader and dry

off before storing.

luBrICaTe (See figure 9.)
5. Lightly apply automotive grease as needed to the sprocket

and gear.

6. Oil the nylon bushings on the vertical sprocket shaft and on

the axle at least once a year, or more often as needed.

7. Oil right hand (idler) wheel bearing at least once a year or

more often as needed.

maInTenanCe

GREASE

OIL

OIL

1. Rinse inside of hopper and exterior of spreader and dry

off before storing.

2. Store in a clean, dry area.

sToraGe

FIGure 10

1. If the axle, slotted gear and sprocket assembly is

disassembled, mark down the positions of the parts as
they are removed. The drive wheel and sprocket positions
in relation to the slotted gear determine which direction
the spreader plate will spin. Be sure to reassemble them
in their original positions. (Refer to figure 5 on page 3.)
Use shim washers (Ref. no. 21 on pages 6 and 7) as
needed for minimum backlash. Add grease to gear and
sprocket.

2. If the agitator hairpin becomes damaged or worn it can

be replaced. See figure 10.

serVICe anD aDJusTmenTs

SPROCKET
SHAFT

AGITATOR
HAIRPIN

FIGure 8

ImPorTanT: Application rates shown in the chart are affected
by humidity and by the moisture content of the material
(granular and pellet). Some minor setting adjustments may
be necessary to compensate for this condition.

OVERLAP

REFER

TO

CHARTS
