Connecting the cables

Place the monitor in a convenient, well-ventilated location near the computer.

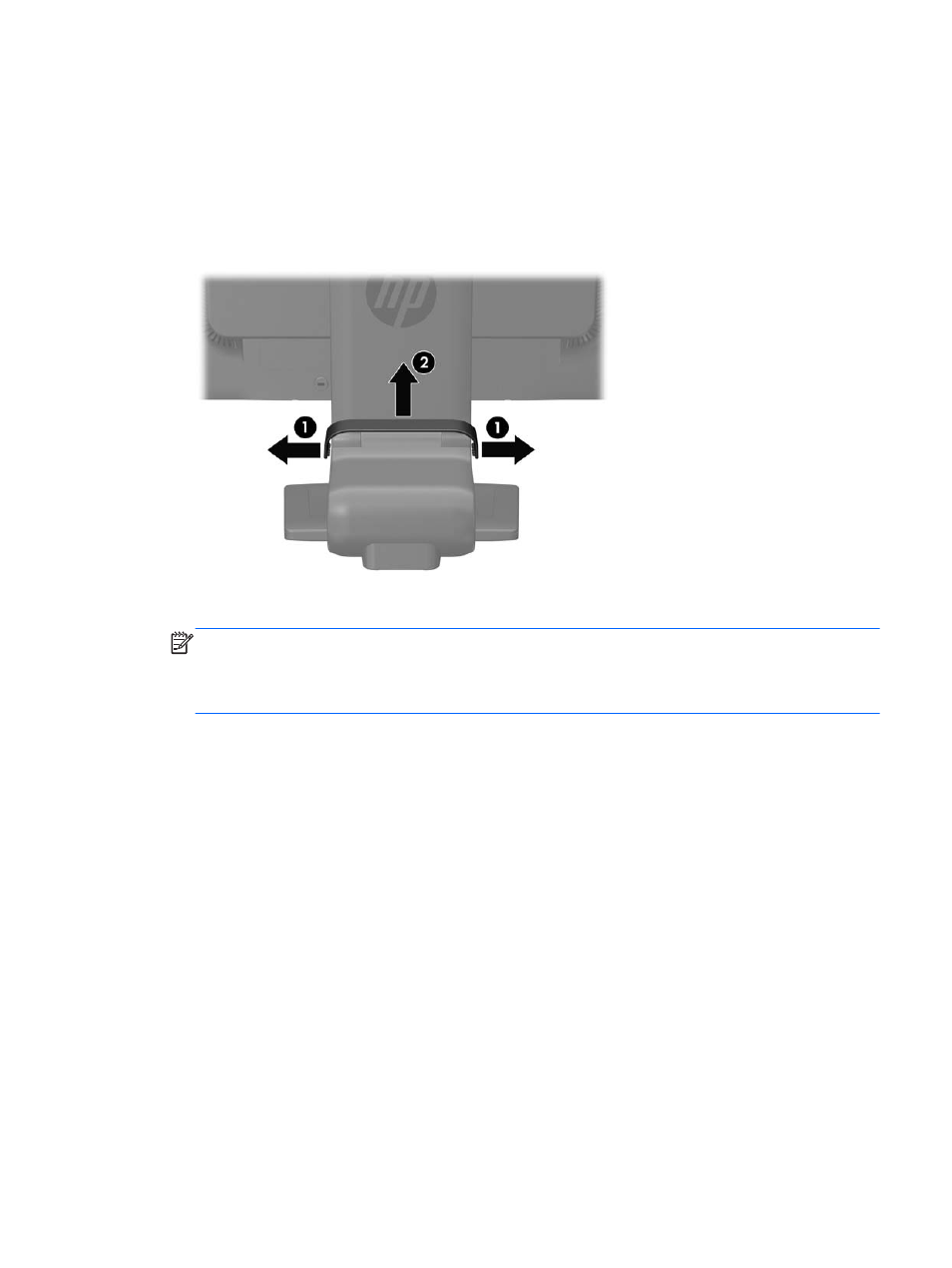

Remove the cable management clip from the pedestal by pulling outward on the two sides of the

clip (1) and lifting the clip off the pedestal (2).

Figure 2-3

Removing the cable management clip

Connect a VGA signal cable, DVI-D signal cable, or DisplayPort signal cable.

NOTE:

The monitor is capable of supporting either analog or digital input. The video mode is

determined by the video cable used. The monitor will automatically determine which inputs have

valid video signals. The inputs can be selected by pressing the

+/source

button on the front panel

or through the on-screen display (OSD) feature by pressing the

button.

●

For analog operation, use the VGA signal cable provided. Connect the VGA signal cable to

the VGA connector on the rear of the monitor and to the VGA connector on the computer.

●

For DVI digital operation, use the DVI-D signal cable provided. Connect the DVI-D signal

cable to the DVI connector on the rear of the monitor and to the DVI connector on the

computer.

●

For DisplayPort digital operation, use the DisplayPort signal cable provided. Connect the

DisplayPort signal cable to the DisplayPort connector on the rear of the monitor and to the

DisplayPort connector on the computer.

Connect one end of the provided audio cable to the audio connector on the computer, and

connect the other end to the audio-in connector on the monitor.

Connect one end of the provided USB cable to the USB upstream connector on the rear of the

monitor, and connect the other end to a USB connector on the computer.
