Rear components – HP Compaq L2206tm 21.5-inch LED Backlit Touch Monitor User Manual
Page 10
Rear components

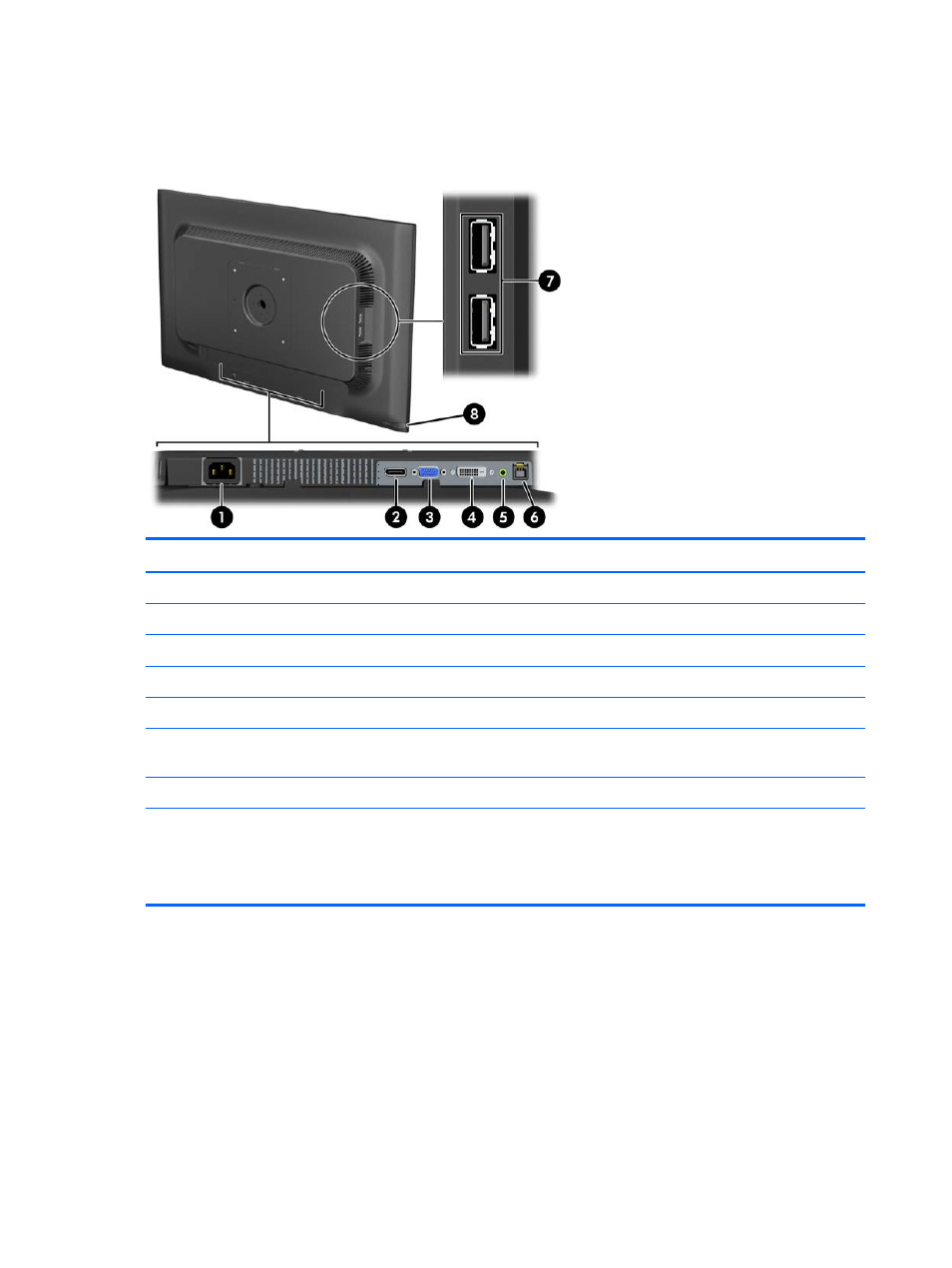

Figure 2-2
Rear components
Component
Description
1
AC power connector
Connects the AC power cable to the monitor.
2
DisplayPort
Connects the DisplayPort cable to the monitor.
3
VGA connector
Connects the VGA cable to the monitor.
4
DVI-D connector
Connects the DVI-D cable to the monitor.
5
Audio connector
Connects the audio cable to the monitor.
6
USB upstream connector
Connects the USB hub cable to the monitor's USB hub connector
and to a host USB port/hub.
7
USB downstream connectors (2)
Connect optional USB devices to the monitor.
8
Passive stylus
Housed in rear enclosure. When removed, it can be used as a
touch pointing device.
NOTE:
The stylus is not required for optical touch applications.
Fingers and other pointing instruments may be used.
4
Chapter 2 Setting up the monitor
