Page 9: 2setting up and using the monitor
2
Setting up and using the monitor
To set up the monitor, ensure that the power is turned off to the monitor, computer system, and other
attached devices, and then follow the instructions below.

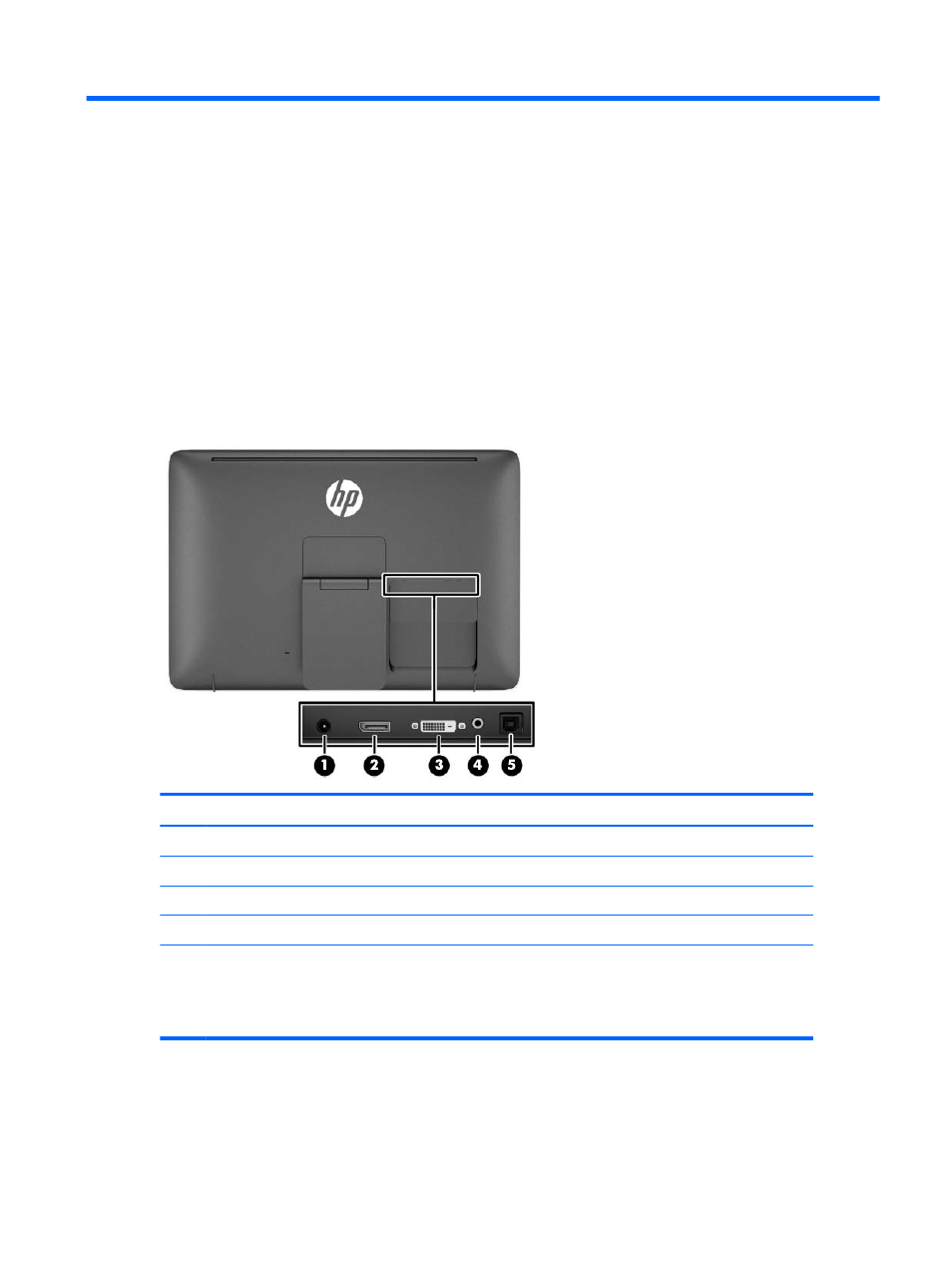

Rear components
Component
Description
1
DC power connector
Connects the DC power cable to the monitor.
2
DisplayPort connector
Connects the DisplayPort cable to the monitor.
3
DVI-D connector
Connects the DVI-D cable to the monitor.
4
Audio In connector
Connects the audio cable from a host computer to the monitor .
5
USB upstream connector
Connects the USB cable to the monitor's touch screen USB
connector and to a host USB port/hub.
NOTE:
A USB connection between the monitor and computer
is required for webcam and touch functionality.
Rear components
3
