Connecting the cables
1.
Lay the monitor panel face down on a flat surface covered by a clean, dry cloth.
2.

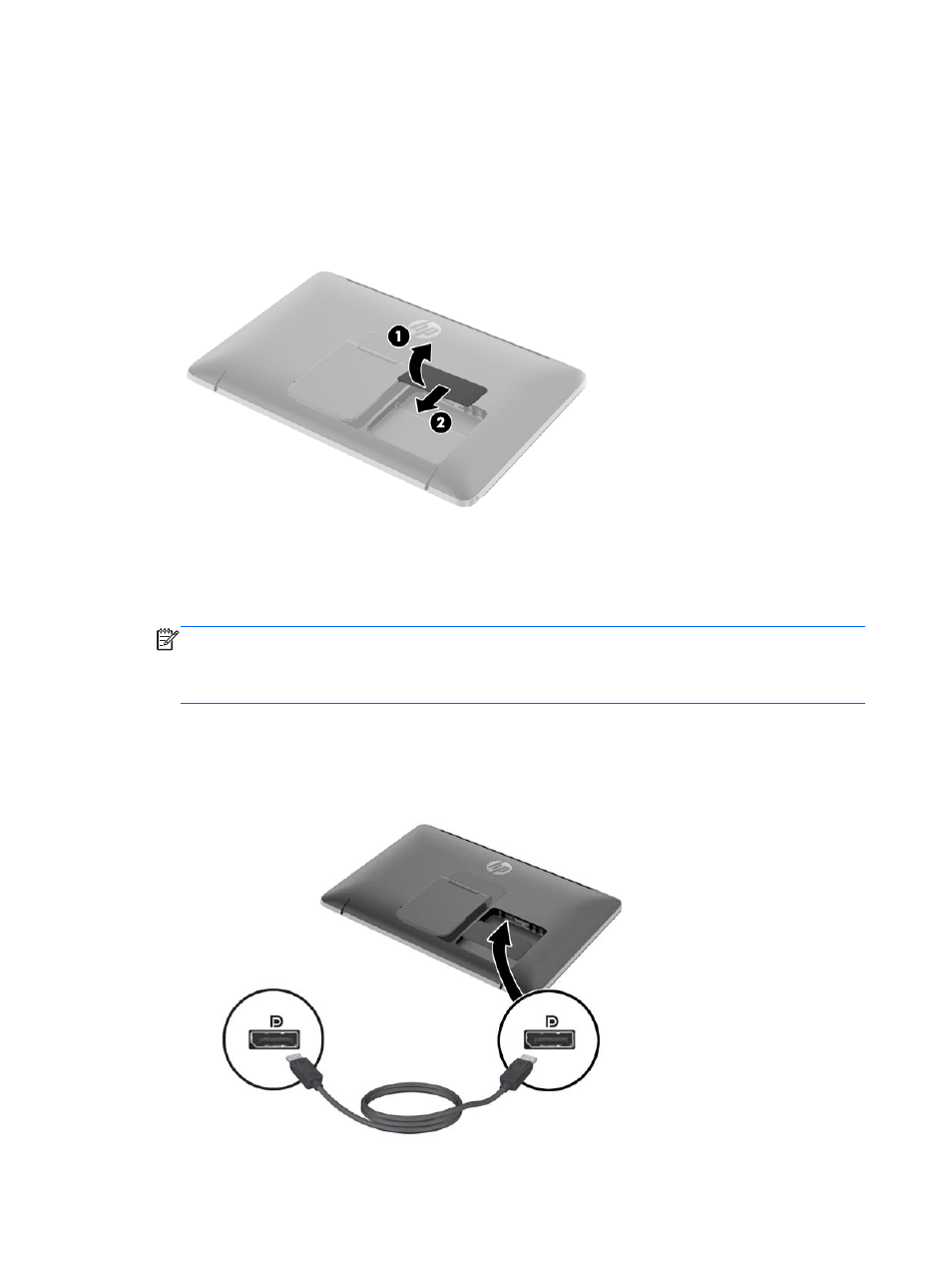

Rotate the bottom of the cable cover up (1) then slide out the top of the cover (2) to remove it.
3.
Depending on your configuration, connect either the DVI or DisplayPort video cable between the
PC and the monitor.
NOTE:
The video mode is determined by the video cable used. The monitor will automatically
determine which inputs have valid video signals. The inputs can be selected by pressing the
Input
button on the side panel or through the On-Screen Display (OSD) feature by pressing the
Menu
button.
●
For DisplayPort digital operation, connect the DisplayPort signal cable to the DisplayPort
connector on the rear of the monitor and the other end to the DisplayPort connector on your
input device (cable provided).
4
Chapter 2 Setting up and using the monitor
