Rear components – HP EliteDisplay S240ml 23.8-in IPS LED Backlit MHL Monitor User Manual
Page 12

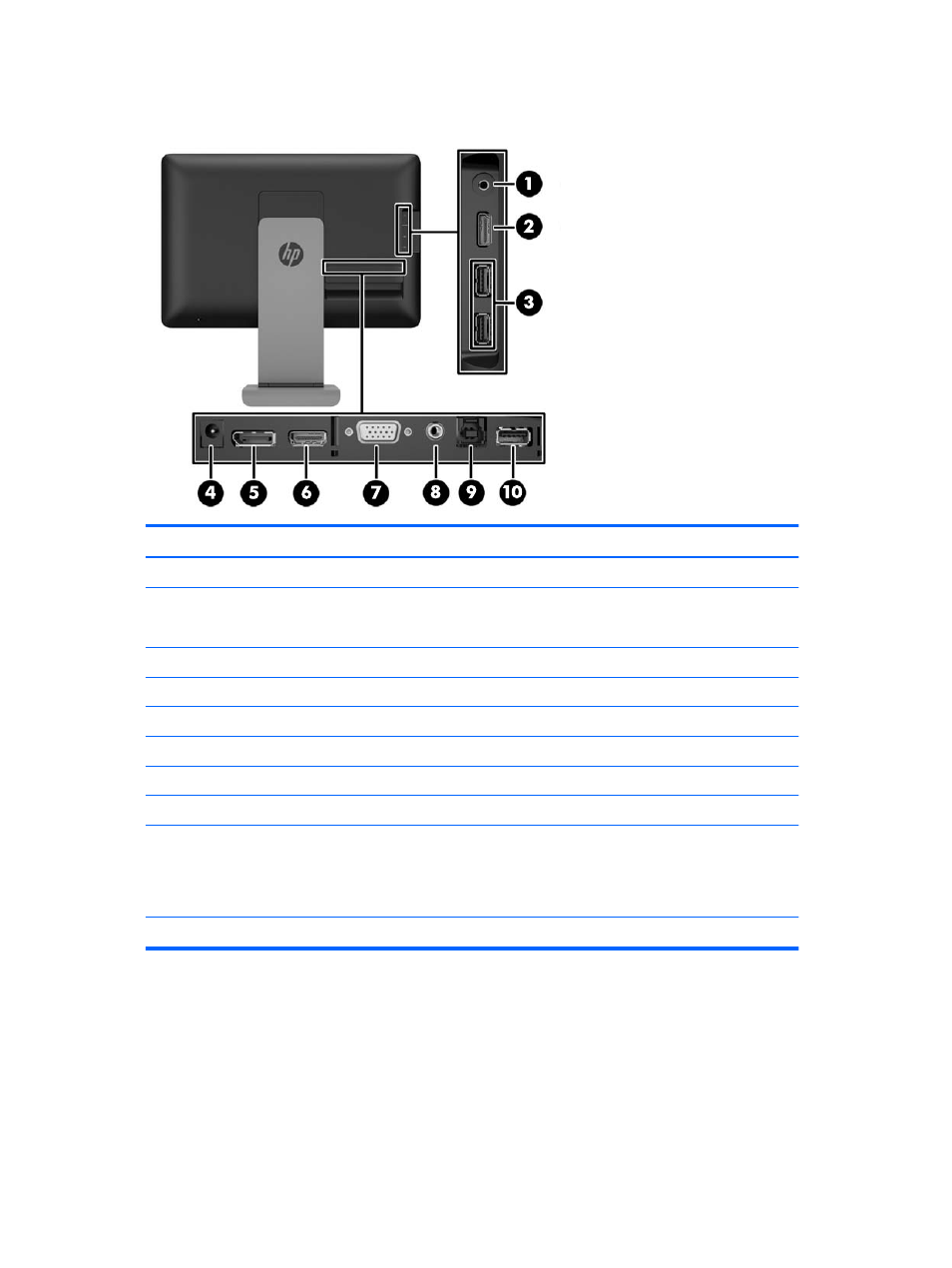

Rear components
Component
Description
1
Headphone jack
Connects the headphone cable (not included) to the monitor.
2
MHL/HDMI connector
Connects the MHL cable to the monitor.
Can also be used to connect the HDMI cable to the monitor.
3
USB 3.0 (2) connector
Connects the USB cable or device to the monitor.
4
DC power connector
Connects the DC power cable to the monitor.
5
DisplayPort connector
Connects the DisplayPort cable to the monitor.
6
HDMI connector
Connects the HDMI cable to the monitor.
7
VGA connector
Connects the VGA cable to the monitor.
8
Audio In connector
Connects the audio cable from a host computer to the monitor .
9
USB upstream connector
Connects the USB cable to the monitor's USB connector and to
a host USB port/hub.
NOTE:
A USB connection between the monitor and computer
is required for webcam functionality.
10
USB 3.0 connector
Connects the USB cable or device to the monitor.
6
Chapter 2 Setting up and using the monitor
