2. Attach the mounting bracket to the Thin Client using the 4 screws to mount the bracket to the
VESA mounting holes on the Thin Client.

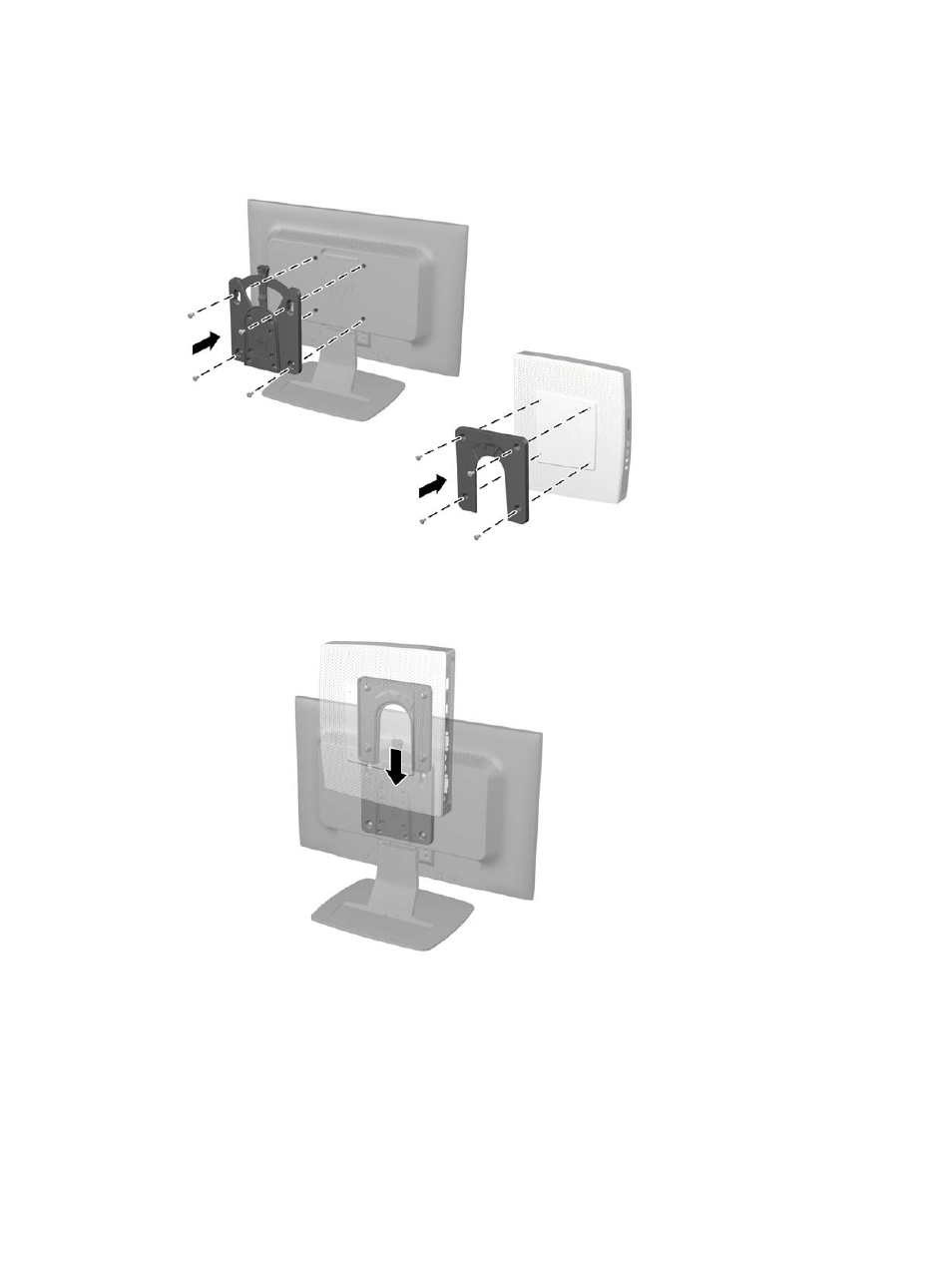

Figure 2-11 Mounting Quick Release and Quick Release Bracket to the Monitor and the Thin
Client
3. Mount the Thin Client onto the Quick Release on the monitor.
Figure 2-12 Mounting the Thin Client onto the Quick Release
4. Plug one end of the short power cable (provided) into the power adapter (1) and the other end
into the AC power connector on the monitor (2).
5. Connect the DC power cable from the power adaptor into the Thin Client (3).
6. Plug one end of the short VGA cable into the monitor (4) and the other end into the Thin Client
(5).
