7

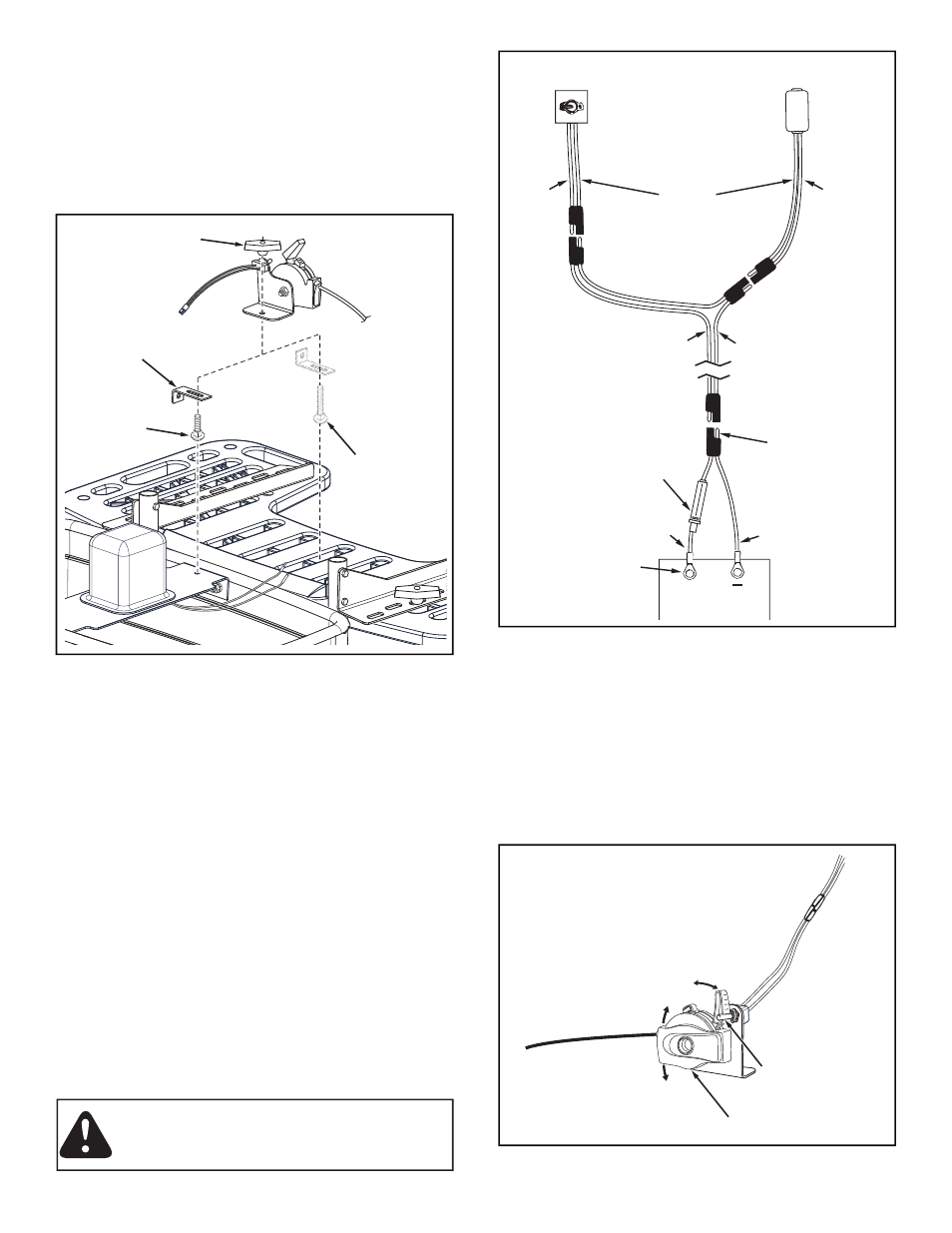

FIGURE 12

FIGURE 11

FIGURE 13

WIRING INSTRUCTIONS
When properly connected, the spreader motor and impeller
will run

clockwise viewed from above.

20. Move the spreader's fl ow control lever to the off position

so that the "ON-Off" switch is turned off.

21. Connect the short (fused) wire harness to the vehicle

battery by connecting the red wire to the positive post
and the brown wire to the negative post on the battery.
The wire harness may be left permanently attached to
the battery. See fi gure 12.

22. Connect the long wire harness to the spreader by

connecting the red and white wires to the switch and
the brown and white wires to the spreader motor. Refer
to fi gure 12.

23. Connect the long wire harness to the short (fused) wire

harness. Be sure the wires are clear of any moving parts,
hot engine parts, or pinch points.

24. Use the nylon ties provided to safely secure the wiring

away from hot engine parts, rotating parts and pinch
points.

19. Attach the fl ow control to the motor mount bracket on the

spreader using the 5/16" x 1" carriage bolt, a mounting
clamp and a plastic knob. See fi gure 11.

NOTE: You can also attach to the rear rack if you use a 5/16"
x 1-3/4" carriage bolt. If you attach to the rear rack, you can
loosely pre-assemble the clamp, bolt and knob to the fl ow
control. The clamp can then be angled down through the
slot in the rack.

NEVER allow negative pin on plug to come
in contact with positive "hot" post on battery.
Fire or explosion can result!

"ON-OFF"
SWITCH

FLOW CONTROL

ON-OFF

25. Move the fl ow control lever to the "ON" position. Flip

the "ON-OFF" switch on and check that the motor
runs counterclockwise. If it does not, refer to the wiring
diagram on page 6 and recheck the hookup.

26. Move the fl ow control lever to "OFF". This should turn

the "ON-OFF" switch off. If it does not, you can loosen
the control and rotate it enough that the fl ow control
lever, when moved to the "OFF" position will turn the
switch off. See fi gure 13.

BROWN

RED

FUSE AND HOLDER

POSITIVE
"HOT" POST

NEGATIVE PIN

BROWN

RED

BATTERY

+

SWITCH

MOTOR

BROWN

RED

WHITE

5/16" x 1"
CARRIAGE
BOLT

MOUNTING
CLAMP

PLASTIC KNOB

5/16" x 1-3/4"
CARRIAGE
BOLT
