5

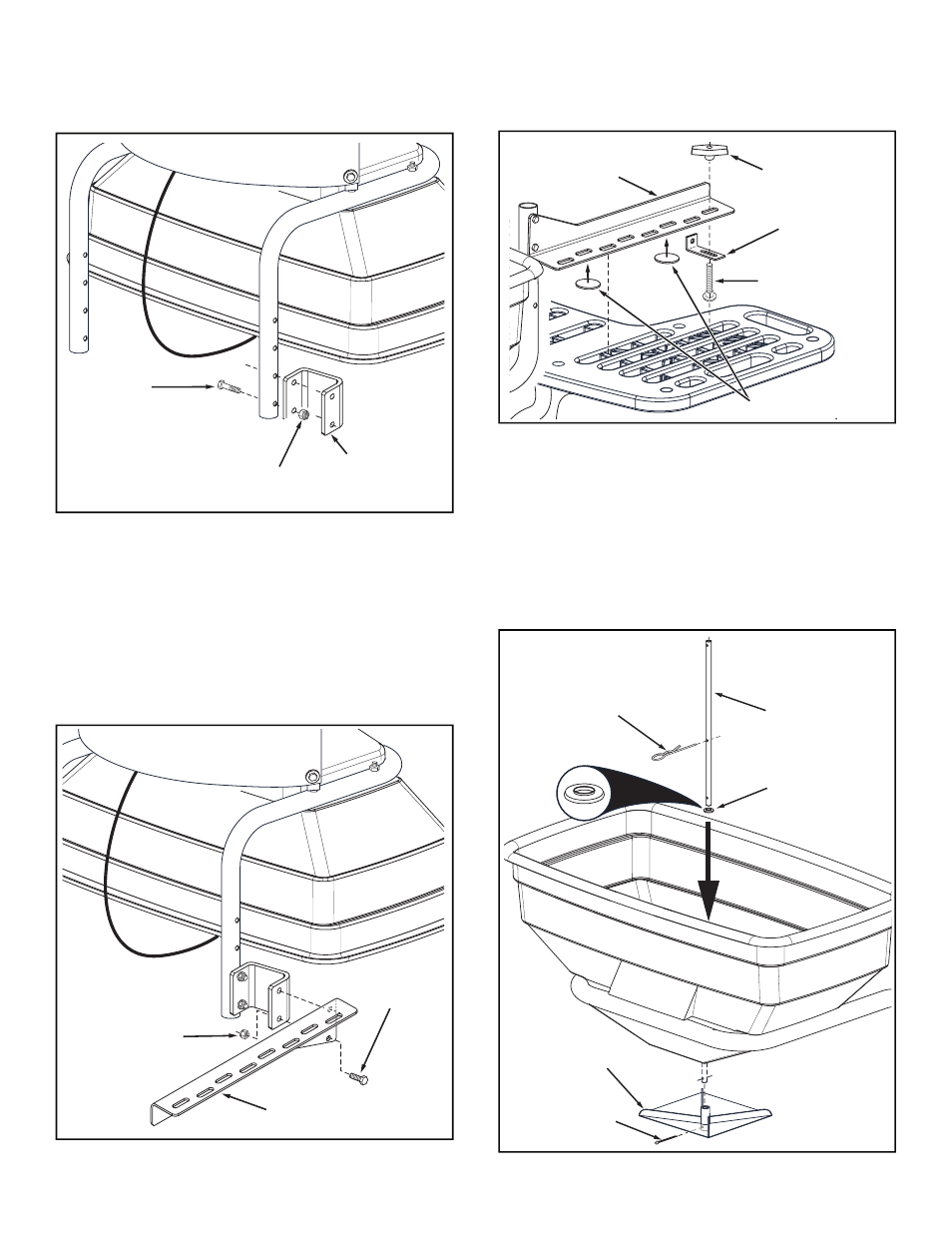

FIGURE 6
8. Attach the spreader's mounting brackets to the vehicle's
rear rack using four 5/16" x 1-3/4" carriage bolts,
mounting clamps and plastic knobs. Use the adhesive
pads to protect the rack. See fi gure 6.
If you are using extension brackets:
6. Attach the extension brackets to the legs of the spreader
frame. Use two 5/16" x 2" hex bolts and 5/16" nylock
nuts per bracket.
Tighten. See fi gure 4.
5/16" NYLOCK
NUT
MOUNTING
BRACKET, R.H.
5/16" x 1"
HEX BOLT
If you are using extension brackets:
7. Attach the R.H. mounting bracket to the extension bracket
shown in fi gure 5 using two 5/16" x 1" hex bolts and
5/16" nylock nuts.
Tighten. Repeat on the other frame
leg with the L.H. mounting bracket.
FIGURE 5
FIGURE 4
5/16" x 1-3/4"
CARRIAGE BOLT
MOUNTING
CLAMP
PLASTIC KNOB
MOUNTING
BRACKET
ADHESIVE PAD
5/16" x 2"
HEX BOLT
EXTENSION
BRACKET
5/16" NYLOCK NUT
IMPELLER
1/8" x 1-1/4"
COTTER PIN
1/8" HAIRPIN
AGITATOR
SEAL
SPREADER
SHAFT
FIGURE 7
9. Insert the 1/8" hairpin agitator into the middle hole in
the spreader shaft. Assemble a seal (turned as shown
in fi gure 7) onto the end of the spreader shaft closest
to the hairpin agitator. See fi gure 7.
10. Slide the end of the spreader shaft having the seal
through the plastic bushing in the bottom of the hopper.
See fi gure 7.
11. Slide the impeller onto the spreader shaft and secure
it with a 1/8" x 1-1/4" cotter pin. See fi gure 7.
