Switch Explorer View
58 Web Tools Version 3.1.x/4.1.x User Guide
Status Legend

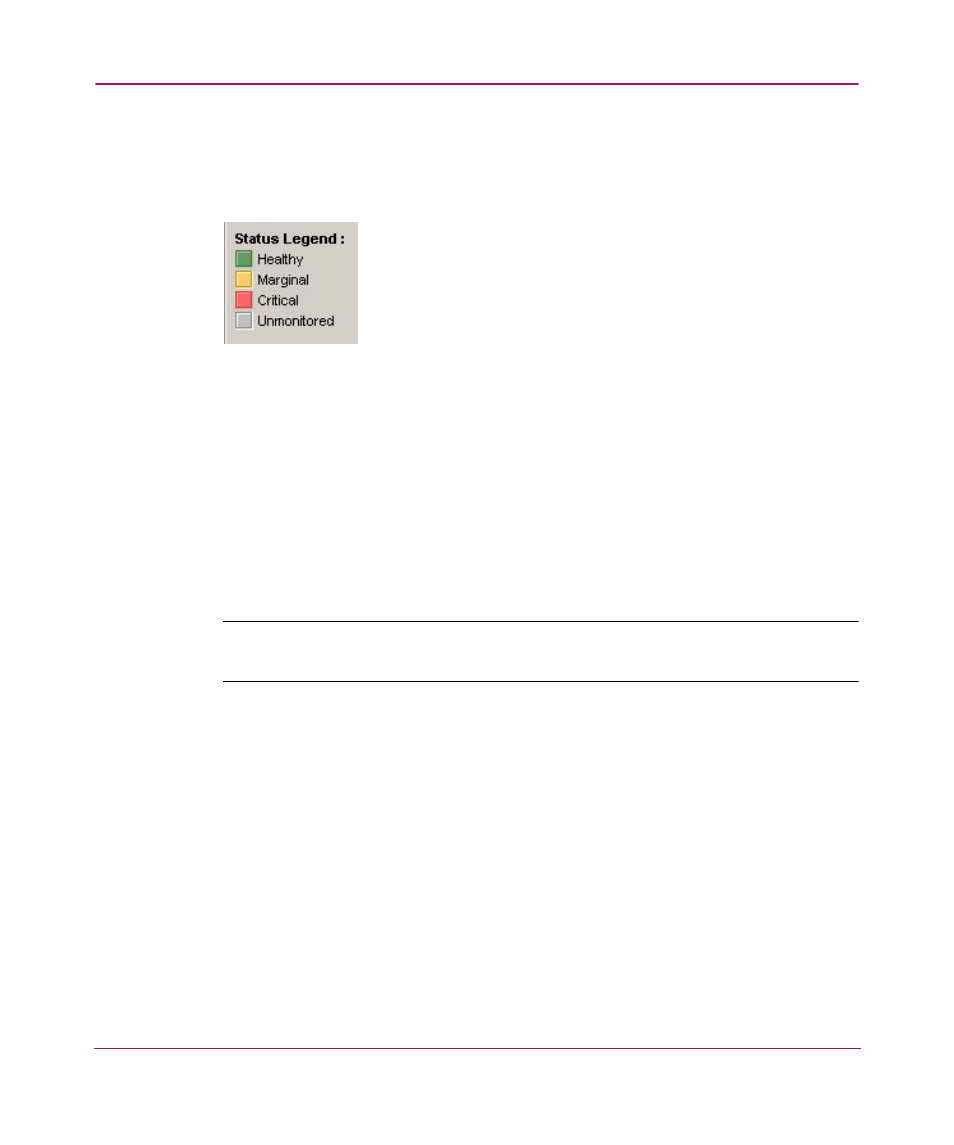

The Status Legend defines the meaning of colors visible in the background of the
various icons in the Switch Explorer.
Each color indicates a different operational state:
■ Green - Healthy
■ Yellow - Marginal (mix of good and faulty readings)
■ Red - Down (more than two faulty readings)
■ Gray - Unknown or unmonitored
■ Dark Gray - monitoring is being initiated.
If no data is available from a switch, the status is unmonitored and the switch
displays as gray.
Note: For all status displays that are based on errors per time interval, any errors will
cause the status to show faulty until the entire sample interval has passed.
