Introducing HP Web Tools
28 Web Tools Version 3.1.x/4.1.x User Guide

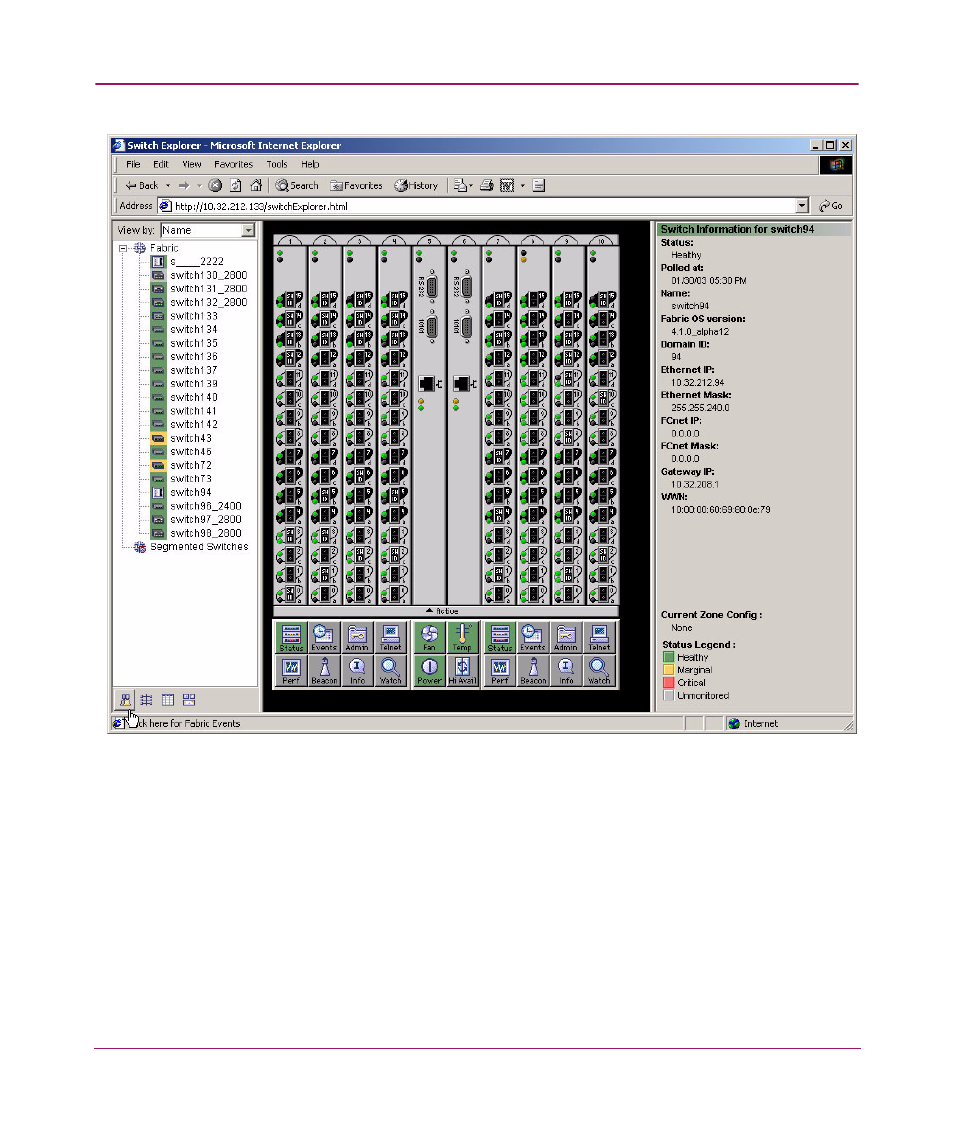

Figure 1: Web Tools Switch Explorer View for a Core Switch 2/64
Fabric Tree
The Fabric Tree is the left window of the Switch Explorer and displays:
■ A list of all the switches in the fabric. You can use the drop-down menu to
view these switches by Switch Name, IP address, or WWN. The background
color displays the current status of the switch.
■ A Fabric Admin toolbar which provides access to fabric level administration
functionality including: Fabric Events, Topology, Name Server, and Zoning
Admin.
