HP StorageWorks 2.32 Edge Switch - Manual (Page 61)

HA-Fabric Manager user guide 61
2. Verify the SNMP settings.
a. Launch Embedded Web Server (EWS) by opening a web browser application and entering
the IP address of the product as the Internet uniform resource locator (URL).
For example, http://10.1.1.11 .
b. Log in and click OK.
c. Select Configure from the navigation panel.
d. Select the Management tab.
The Management and SNMP tab views display.

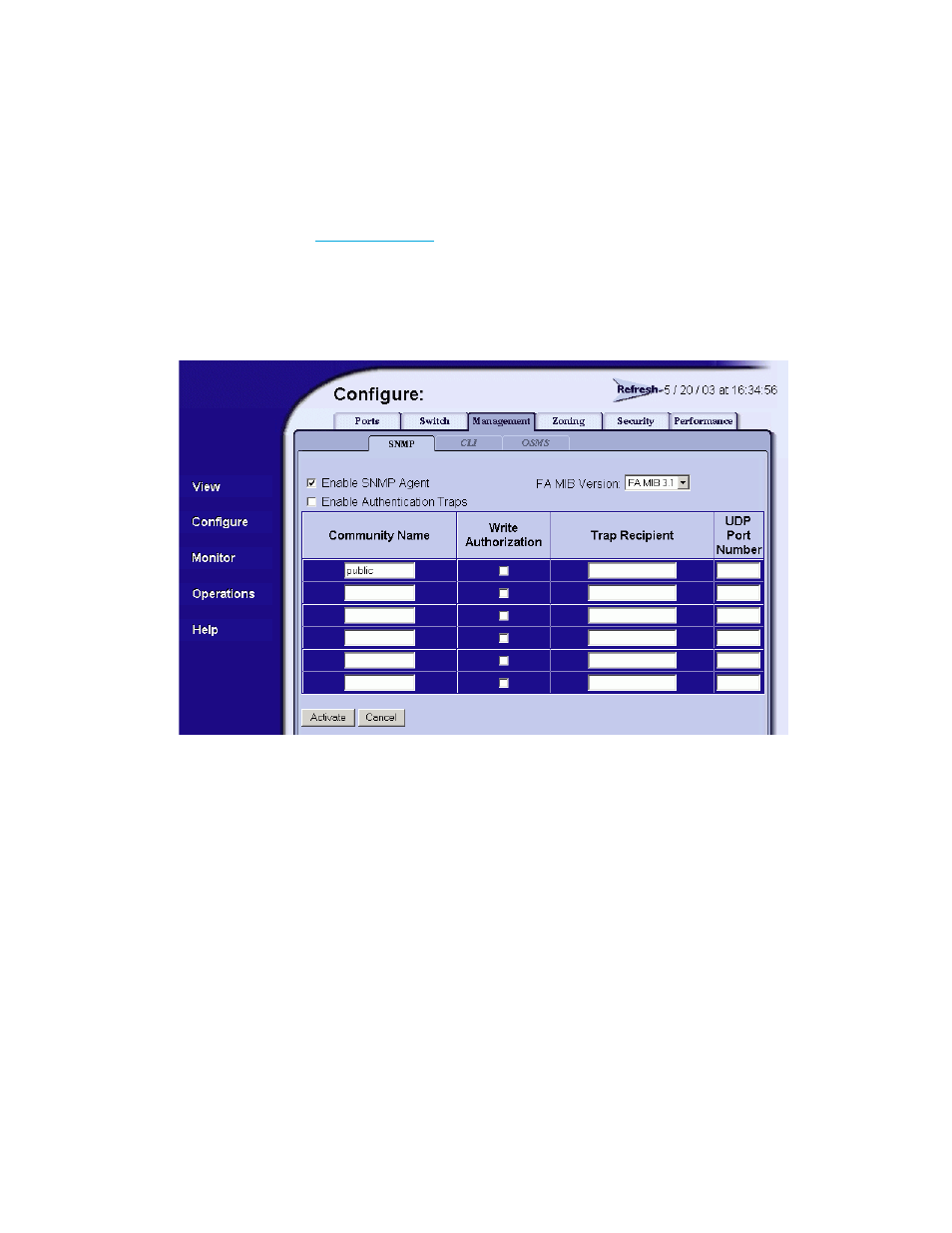

Figure 26 SNMP tab
e. Verify that the Enable SNMP Agent option is selected.
f. Verify that the Community Name field displays “public”, or matches the HAFM appliance
configuration.
3. Verify the product data.
a. Select View from the navigation panel.
b. Select the Unit Properties tab.
