HA-Fabric Manager user guide 153
• When the server ID is defined only in the HAFM appliance and has not been added to the
switch, the current appliance can be removed by not selecting the Include current server check
box. If the current appliance is selected, Remove is disabled.
• If the server ID and CHAP Secret have been added to the switch, highlight the current appliance,
and click Remove. If the current appliance is removed from the Permitted Software list, the
Include current server check box is enabled.
Editing the CHAP Secret for the current HAFM appliance
To edit the CHAP Secret of the current HAFM appliance:
1. Select the current HAFM appliance and click Edit.
A message displays indicating to use the Server Properties dialog box to edit the current
appliance’s properties.
2. Click OK to display the Server Properties dialog box.
3. Edit the server ID or CHAP secret.
If the appliance is changed, a message displays indicating when you change the server ID, you
must also update the authenticating switches, or this appliance becomes out-of-sync and the
switches cannot be managed.
4. Click OK to return to the Software tab.
Adding an additional HAFM appliance
1. To add another HAFM appliance to Permitted Software list, click Add.
The Add or Edit Software ID and CHAP Secret dialog box displays.

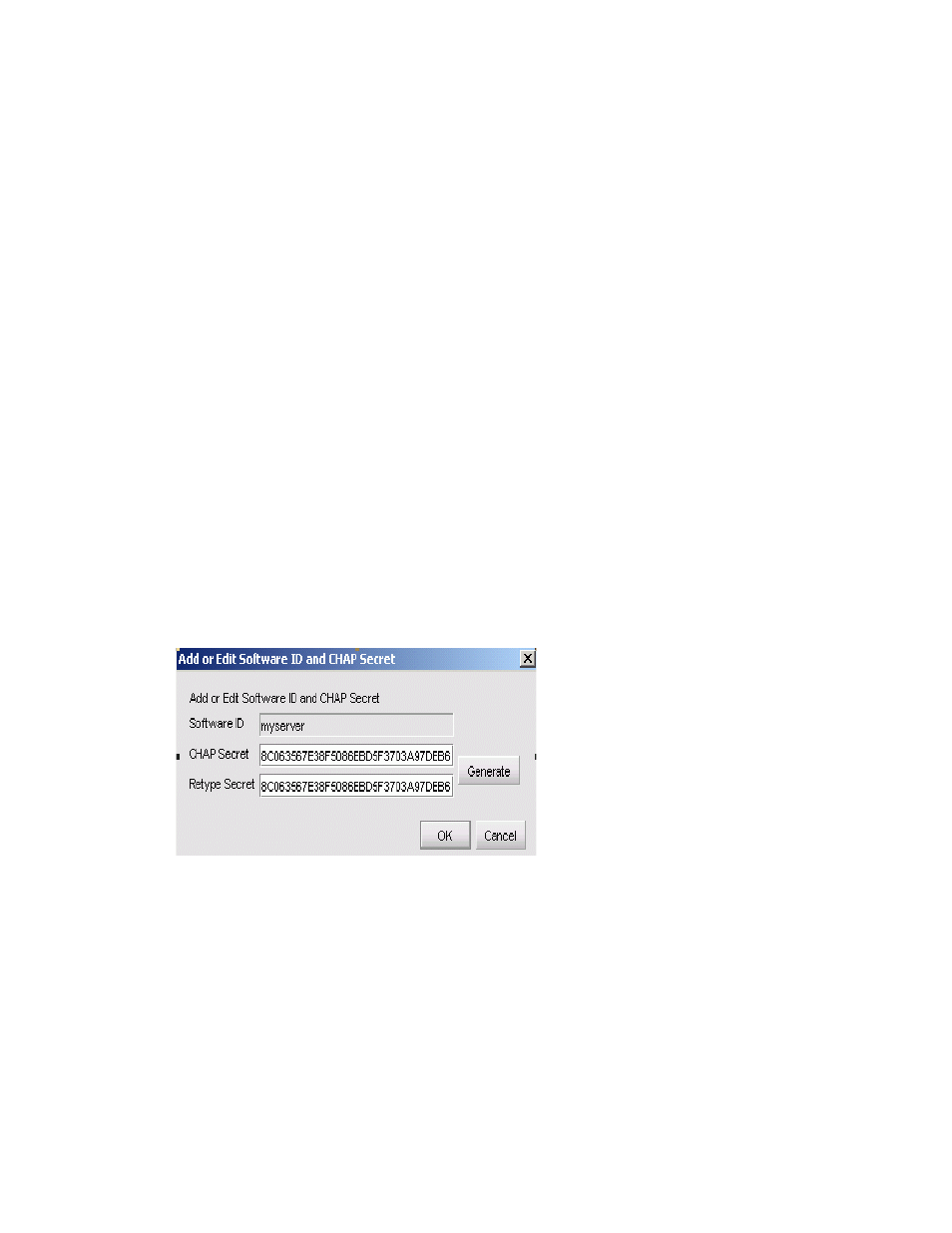

Figure 93 Add or Edit Software ID and CHAP Secret dialog box
2. Enter a unique Software ID.
3. Click OK.
The Software tab displays with an asterisk next to the current server ID on the Permitted
Software list.
Editing the CHAP Secret for another HAFM appliance
To edit the CHAP Secret for another HAFM appliance in the Permitted Software list:
