Page 143
HA-Fabric Manager user guide 143
NOTE:
SANtegrity Authentication can also be accessed from any SANtegrity-capable Element
Manager Configure menu by selecting SANtegrity Authentication. Accessing SANtegrity
Authentication from the Element Manager lets you manage only one device at a time.

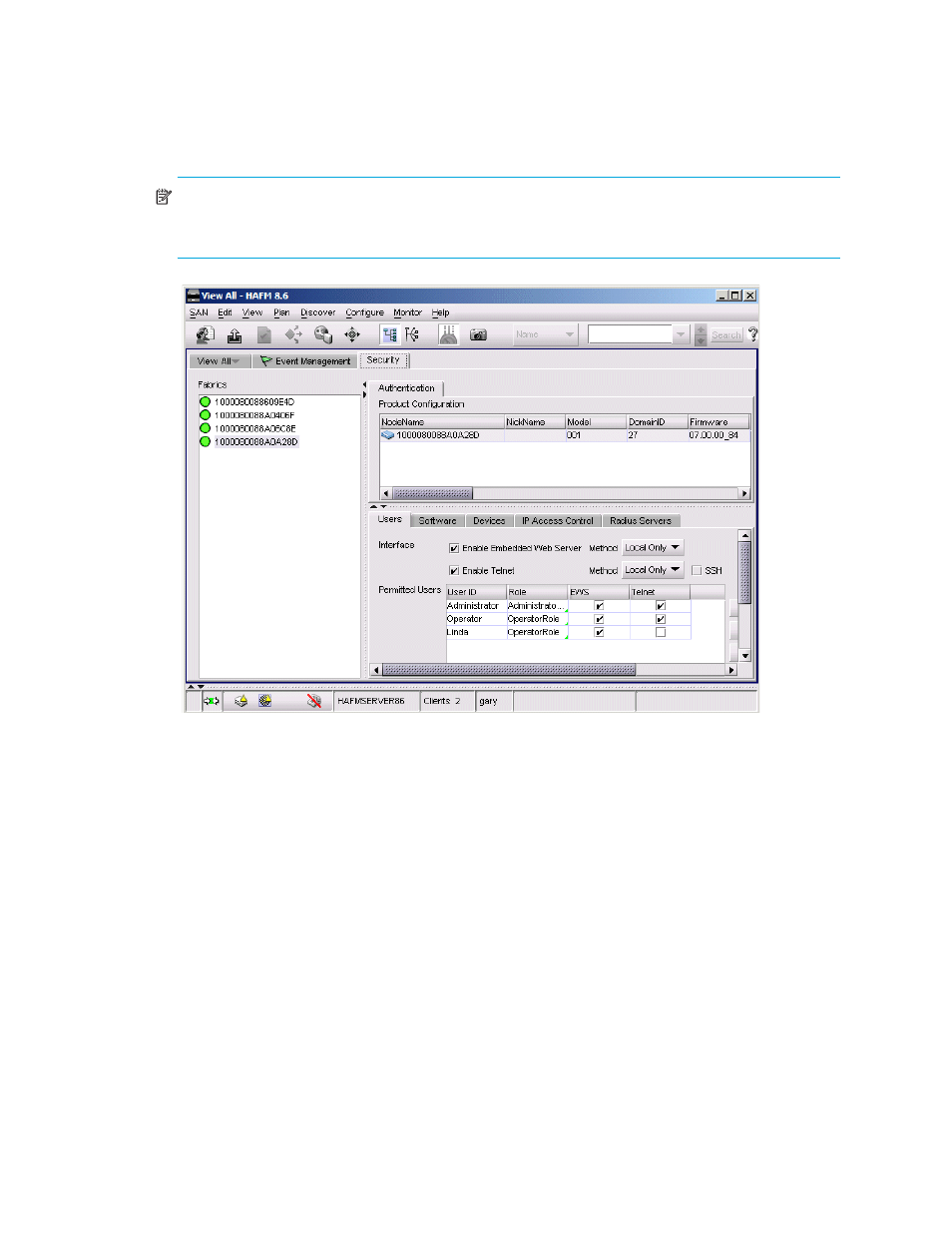

Figure 87
Main window with Security tab
Displaying the Fabrics list
The Fabrics list displays all discovered fabrics listed by their WWNs with their operational status on
the left side if the status is available. When a fabric is selected from the left side, all switches within
the fabric are displayed in the top table. This includes devices not managed by this HAFM
appliance and offline devices.
Although all devices display, only HP products managed by the HAFM appliance can be
configured. These products display with their corresponding product icon. These are the same icons
shown on the topology map.
If an HP product is not managed by the HAFM appliance, the product displays a generic icon. If the
product is offline, a customized product icon displays with a unknown operations status icon.
