Panel testing, 4 panel testing – HP S2231 21.5-inch Diagonal LCD Monitor User Manual
Page 21
PIN
Signal
1 Red
Signal
2 Green
Signal
3 Blue
Signal
4 Ground
5 Cable
testing
6 Red
Signal
Ground
7
Green Signal Ground
8
Blue Signal Ground
9 5
VDC
10 Null
11 Ground
12
SDA (for DDC)
13 Horizontal
synchronization
14 Vertical
synchronization
15
SCL (for DDC)

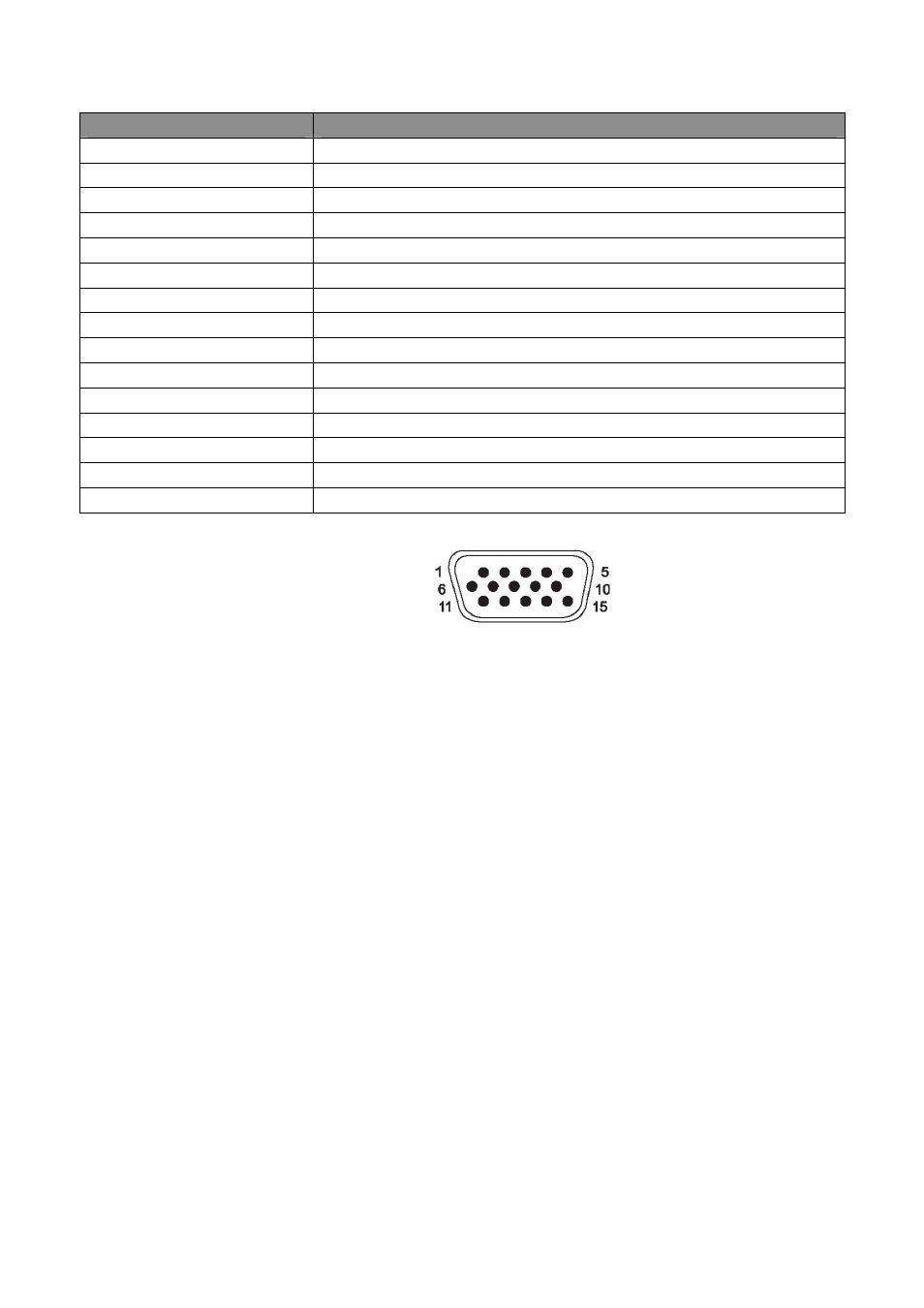

VGA Interface
5.4 Panel testing
The ratio of valid pixels on each LCD screen reaches 99.99% or higher. However, less than 0.01% of the
pixels may cause dark dots displayed on the screen.
19
