Hardware options installation 28

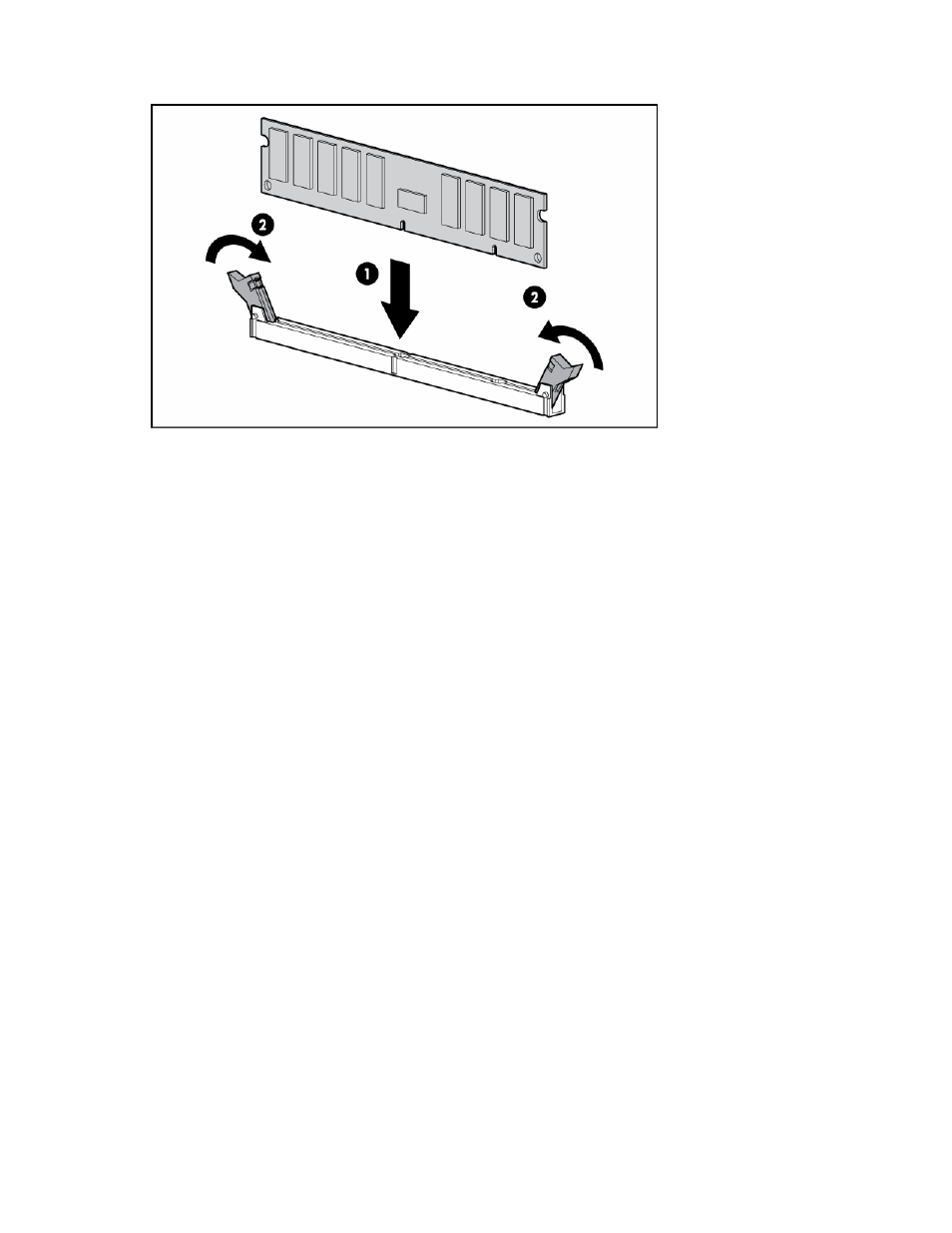

6. Install the DIMM.
7. Install the air baffles.
8. Install the access panel (on page 14 ).
9. Install the server blade (" Installing a server blade " on page 16 ).
Mezzanine card option
Optional mezzanine cards are classified as Type I mezzanine cards and Type II mezzanine cards. The
card type determines where it can be installed in the server blade.
• Install Type I mezzanine cards on either mezzanine 1 connector or mezzanine 2 connector.
• Install Type II mezzanine cards only on mezzanine 2 connector.
Optional mezzanine cards enable network connectivity and provide Fibre Channel support. For
mezzanine card locations, see the system board components (on page 9 ).
For mezzanine card signal mapping, see the HP ProLiant BL465c Generation 5 Server Blade Installation
Instructions that ship with this server blade.
To install the component:
1. Power down the server blade (on page 12 ).
2. Remove the server blade (on page 13 ).
3. Remove the access panel (on page 13 ).
