Using the Fabrics View
105 High Availability Fabric Manager User Guide
Properties
Displays the Fabric Properties dialog box.

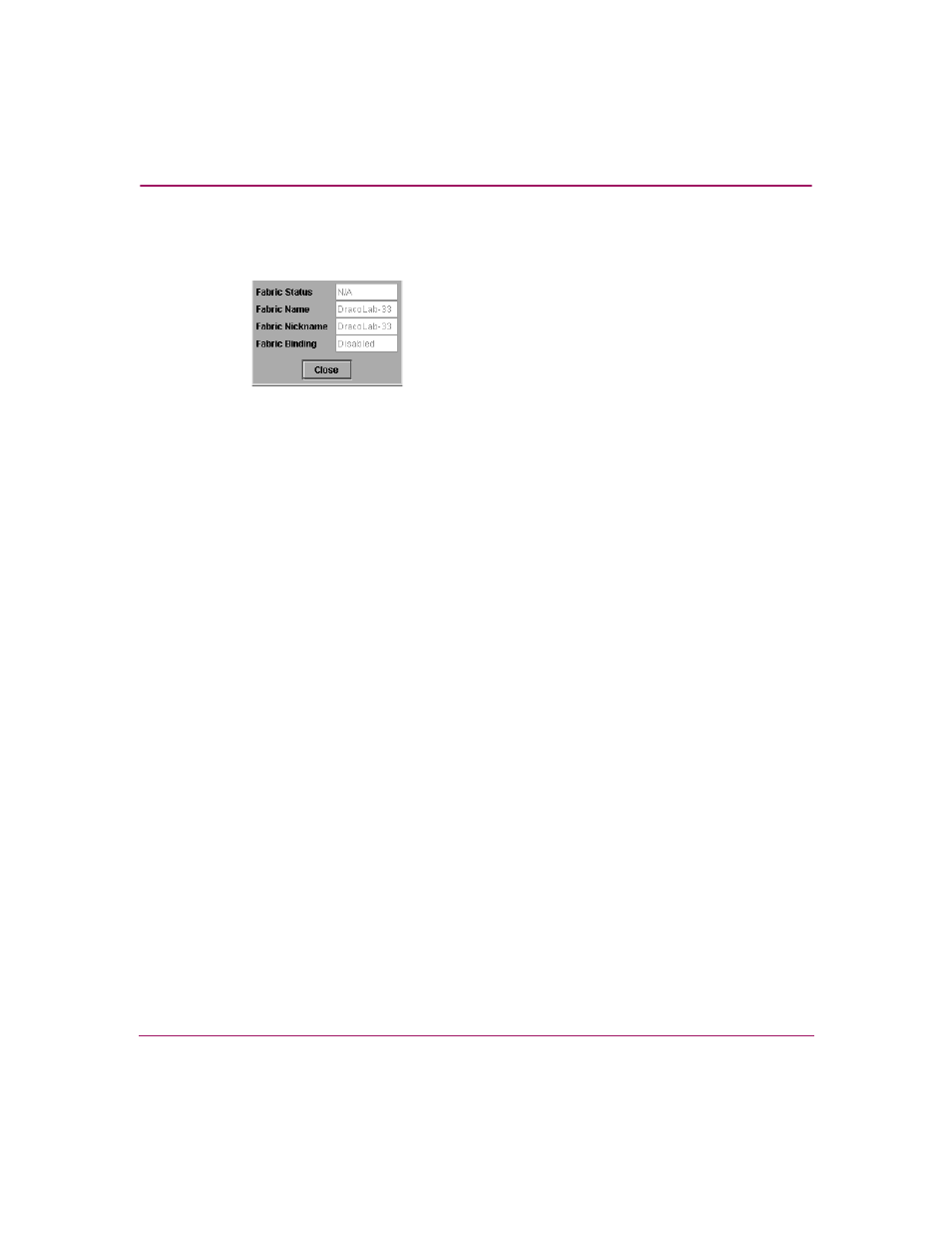

Figure 49: Fabric Properties dialog box
This dialog box displays current information on the selected fabric including:
■ Fabric Status — For persisted fabrics only, this is the status also reflected by
the status symbol by fabric name in the Fabric Tree. Refer to the “Fabric”
heading under “
Status Icons ” on page 103 for details.
■ Fabric Name — This is the name assigned to the principal switch in the
fabric, if configured through the Configure Nicknames dialog box. If the
fabric is persisted, this is the name assigned in the Persist Fabric dialog box.
■ Fabric Nickname — This is the nickname of the fabric’s principal switch if
assigned through the Configure Nicknames dialog box.
■ Fabric Binding — This field identifies whether or not Fabric Binding is
enabled or disabled for the selected fabric. For more information about Fabric
Binding, see “
SANtegrity Features ” on page 182.
