Page 33
Status
Item / Description
Green = Network activity
Flashing green = Network activity
Off = No network activity
3. NIC/iLO 3 activity LED
Green = Network link
Off = No network link
4. NIC/iLO 3 link LED
HP X1800sb G2 Network Storage Blade hardware components
The following figures show components and LEDs located on the front panel of the X1800sb G2
Network Storage System.

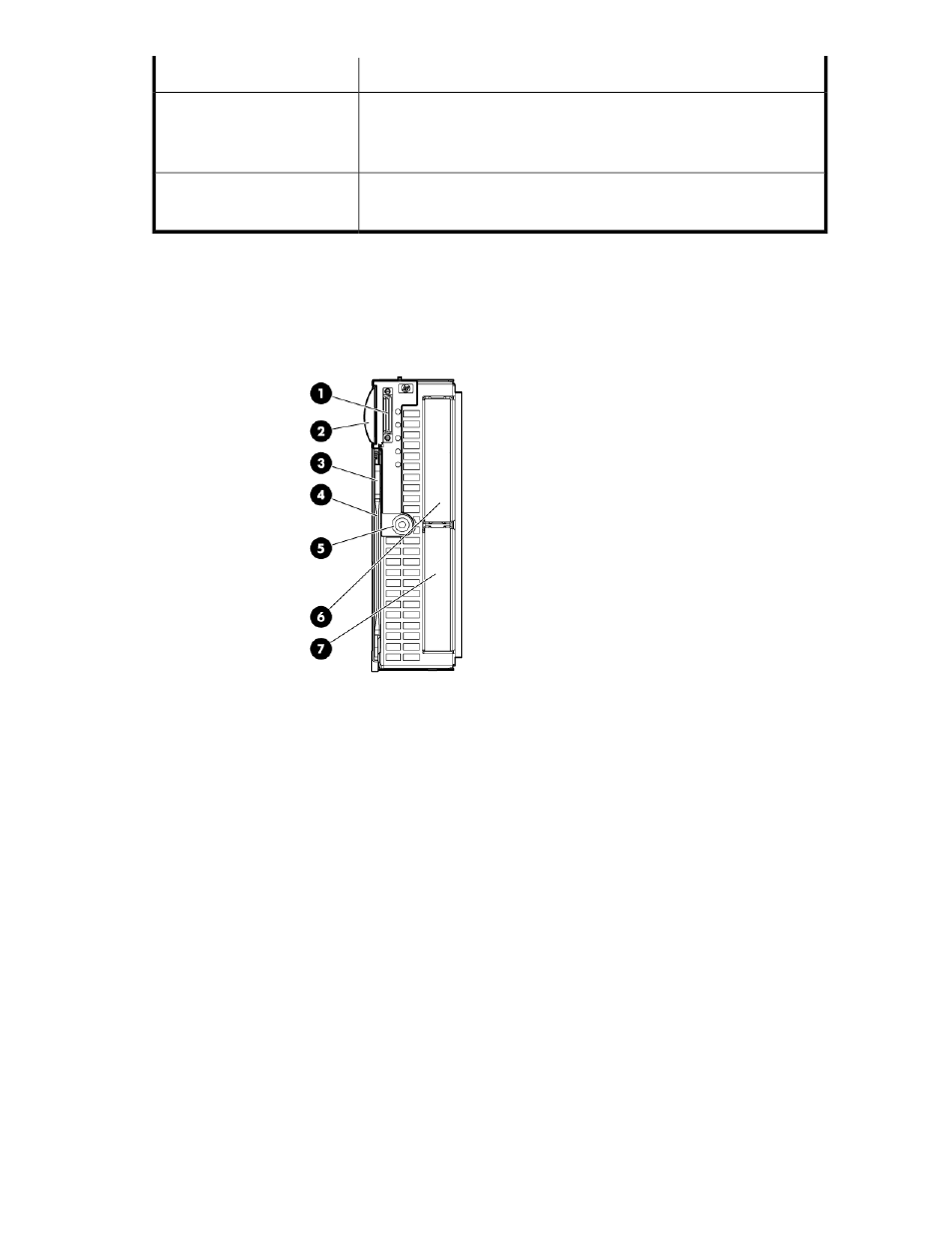

Figure 16 HP X1800sb G2 front panel components
.
1.
SUV connector
2.
Serial label pull tab
3.
Release button
4.
Server blade release lever
5.
Power On / Standby button
6.
Hard drive bay 1
7.
Hard drive bay 2
X1000 G2 Network Storage System User Guide
33
