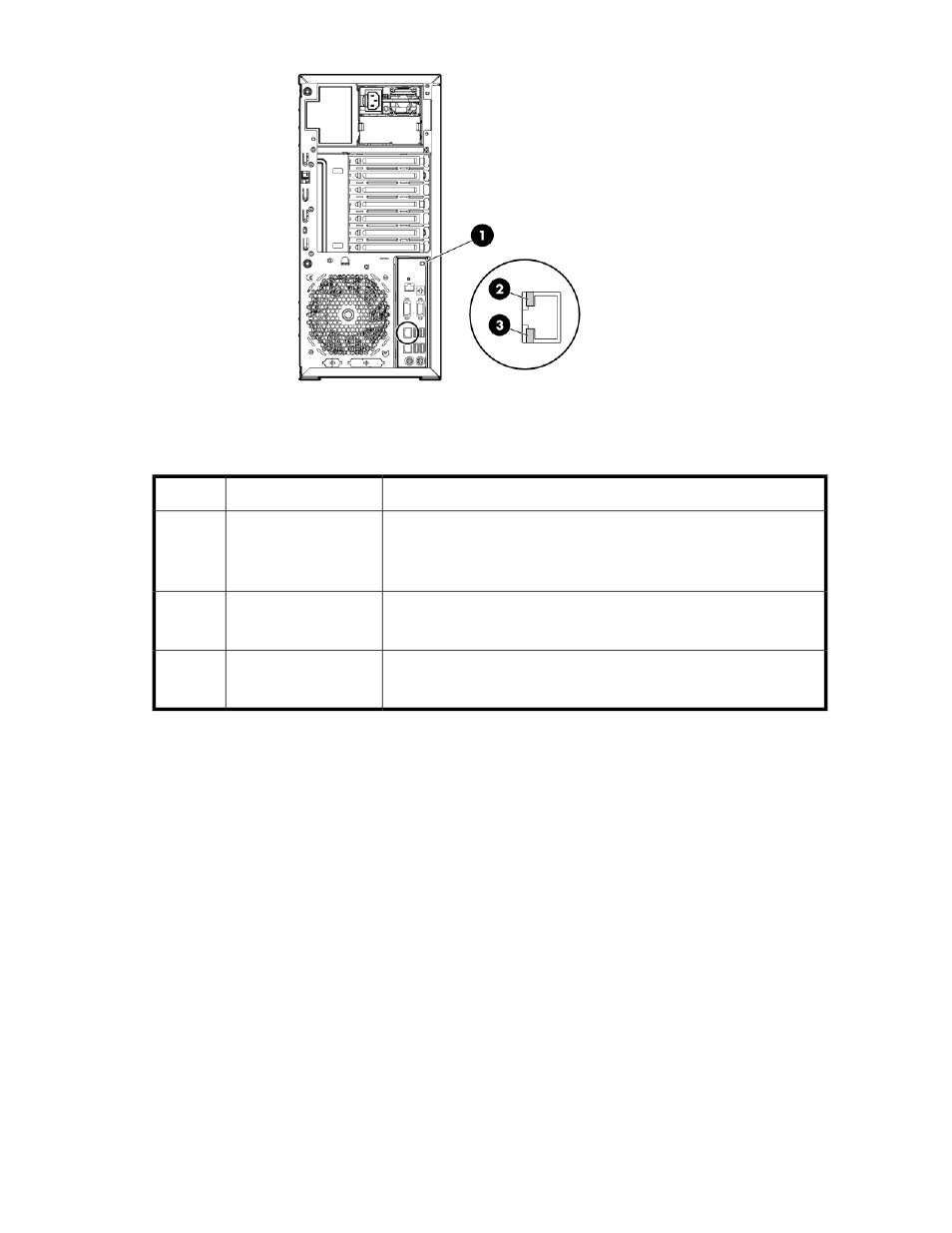

Figure 9 HP X1500 G2 rear panel LEDs and buttons
.
Table 5 HP X1500 G2 rear panel LEDs and buttons descriptions
Status Description Item
Blue = Activated
Flashing = System is being managed remotely.
Off = Deactivated
UID button/LED 1
Green or flashing green = Activity exists.
Off = No activity exists.
NIC/iLO 2 activity 2
Green = Link exists.
Off = No link exists.
NIC/iLO 2 link 3
HP X1600 G2 Network Storage System hardware components
The following figures show components and LEDs located on the front and rear panels of the HP
X1600 G2 Network Storage System.
