1. Power cord connector
2. Mouse connector
3. 10/100/1000 NIC 1 connector/shared iLO 2 management port
4. 10/100/1000 NIC 2 connector
5. Serial connector
6. Low profile PCIe slot cover (x16 slot open)
7. Full-sized PCIe slot (occupied by Smart Array P212 controller)
8. Dedicated iLO 2 management port (this port is optional and must be purchased separately)
9. Video connector
10. USB connectors (2)
11. Keyboard connector

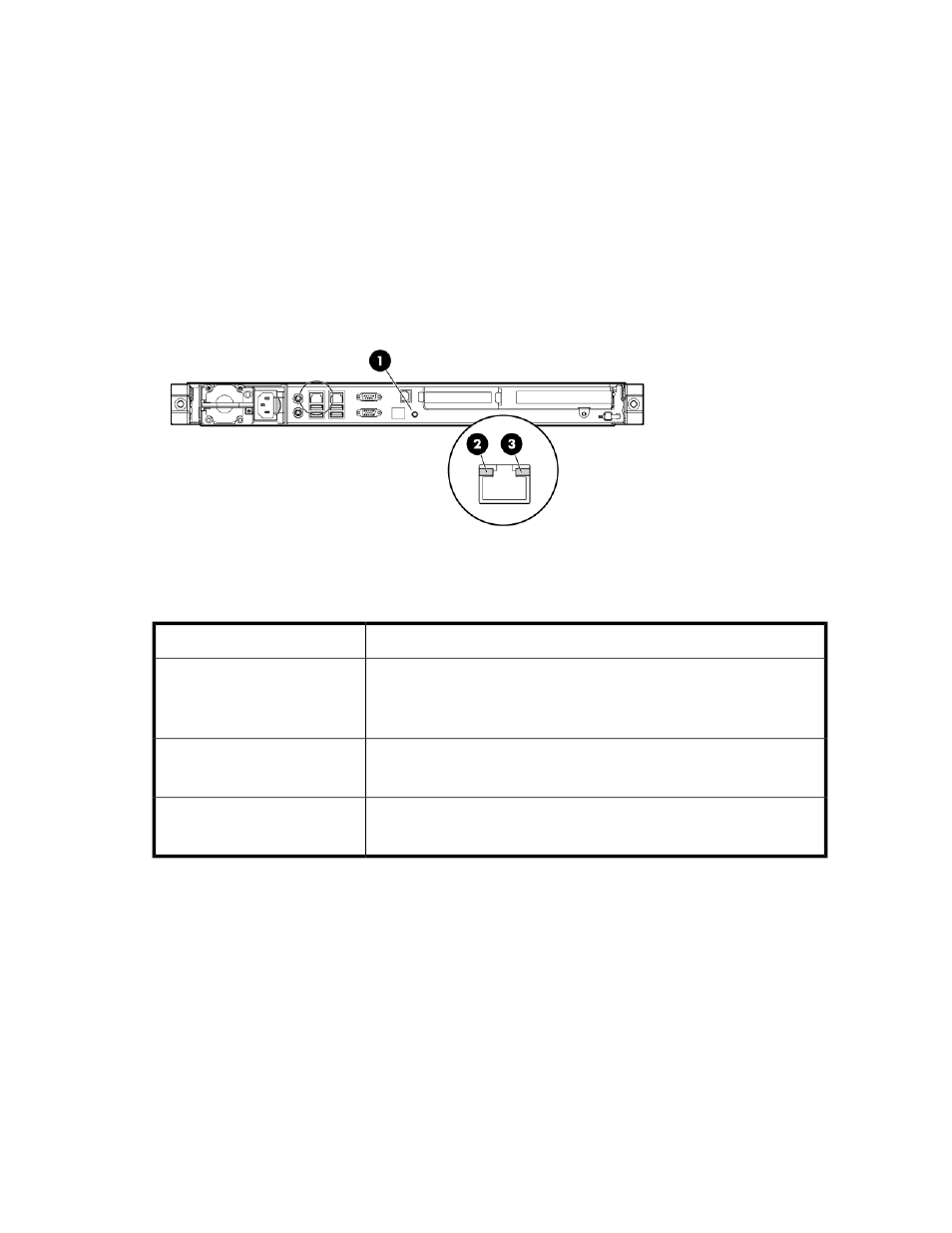

Figure 4 HP X1400 G2 rear panel LEDs
.
Table 3 HP X1400 G2 rear panel LED descriptions
Status Item / Description
Blue = Activated
Flashing = System is being managed remotely.
Off = Deactivated
1. UID button/LED
Green or flashing green = Activity exists.
Off = No activity exists.
2. NIC/iLO 2 link
Green = Link exists.
Off = No link exists.
3. NIC/iLO 2 activity
HP X1500 G2 Network Storage System hardware components
The following figures show components and LEDs located on the front and rear panels of the X1500
G2 Network Storage System.
