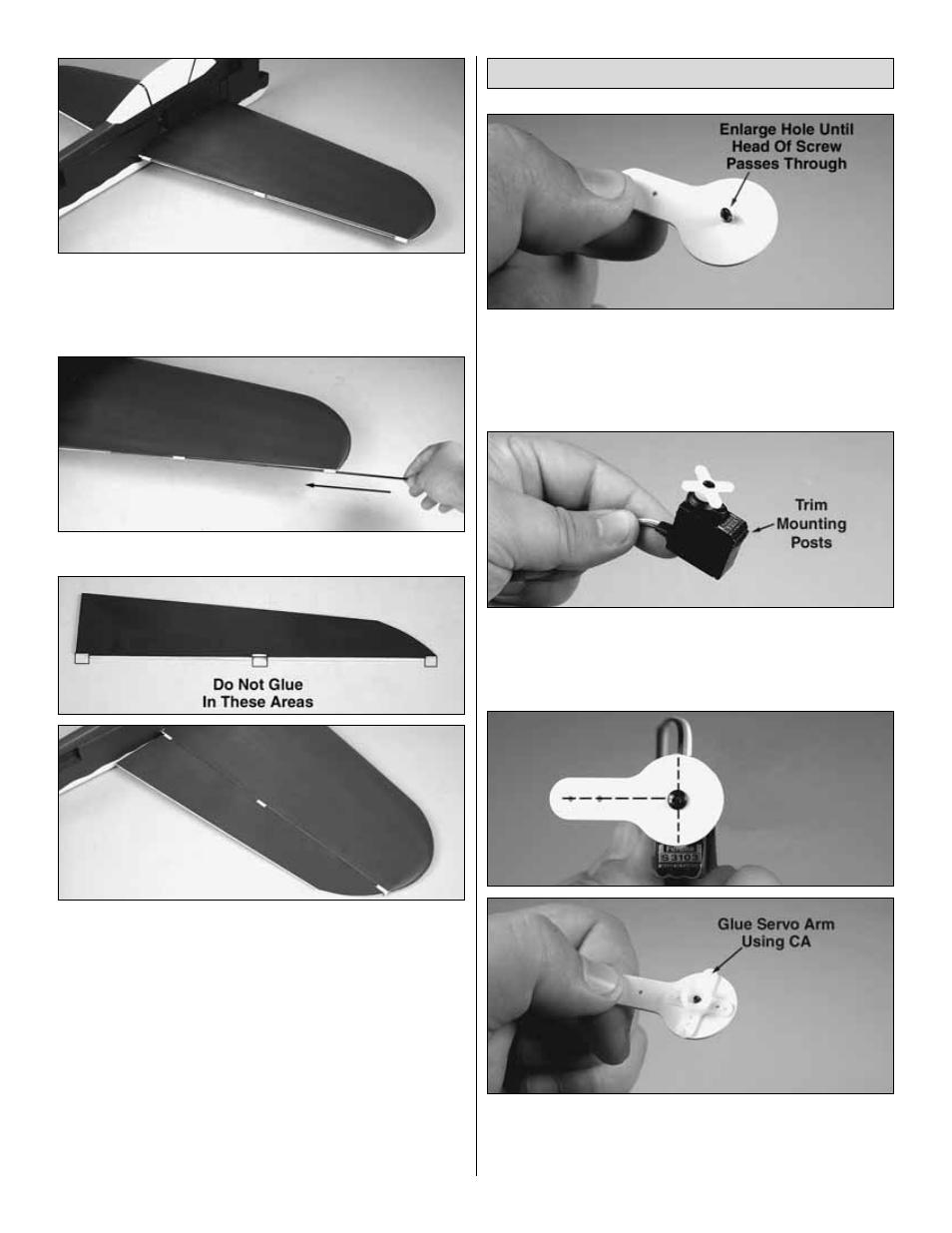

2. Test fit one of the wing hinges in the wing. The outer
bearing should be flush with the wing tip. When satisfied with
the fit, epoxy the hinge in place. Be careful to avoid getting
epoxy into the open bearings.
❏ ❏
3. Slide the loose carbon rod through the bearings.
❏ ❏
4. Test fit an aileron onto the carbon rod as shown. If
satisfied with the fit, glue the aileron to the carbon rod using
CA. DO NOT glue the aileron to the bearings. The rod must
freely rotate in the bearings, so the aileron must only be
glued to the carbon rod.
❏
1. Remove the screws and servo arms from all of your
servos. Enlarge the hole in the center of the extender until
the head of the servo screw fits through.
❏
2. Trim the mounting posts off of the servo as shown in
the photo.
❏
3. Place the original servo arm over the screw, and glue the
top of the arm to the extender with CA. Some servo arms have
small flanges projecting from the top. If your servo arms have
these flanges, sand them off before gluing.
Install the Servos
9
