25
support either an S-video connector or a Composite
connector. If your TV has cable input only, you can
connect your card to your TV through your VCR or
an RF modulator (available in most electronics
stores).
The RADEON 9000 PRO that only has the
Composite out connector DOES NOT support
connection to TVs with S-Video In.
Connecting Your TV Output to a TV or VCR
1 Turn off your PC and your TV (or VCR).
2 Determine if your TV (or VCR) has an S-Video
In or Composite In connection.
3 The TV Output on your card will be an S-Video
connector or Composite connector. Please attach
an appropriate cable to the TV Output on your
card (S-Video or Composite). Attach the other
end of the cable to your TV (or VCR). Refer to

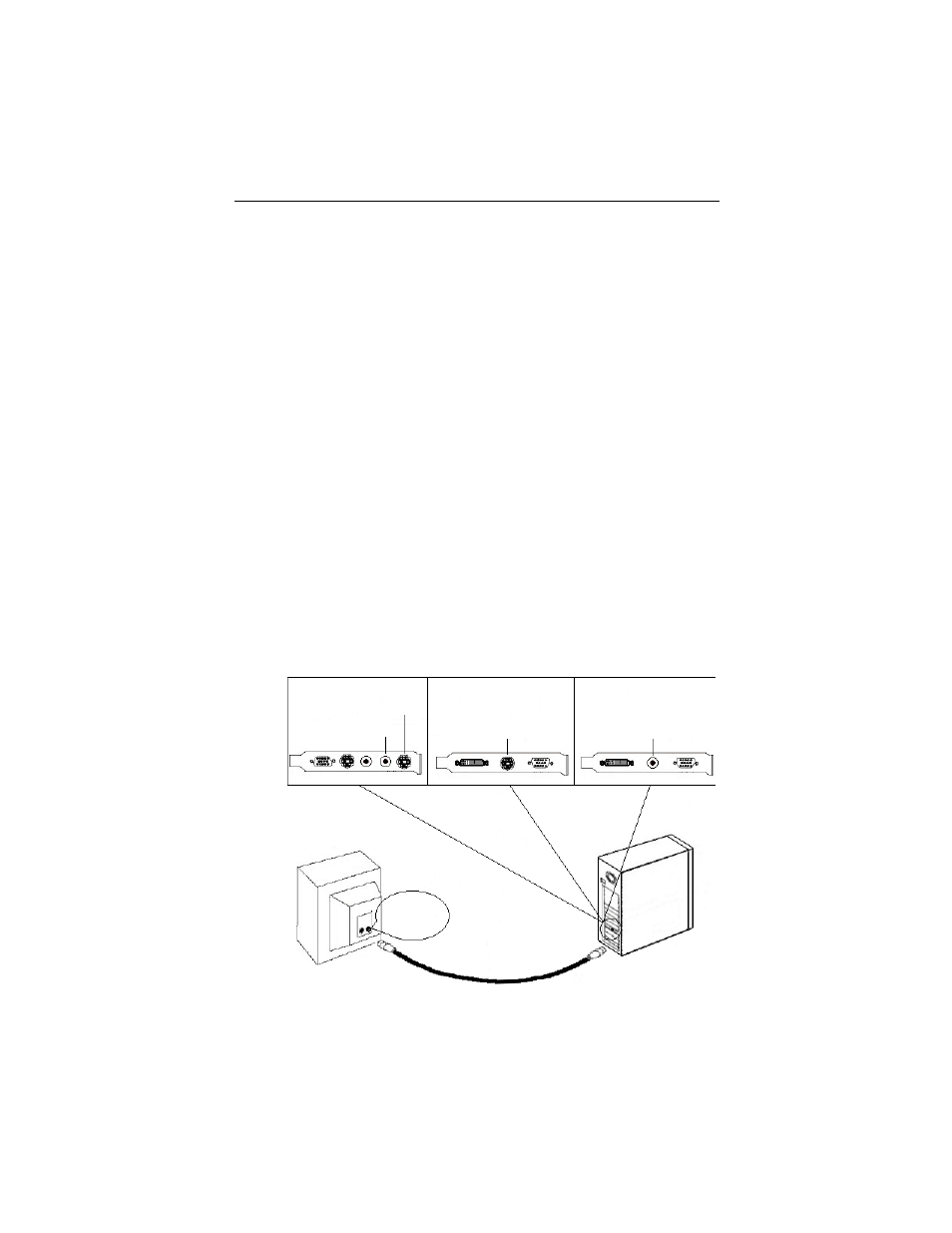

the illustration for further help.
4 Turn on your PC and your TV (or VCR).
S-Video Out
TV or VCR
PC
S-Video In
OR
Composite In
S-Video Cable or
OR
S-Video-to-Composite Adapter
NOTE: Newer TVs may have
the Video Input on the front
panel
Composite Out
Composite Cable
S-Video Out
Composite Out
