Optional Features

146

HA-Fabric Manager User Guide

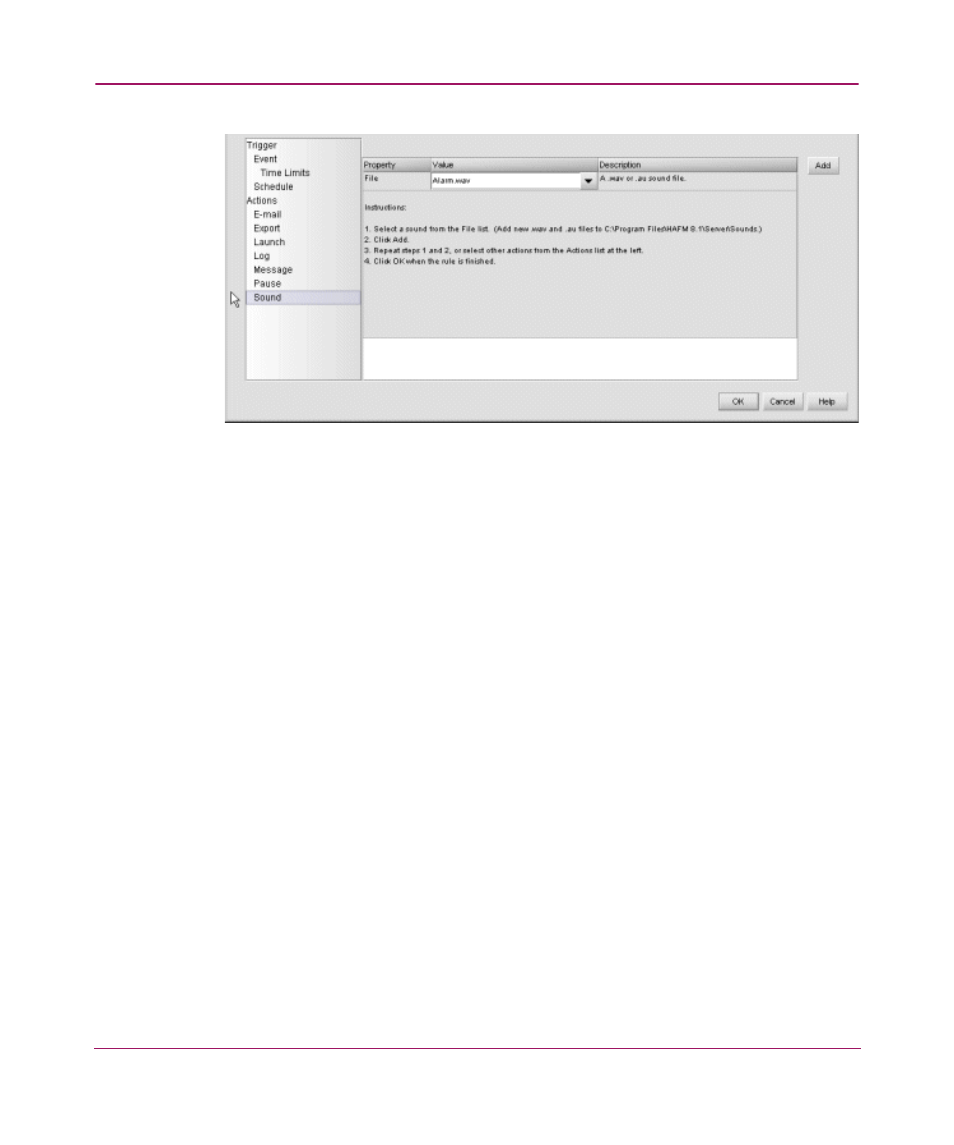

Figure 79: Add Rule dialog box (Sound)

4. Choose a sound from the File parameter’s value. You can add sounds to this

list by posting sound files to

\Server\Sounds\

.

5. Click Add.

Editing a Rule

1. Click the Event Management tab on the main window. The Event

Management tab displays, as shown in

Figure 69

on page 133.

2. Choose the rule you want to edit from the Rules table.

3. Click Edit. The Edit Rule dialog box displays.

4. Edit the rule as desired.

5. Click OK.

Copying a Rule

1. Click the Event Management tab on the main window. The Event

Management tab displays, as shown in

Figure 69

on page 133.

2. Choose the rule you want to copy from the Rules table.

3. Click Copy. A copy of the selected rule is assigned a new rule number.
