Status Description Item
Off = Not linked to network
Green or flashing = Network activity
10/100/1000 NIC activity LED 17
Off = No network activity
Green = Linked to network
10/100/1000 NIC link LED 18
Off = Not linked to network
SAS and SATA hard drive LEDs
The following figure shows SAS/SATA hard drive LEDs. These LEDs are located on all HP All-in-One
hot plug hard drives.

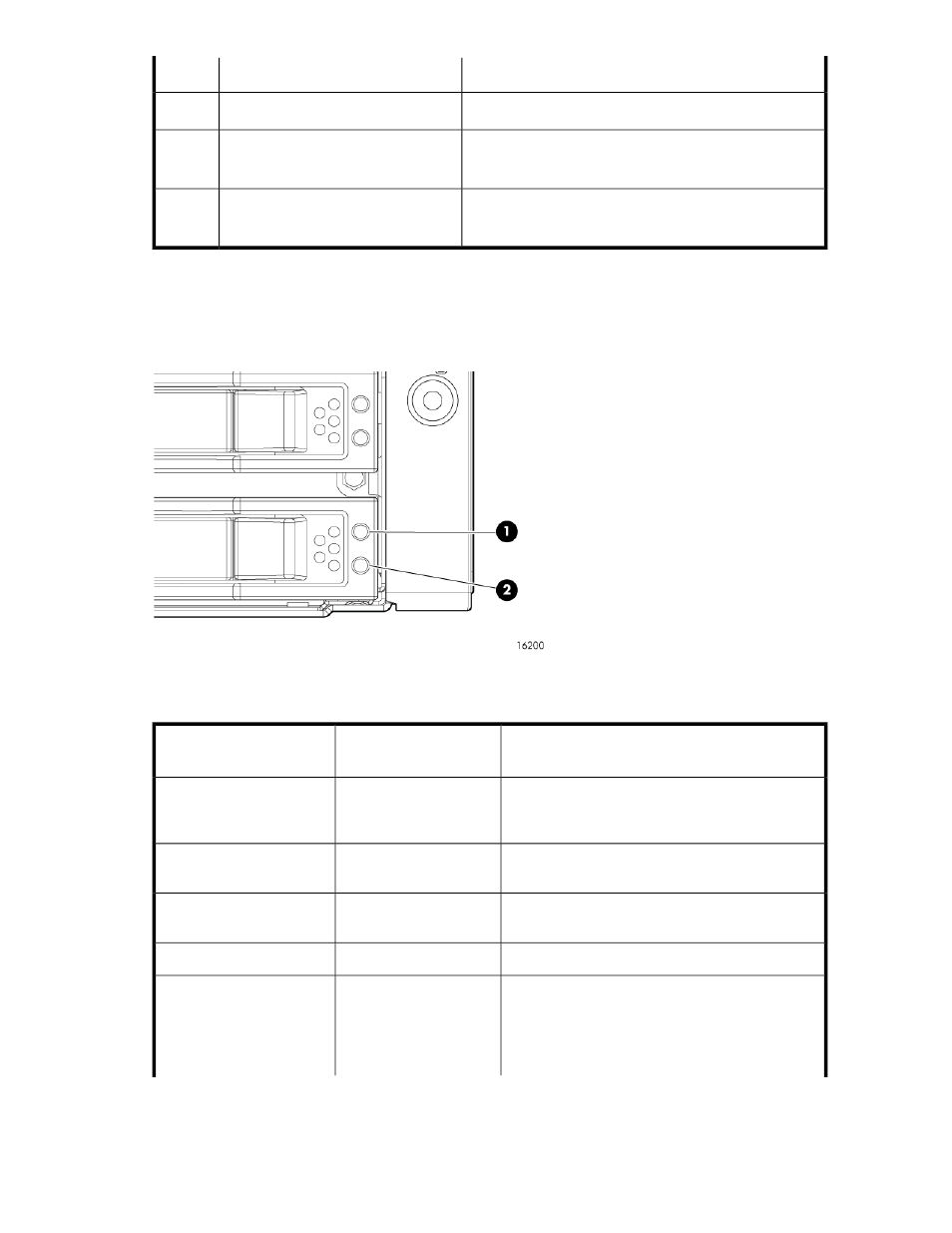

Figure 9 SAS/SATA hard drive LEDs
Table 13 SAS and SATA hard drive LED combinations
Status 2. Online/activity LED
(green) 1. Fault/UID LED
(amber/blue)
The drive has failed, or a predictive failure alert has
been received for this drive; it also has been selected
by a management application.
On, off, or flashing Alternating amber and blue
The drive is operating normally, and it has been
selected by a management application.
On, off, or flashing Steadily blue
A predictive failure alert has been received for this
drive. Replace the drive as soon as possible.
On
Amber, flashing regularly (1
Hz)
The drive is online, but it is not active currently. On Off
Do not remove the drive. Removing a drive may
terminate the current operation and cause data loss.
Flashing regularly (1 Hz)
Amber, flashing regularly (1
Hz)
The drive is part of an array that is undergoing
capacity expansion or stripe migration, but a
predictive failure alert has been received for this
