3.

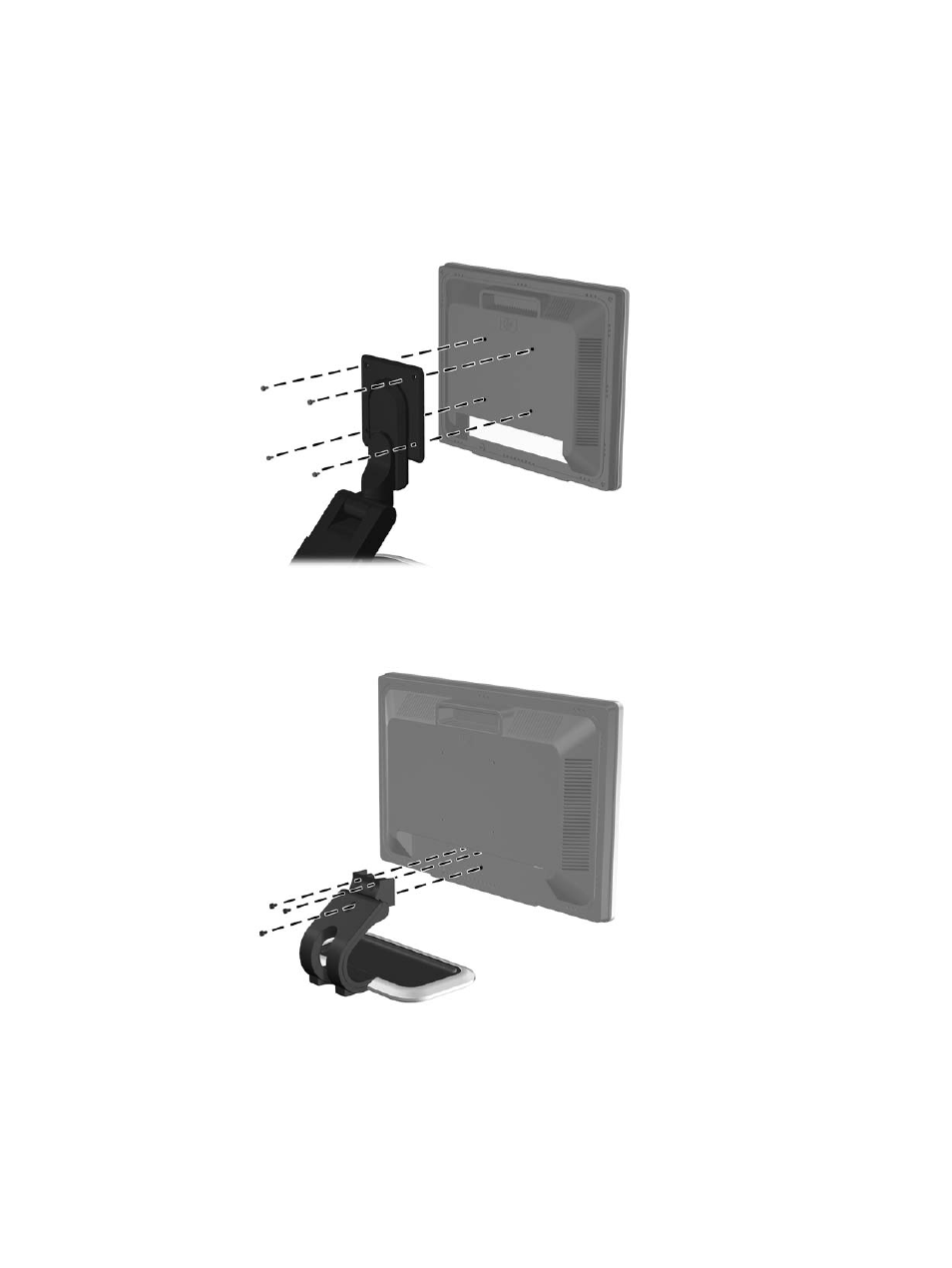

Remove the screws on the back of the monitor that connect the monitor panel with the pedestal
base.

a.

On the double-hinged base, there are four screws that connect the monitor panel to the
pedestal base.

Figure 3-16

Removing the Double-Hinged Pedestal Base

b.

On the single-hinged base, there are three screws that connect the monitor panel to the
pedestal base.

Figure 3-17

Removing the Single-Hinged Pedestal Base

4.

Lift up on the pedestal base to remove it from the monitor display head.

Removing the Monitor Pedestal Base

17
