Operating the Tape Drive
M8609A Tabletop Tape Drive Installation and User’s Guide— 546013-001
3 -7
Ultrium Cartridges
Ultrium Cartridges
Apply Cartridge Labels
Cartridge labels reflect the cartridge media and usage. If your cartridges were not
ordered with labels already applied, you must apply them yourself.

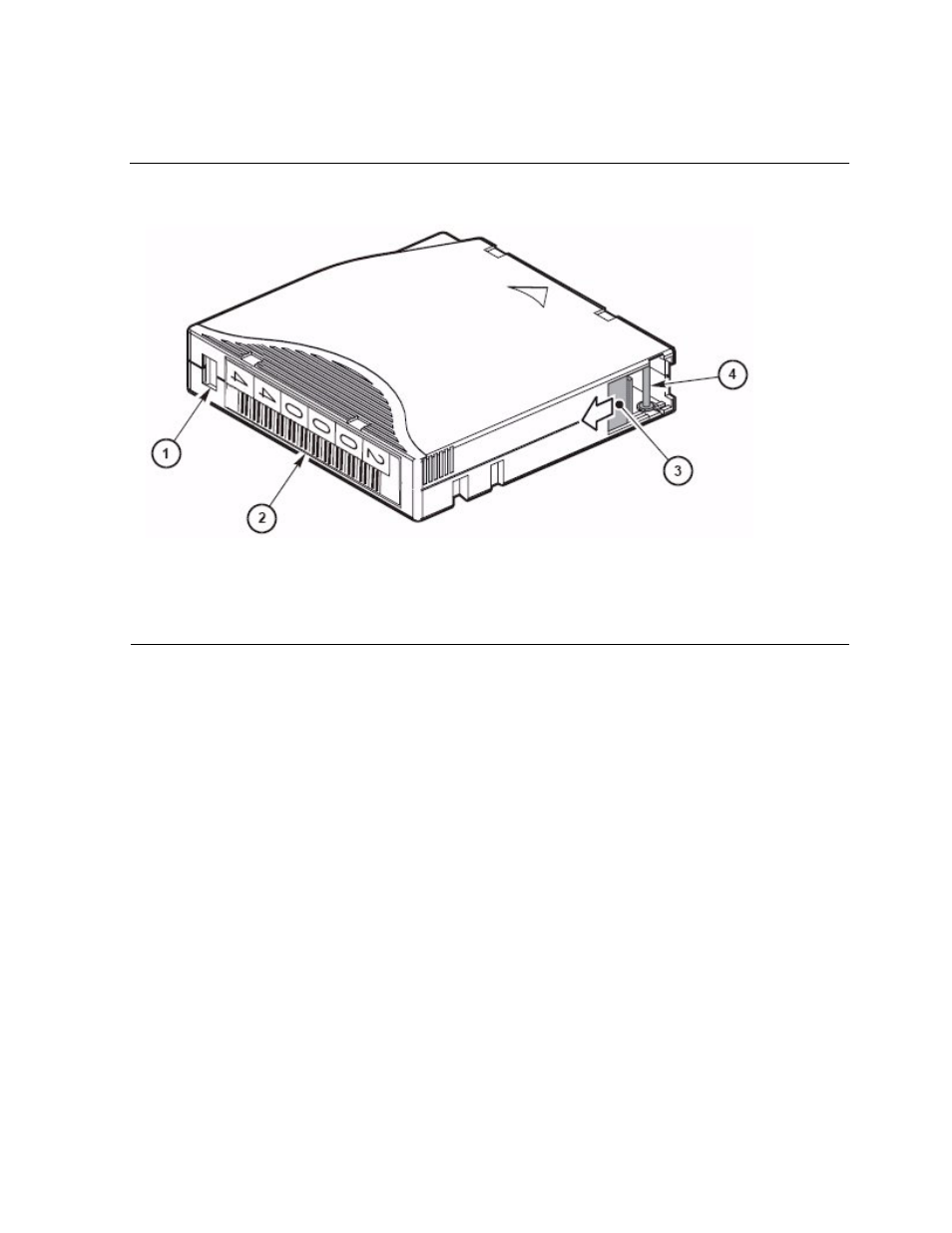

Figure 3-4. Ultrium Cartridge Components
1. Write-protect switch (data cartridge has red switch, cleaning cartridge has gray switch)
2. Volume ID label (barcode to hub side of cartridge)
3. Access door
4. Leader pin
