Pcie riser board option – HP ProLiant SL390s G7 Server User Manual
Page 35

Hardware options installation 35
7.

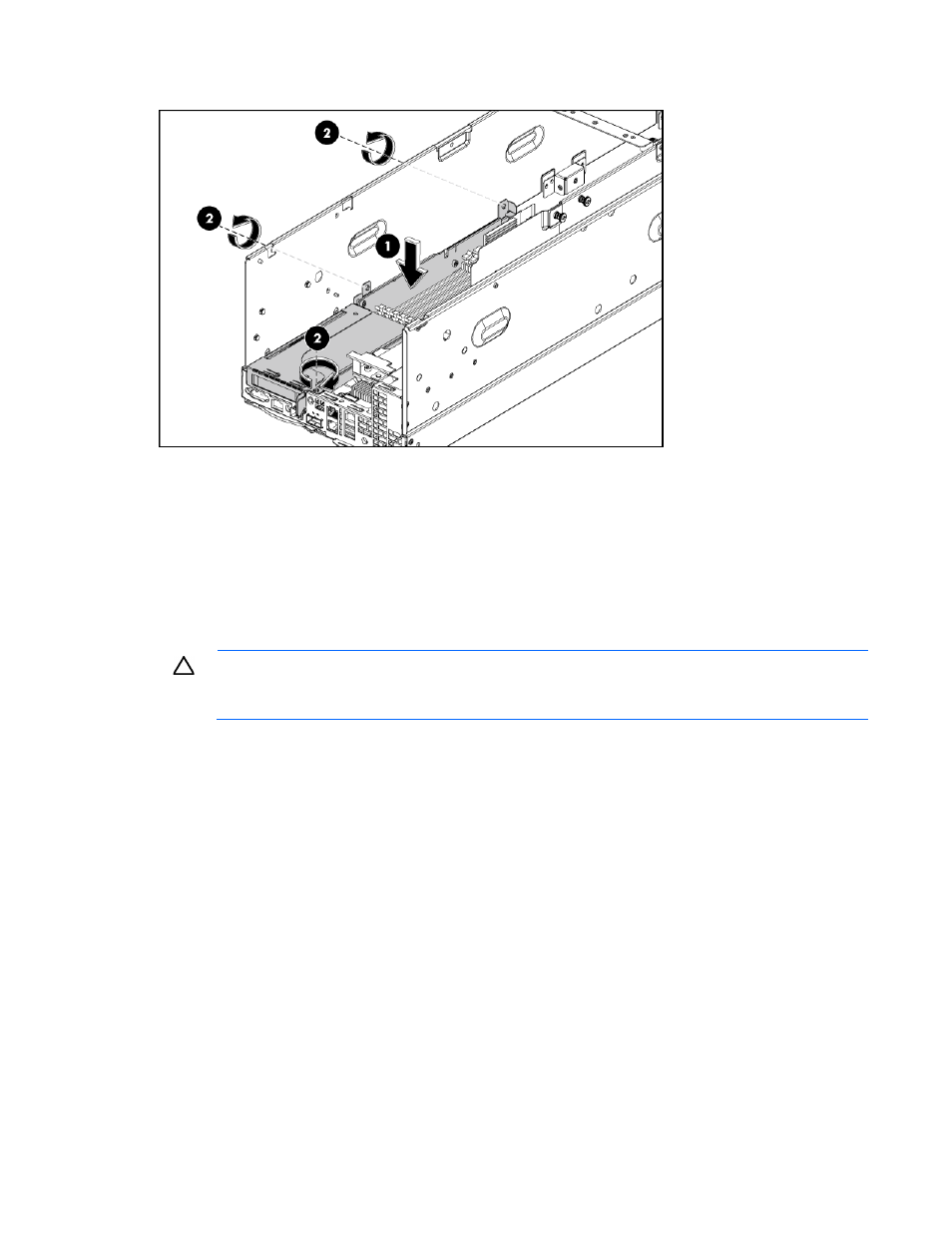

Install the PCI riser cage.
8.
Connect all necessary internal cabling to the expansion board. For more information on these cabling
requirements, see the documentation that ships with the option.
9.
Install the server into the chassis ("
Installing the server into the chassis
" on page
10.
Connect the peripheral devices to the server.
11.
Power up the server ("
Powering up and configuring the server
" on page
PCIe riser board option
CAUTION:
For proper cooling, do not operate the server without the access panel, baffles,
expansion slot covers, or blanks installed. If the server supports hot-plug components, minimize
the amount of time the access panel is open.
To install the component:
1.
Power down the server (on page
2.
Disconnect all peripheral cables from the server.
3.
Remove the server from the chassis ("
Removing the server from the chassis
" on page
4.
Remove the PCI riser cage.
