HA-Fabric Manager user guide 175
NOTE:
SANtegrity Authentication can also be accessed from any SANtegrity-capable Element
Manager by selecting Configure > SANtegrity Authentication. Accessing SANtegrity Authentication
from the Element Manager allows you to manage only one device at a time.

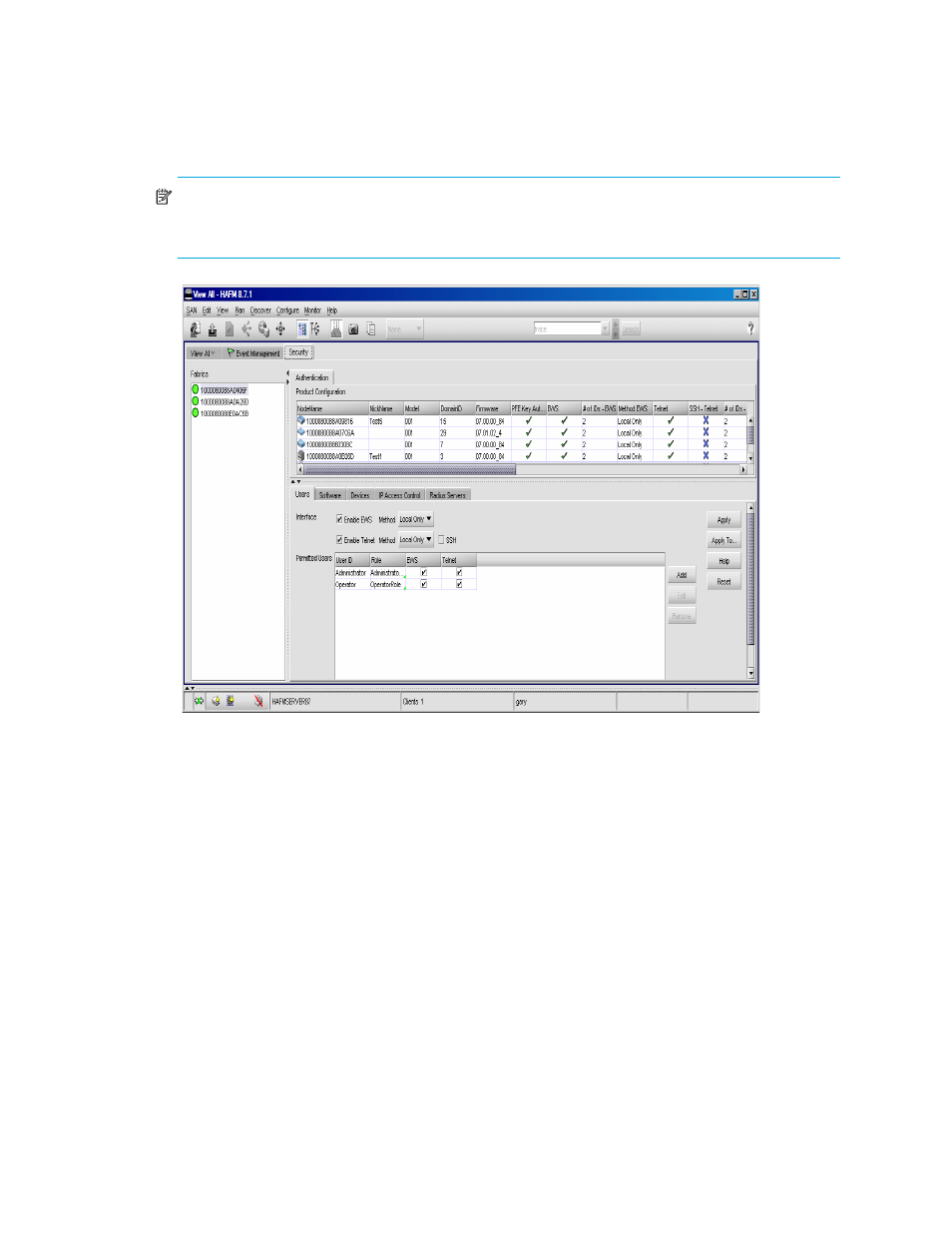

Figure 107
Security Center
Displaying the Fabrics list
The Fabrics list displays all discovered fabrics listed by their WWNs with their operational status
on the left side if the status is available. When a fabric is selected from the left side, all switches
within the fabric are displayed in the top table. This includes devices not managed by this HAFM
appliance and offline devices.
Although all devices display, only HP products managed by the HAFM appliance can be
configured. These products display with their corresponding product icon. These are the same
icons shown on the topology map.
If an HP product is not managed by the HAFM appliance, the product displays a generic icon. If
the product is offline, a customized product icon is displayed with a unknown operations status
icon.
