Hardware options installation 43

3.

Remove the access panel (on page

14

).

4.

Remove the DIMM baffle (on page

14

).

5.

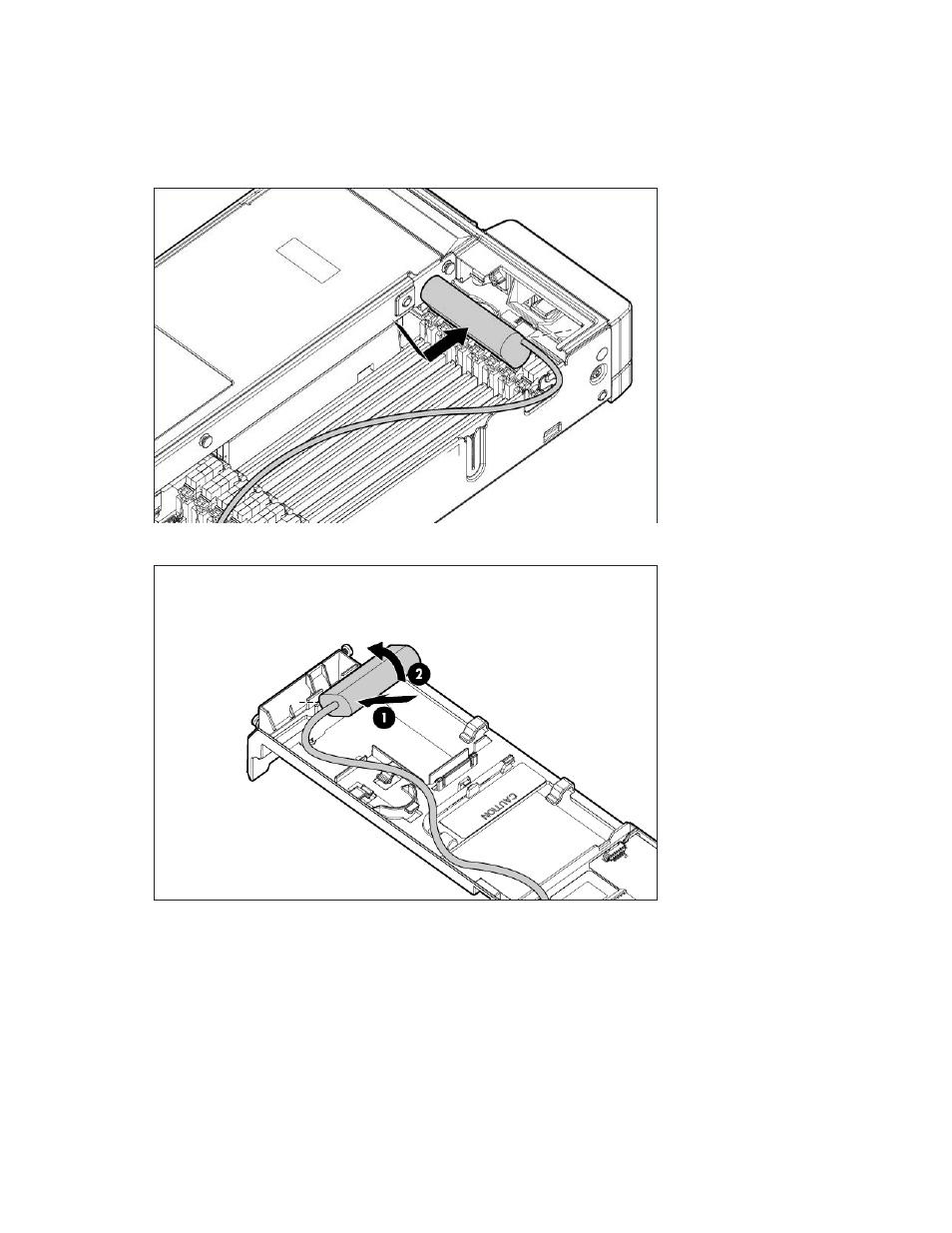

Install the FBWC capacitor pack:

o

FBWC capacitor pack for a mezzanine option

o

FBWC capacitor pack for the SAS controller

6.

Route the FBWC capacitor pack cable. The DIMM baffles may be removed to route the cables, if
necessary.
