ASUS P/I-XP55T2P4 User’s Manual 7
III. INSTALLATION
III. INST
ALLA
TION
(Jumpers)
Jumper Settings
1. Total Level 2 Cache Size Setting (JP14)
This jumper sets the total amount of L2 cache that is present. If you have both
onboard cache chips (see "Map of Motherboard" for locations) and a Cache
Expansion Slot, then you have 256KB. If you only have onboard cache chips,
then you have 512KB. An "ASUS" or "COAST" cache module can be used to
upgrade the 256KB version to 512KB. If there is no onboard cache, you may
install a cache module of either 256KB or 512KB. IMPORTANT: See page
14 "SRAM Cache" for installation procedures. Regardless of your cache
combination, set the following jumpers according to the total amount of L2
cache that is present onboard and installed as a module.
Cache Size JP14
256KB [1-2]
512KB [2-3]

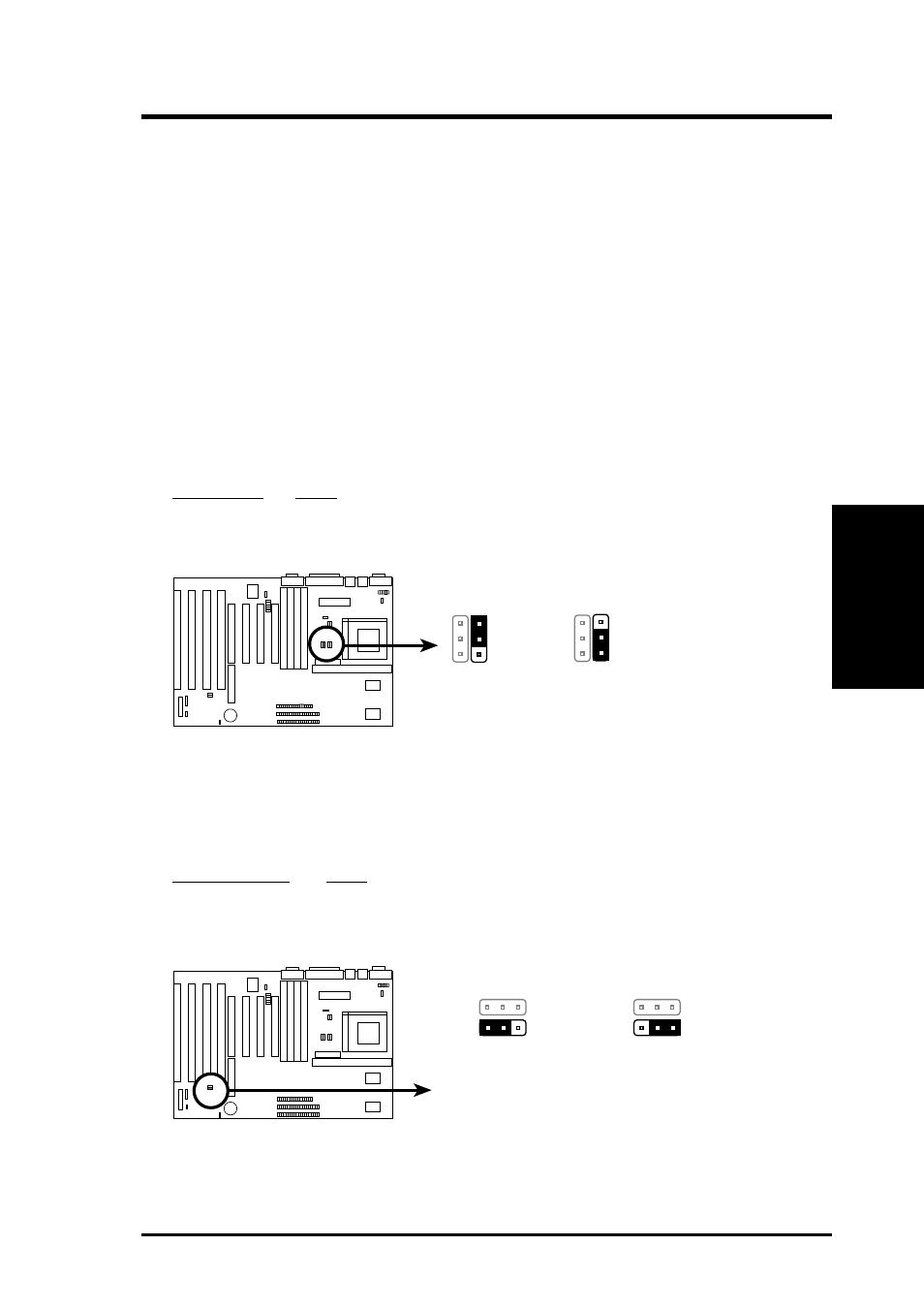

Total L2 Cache Size Setting (256KB / 512KB)
JP14
256KB 512KB
1
2
3
JP14
1
2
3
2. Flash ROM Boot Block Programming (JP18)
This sets the operation mode of the boot block area of the BIOS Flash ROM to
allow programming in the Enabled position.
Programming JP18
Disabled [1-2] (Default)
Enabled [2-3]
Boot Block Programming (Disable / Enable)
Disabled (Default) Enabled
JP18
1 2 3
JP18
1 2 3
