4.6 Configuring Outgoing Calls from BCM50 to AT&T IP Flex Reach
ConfigurationÆ TelephonyÆ Sets Æ All DNs:
We will now associate the private DN number with the DID number. In the
example below; 2000 is entered in the “Private OLI” field and 7323683478 is
entered in the “Public OLI” field. This example enables “calling number
translation” (outgoing) for this particular DN number. See figure below.

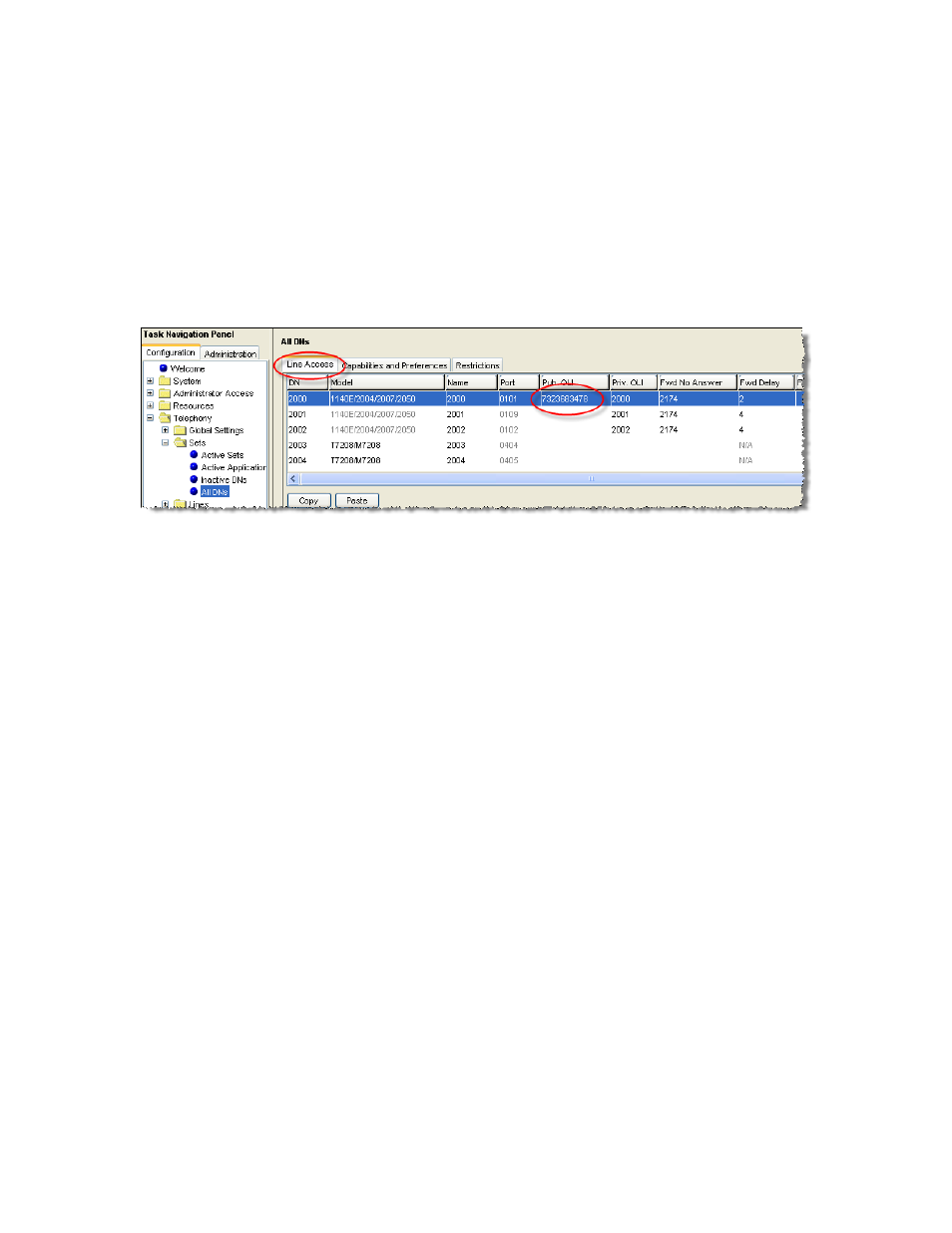

Figure 19: Configuring DID for Outgoing Calls
