Installation
1. ....................................................................................................................Power Cord
2. ..................................................................................................................... VGA Cable
3. ............................................................................................... Composite Video Cable
4. ...................................................................................................................... USB Cable
5. ........................................................................VGA to Component/HDTV Adapter
6. ................................................................................................................ S-Video Cable
7. .................................................................................................Audio Cable Jack/Jack
8. ................................................................................ DVI Cable (Optional Accessory)

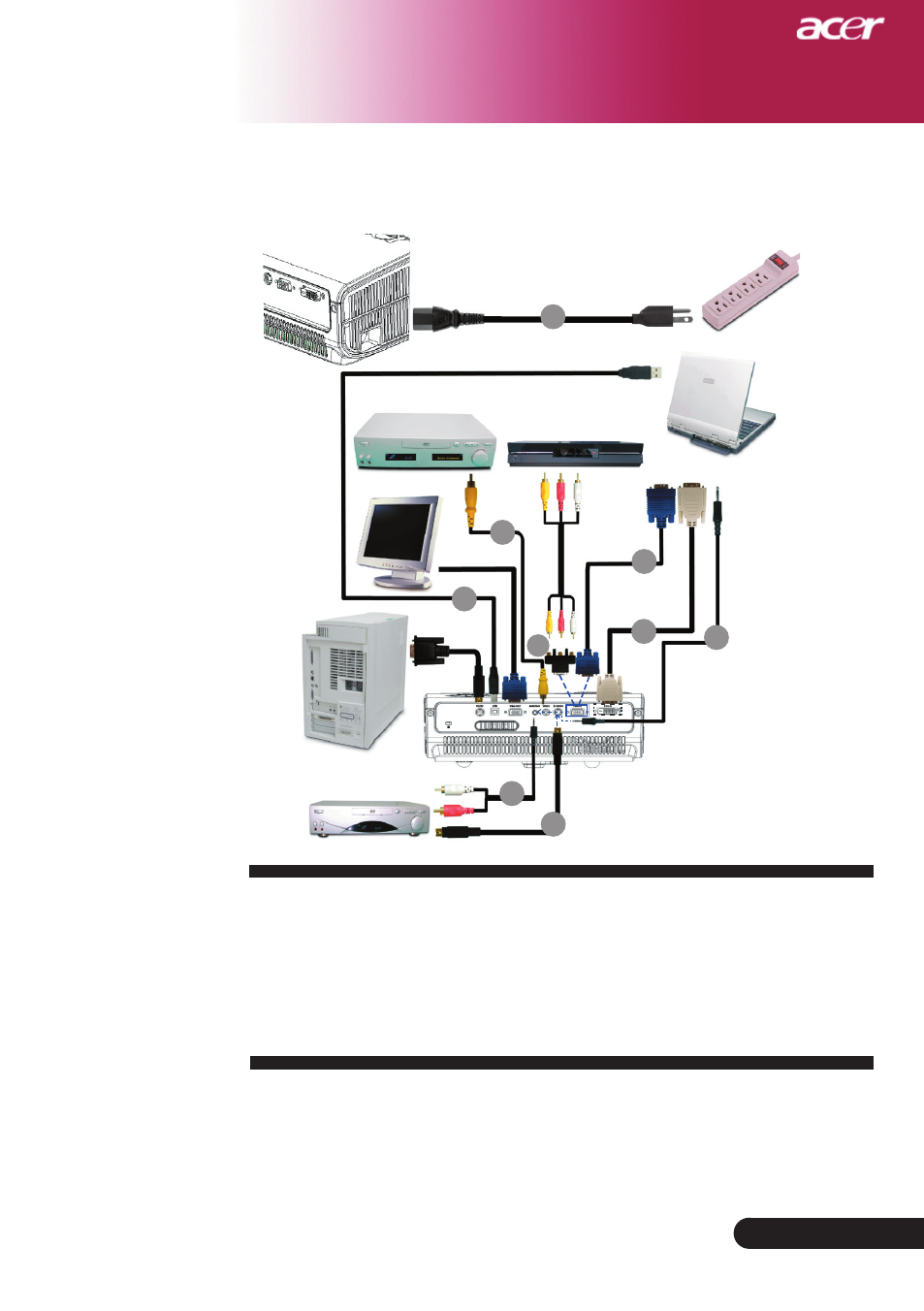

Connecting the Projector
To ensure the projector works well with your computer, please
make sure the timing of the display mode is compatible with the
projector. Refer to the “Compatibility Modes” section on page 49.
Video Output
DVD Player, Settop Box,
HDTV receiver
4
2
3
6
7
DVI
RGB
USB
5
S-Video Output
8
1
RS232
7
