HP LD4730 47-inch Micro-Bezel Video Wall Display - Manual (Page 12)

Associate
User Mode allows users to associate up to 12 displays with any one player and break or Clear any existing
associations of displays to the player. An association may be made either one at a time, or multiple displays
may be associated at the same time.
In User Mode, any available display (with Ready to Connect status) can be chosen to be associated with the
player.
Make an Association One at a Time
A single association is made as follows:
1. Click on the check box of the available (Ready to Connect) display to be associated with this player.

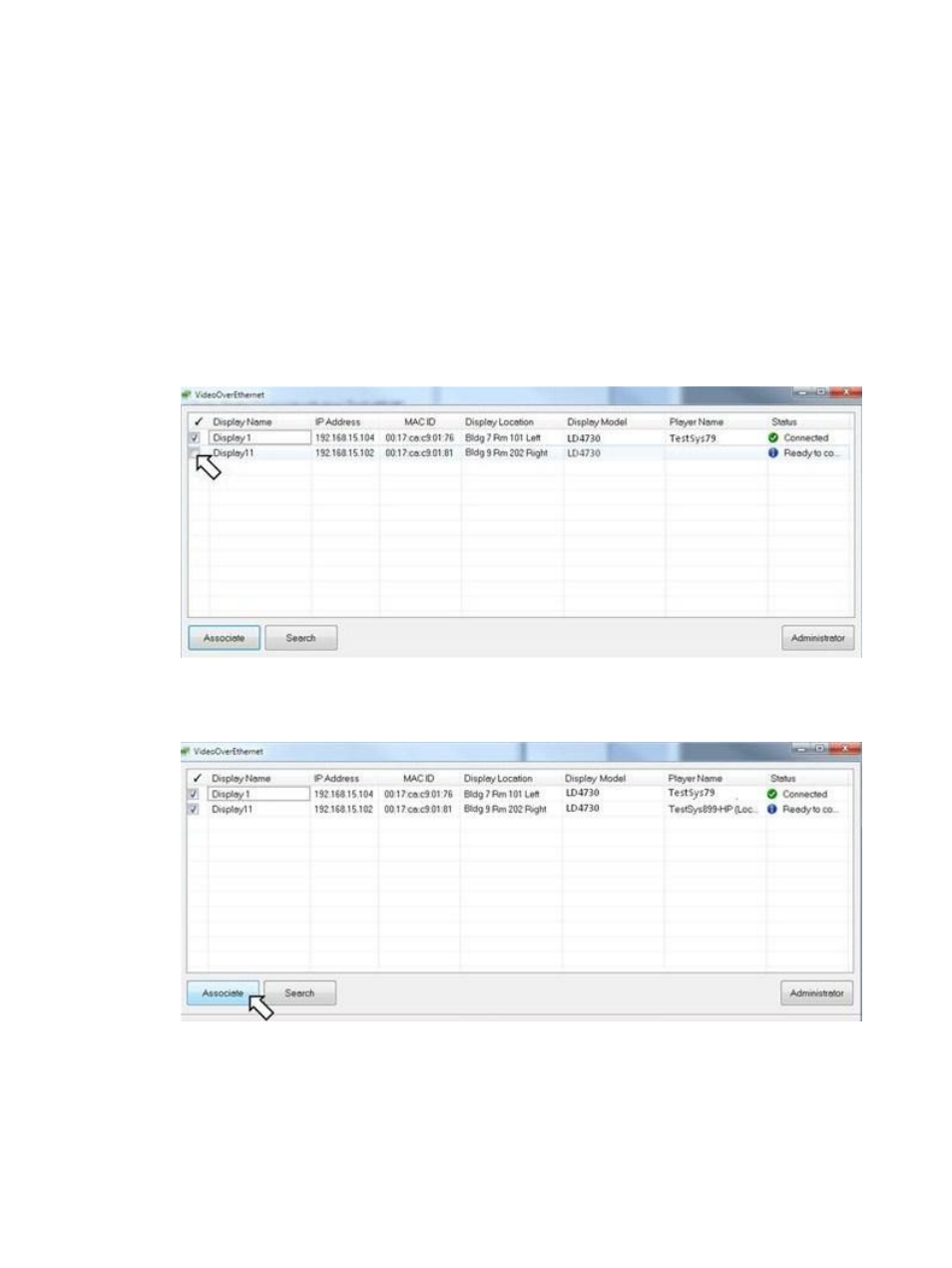

Figure 3-4 Selecting the Display for Association
The name of the player appears in the Player Name column, and a check appears in the association box
as shown in the following figure.
Figure 3-5 Associate the Display with Player
8 Chapter 3 Operating VOE
