OUTPUT GREEN/BLACK (-)
TO CHANNEL 3 CONTROL RELAY
GREEN
RED
DOOR LOCKS
(See page 13)
RED
BLUE L.E.D.
(See page 13)
BLUE
RED
GREEN
BLACK
SHOCK SENSOR
(See page 13 & 14)
BLACK
BLACK w/WHITE
CONTROL SWITCH
(See page 13)

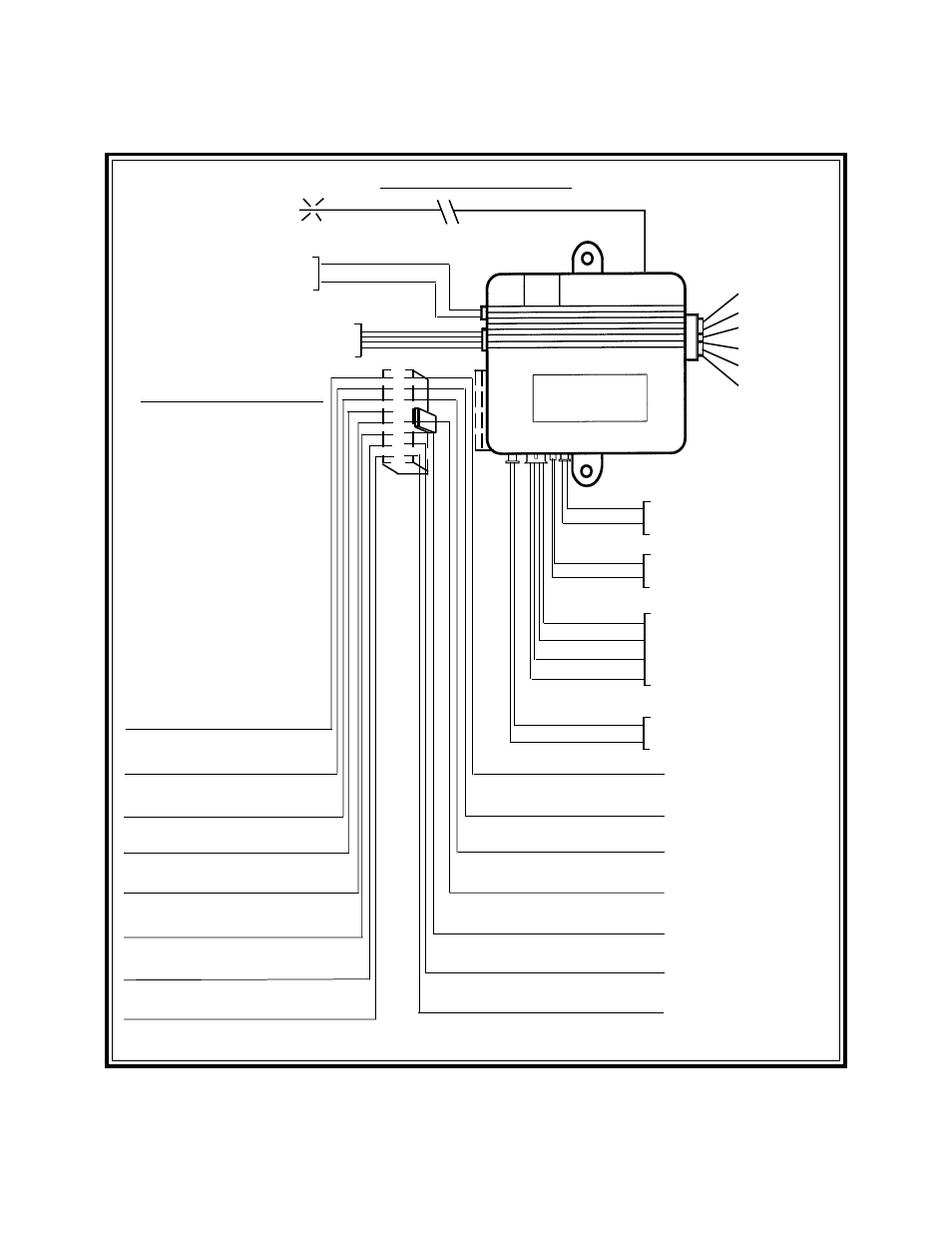

WIRING DIAGRAM
GRAY
BLACK w/GRAY
VALET/PROGRAMMING
SWITCH
(See page 13)
AUXILIARY OUTPUTS
(See page 12)
MULTI-PIN I/O HARNESS
(See page 6-12)
6-PIN POWER
HARNESS
(See page 4 & 5)
BLUE
PURPLE
RED
RED w/WHITE
GREEN
YELLOW
OUTPUT LIGHT BLUE
TO (-) IGNITION 3 CONTROL RELAY
OUTPUT WHITE/ BLACK
TO (+) SIREN
INPUT BROWN/BLACK (+) SHUT-
DOWN
FROM BRAKE LIGHT SWITCH
INPUT BROWN
FROM (-) DOOR TRIGGER
OUTPUT GREEN w/WHITE
TO (-) DOME CONTROL RELAY
OUTPUT WHITE
TO PARK LIGHT +12 VOLTS OR GROUND
SWITCHED
(SEE WHITE/RED WIRE)
AA-RS20CS
CONTROL MODULE
ANTENNA
WIRE
(See page 3)
INPUT GRAY/BLACK (-) SHUTDOWN
FROM HOOD SWITCH
INPUT WHITE/RED PARK LIGHTS
FROM +12 VOLTS OR GROUND SUPPLY
OUTPUT ORANGE (-) CONTROL
TO STARTER INTERRUPT RELAY
INPUT BLACK
TO CHASSIS GROUND
INPUT PURPLE
FROM (+) DOOR TRIGGER INPUT DARK GREEN
TO (-) INSTANT TRIGGER
INPUT GREEN/ORANGE
FROM TACHOMETER SIGNAL (-) COIL
OUTPUT DARK BLUE (-)
TO CHANNEL 2 CONTROL RELAY
