Page 82: Assembl y
ASSEMBLY
SL72 03/08
Assembly Section 3-6
© 2008 Alamo Group Inc.
ASSEMBL
Y

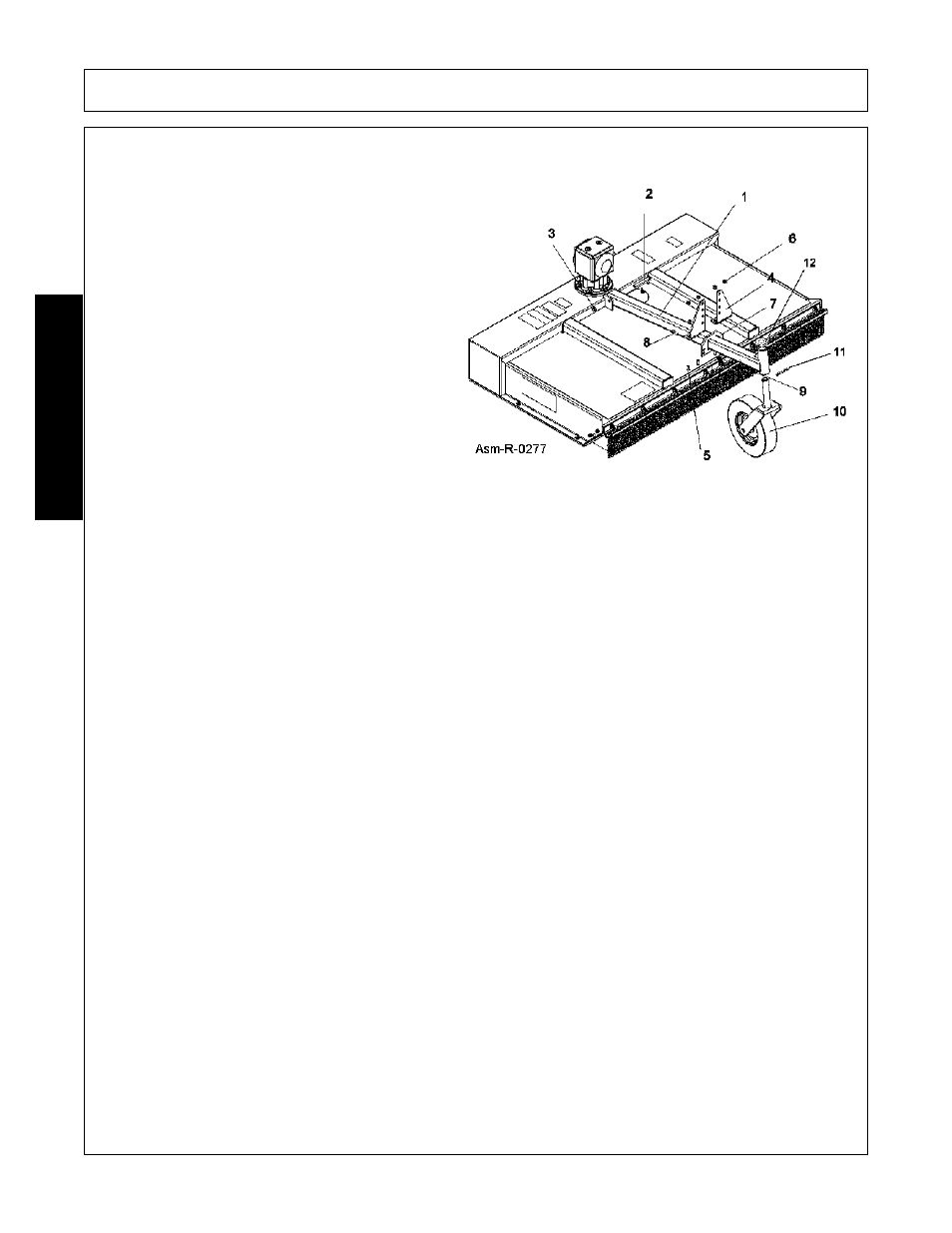

OPTIONAL GAUGE WHEEL ASSEMBLY
1. Attach Wldmt. T/W Beam (1) to the mower with
bolt (2) and Toplock nut (3)
2. Then attach tailwheel support RH and LH (4) to
Bolt (5) with Toplock nut 6.
3. After attaching the tailwheel support attach
them to position bracket (7) and attach with bolt
(8) and toplock nut (9).
4. Finally attach the wheel (10) to the Tailwheel
beam with the cotter pin (11) and Washer (12).
5. Tighten all bolts and nuts to the recommended
torque. (Refer to Image Asm-R-0277)
Optional Gauge Wheel Assembly
