3.

IDE connector (40-1 pin PRI_IDE)
The onboard IDE connector is for Ultra DMA 133/100 signal cable. There are three

connectors on each Ultra DMA 133/100 signal cable: blue, black, and gray. Connect

the blue connector to the motherboard’s IDE connector, then select one of the following

modes to configure your devices:

Drive jumper setting

Mode of device(s)

Cable connector

Single device

Cable-Select or Master

-

Black

Two devices

Cable-Select

Master

Black

Slave

Gray

Master

Master

Black or gray

Slave

Slave

• Pin 20 on the IDE connector is removed to match the covered hole on the Ultra DMA

cable connector. This prevents incorrect insertion when you connect the IDE cable.

• Use the 80-conductor IDE cable for Ultra DMA 133/100 IDE devices.

If any device jumper is set as “Cable-Select”, ensure that all other device jumpers have the

same setting.

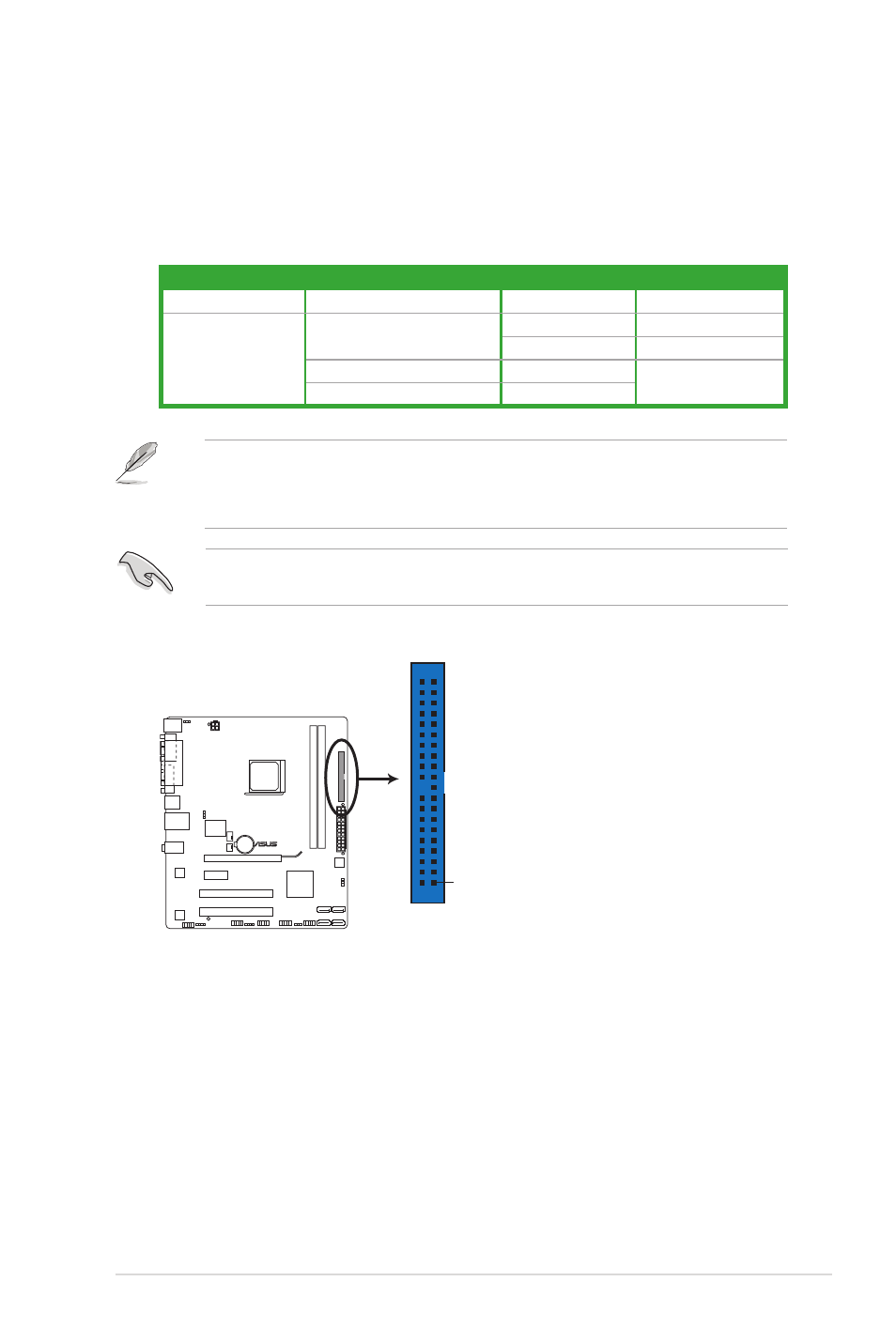

PRI_IDE

NOTE:Orient the red markings
on the IDE ribbon cable to PIN 1.

PIN1

M4N68T-M

M4N68T-M IDE connector

ASUS M4N68T-M

1-23
