ENGLISH

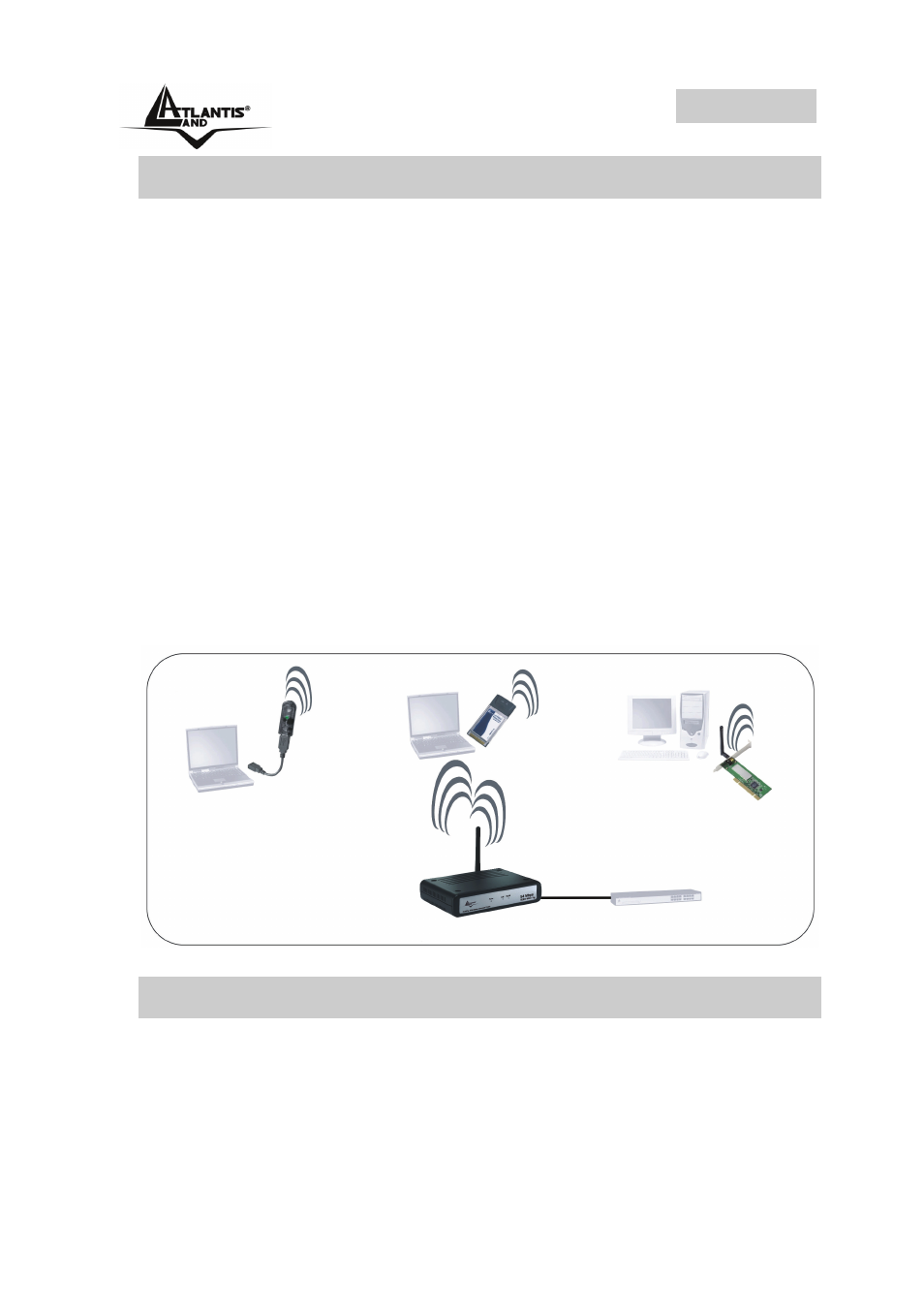

1.4 Cabling

Connect to the Switch/Hub
1.

Plug in one end of the RJ45 network cable to the

Switch/Hub port,
2.

Plug in the other end of the RJ45 network cable to

the Wireless Access Point.
Check the installation
The LEDs of the Access Point are clearly visible and the
status of the network link can be seen instantly:

• With the power source on, once the device is

connected, the Power, LAN and WLAN port LEDs
will light up indicating a normal status.

• If the LAN Port’s Link indicator does not light up then

check the RJ-45 cable if it is firmly feed to the RJ45
port, while the LAN is link up to the Switch/Hub, the
LAN port’s LED will light up.

1.5 Default Settings

The Wireless Multi-Function Access Point can be configured
with your Web browser. The web browser is included as a
standard application in following operation systems, UNIX,
Linux, Mac OS, Windows 95/98/NT/2000/Me, etc. The
