11) Cover Open Actuator
12) Charge Indicator
13) Headphone Jack 1*
14) Headphone Jack 2
15) Volume Control
16) Brightness Control
17) LCD Panel Shut Off Switch
18) Wide Button
19) Previous/Next/Pause/Stop/Play
20) Menu Button
21) Up/Down/Left/Right/OK Button
E. Controls, Indicators, and Connectors

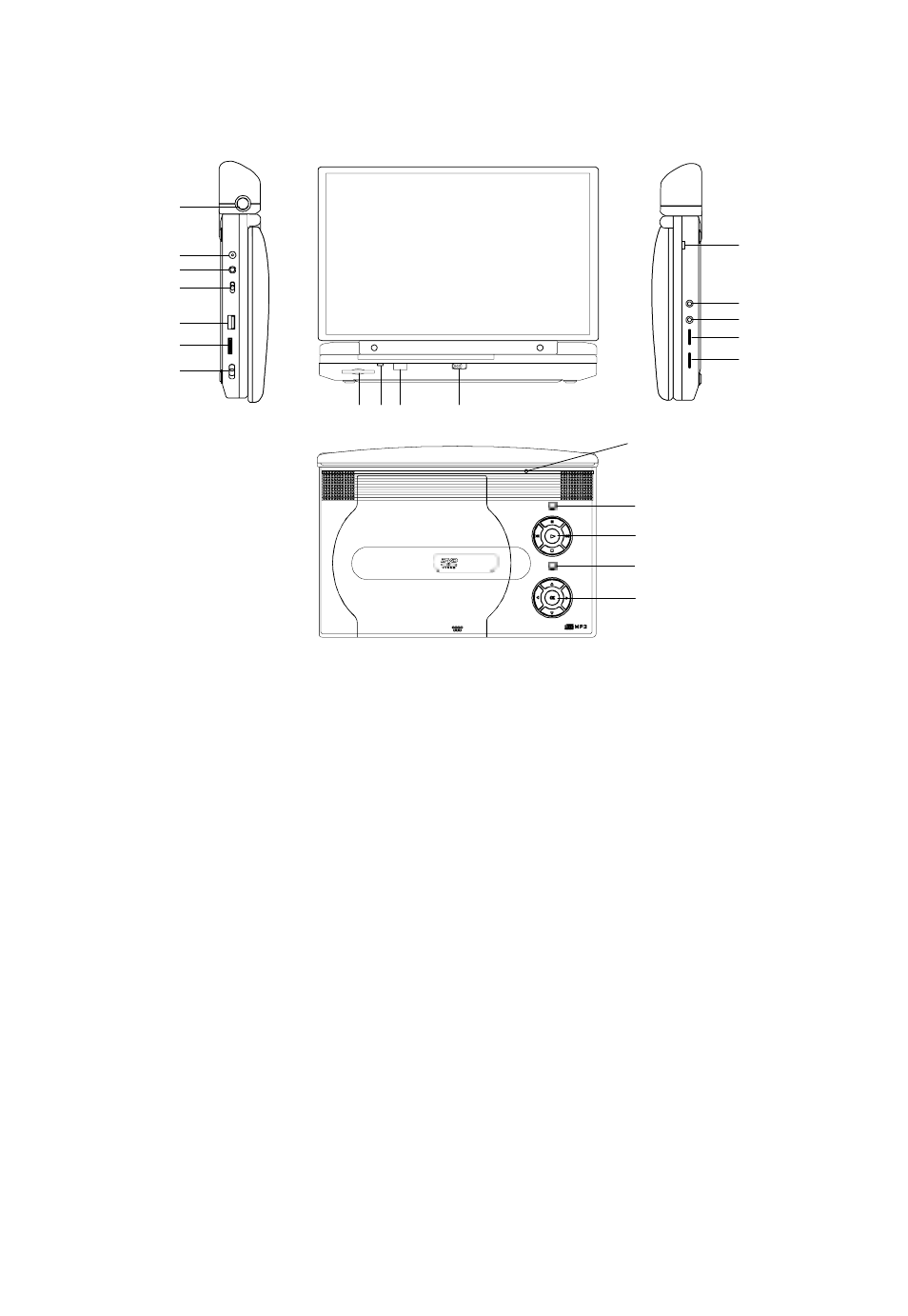

1. Unit View (Refer to Figure 2)
Figure 2
1) Battery Release Button
2) DC 9-12V Input Jack
3) AV Jack
4) AV In/Out Switch
5) USB Port
6) Game Port
7) Power On/Off Switch
8) SD Card Slot
9) Power Indicator
10) Remote Control Sensor
1
2
3
4
5
7
8 9 10 11
12
13
14
15
16
17
18
19
20
6
21
* Connecting to headphone jack number 1 will disable the
internal speakers
