4

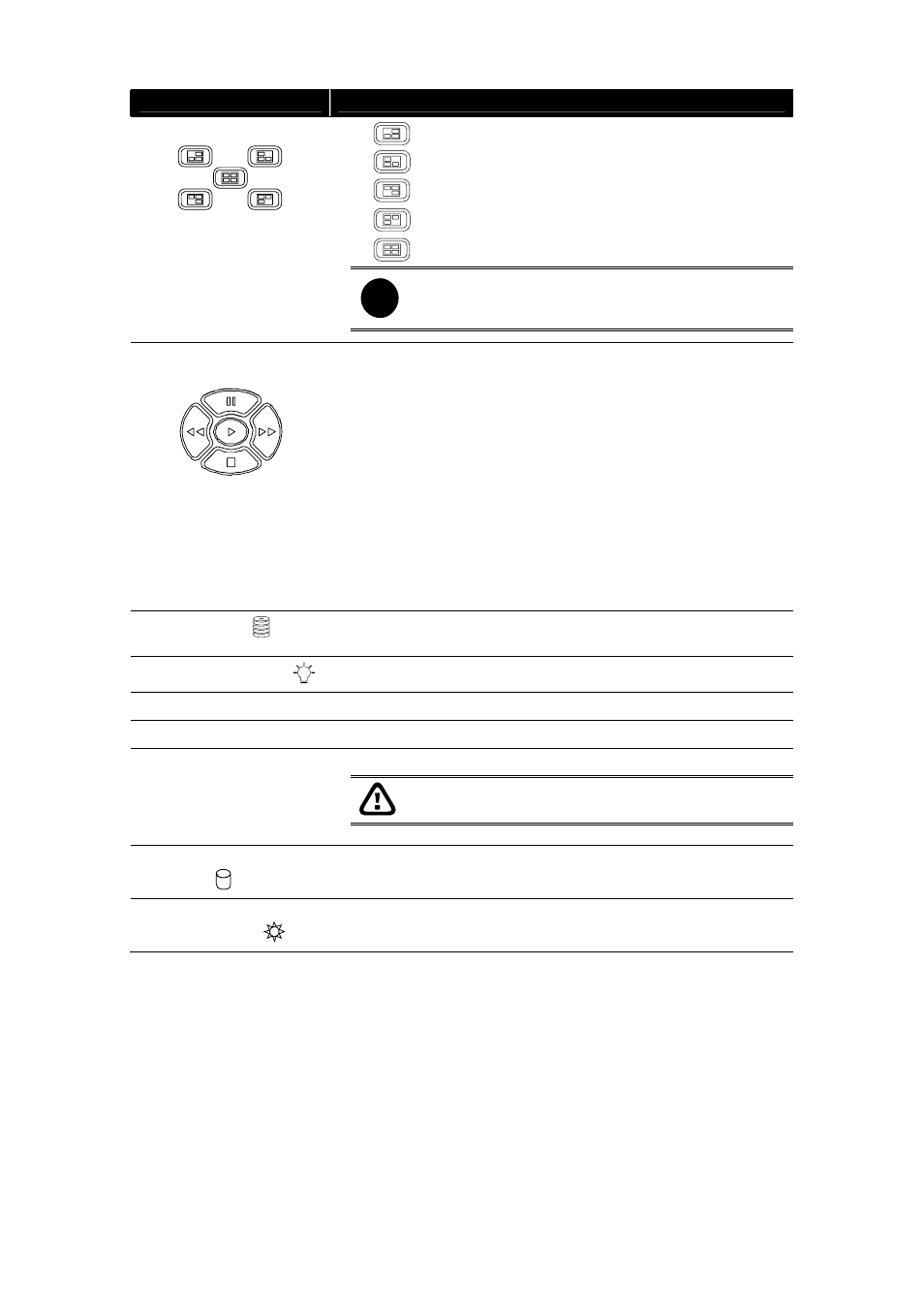

Name Function
: For ”1”
: For “2”
: For “3”
: For “4”
: For “0”
(4) 1/2/3/4/Quad
i If in QUAD record mode, user would not be able to
view single channel in full screen
Use the buttons in playback mode to:
: Display the play list and play the recorded video
: Wind back the video playback at the speed of 2x,
4x, 8x or 16x
: Fast play the video playback at the speed of 2x, 4x,
8x or 16x
: Temporarily freeze the video playback
: Stop video playback
Use the buttons in navigating OSD menu to :
: Move to the left and right
: Change the setting
(5) Playback/OSD Menu
Control Buttons
:
: Make a selection
(6) HDD LED
: Indicate running state of the hard disk. Lights when the HDD is
running
(7) DVR Power LED
: Lights when the unit is on
(8) USB 2.0 Port : Connect to PC for video transfer or playback
(9) IR Sensor
: Receive the signal from the remote control to operate the unit
Lock/unlock the hard disk rack (10) Removable HDD
Keylock
:
Make sure to TURN OFF the unit BEFORE removing
the hard disk
(11) Removable HDD
LED
: Indicate running state of the removable hard disk. Lights when
the HDD is running
(12) Removable HDD
Power LED
: Indicate power of the removable hard disk. Lights when the
HDD power is connected
