EXTERNAL
EQ
UIPMENT
SETUP
32
PC SETUP
EXTERNAL EQUIPMENT SETUP
This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings.

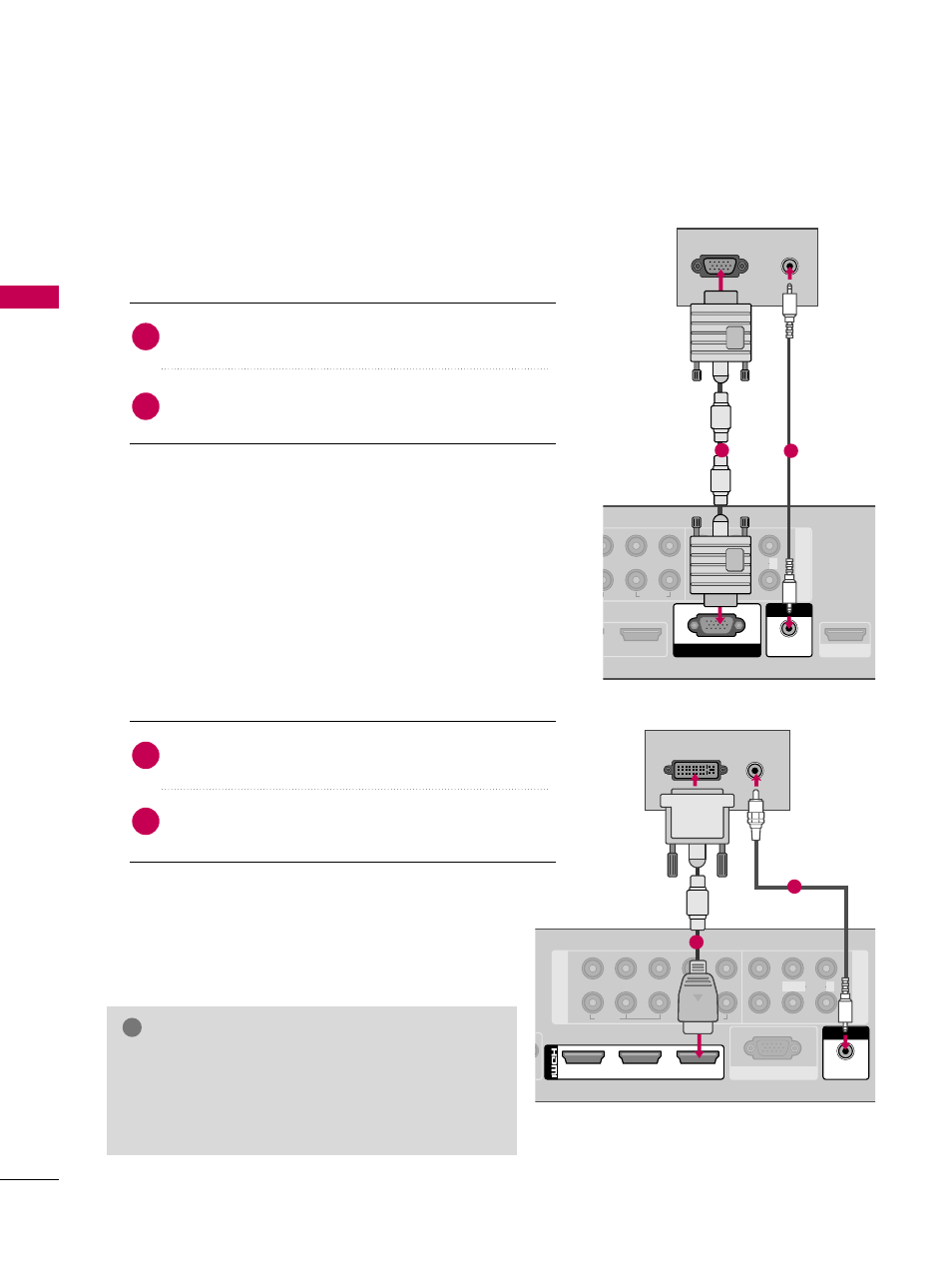

VGA (D-Sub 15 pin) Connection
1
2
A
V
IN L P R R VIDEO AUDIO
1
AUDIO
L/MONO R
RGB IN (PC)
AUDIO IN
(RGB/DVI)
RGB OUTPUT AUDIO
SERVICE ONLY
2 1
Connect the VGA output of the PC to the R RG GB B IIN N
((PP C C)) jack on the Media Box.
Connect the PC audio output to the A AU UD DIIO O IIN N
((RRG GB B//D DV VII)) jack on the Media Box.
1. How to connect
2. How to use
■ Turn on the PC and the Media Box.
■ Select the R RG GB B--PPC C input source using the IIN NPPU UT T button
on the remote control.
2
1
DVI to HDMI Connection
1
2
1
2
COMPONENT IN
A
V
IN L Y P B P R R VIDEO AUDIO
RGB IN (PC)
VIDEO AUDIO
L(MONO) R
2 1 3
/DVI IN
AUDIO IN
(RGB/DVI)
AUDIO DVI OUTPUT
1
2
Connect the DVI output of the PC to the H HD DM MII//D DV VII
IIN N 1 1, 2 2, or 3 3 jack on the Media Box.
Connect the PC audio output to the A AU UD DIIO O IIN N
((R RG GB B//D DV VII)) jack on the Media Box.
1. How to connect
2. How to use
■ Turn on the PC and the Media Box.
■ Select the H HD DM MII1 1 , H HD DM MII2 2 , or H HD DM MII3 3 input source
using the IIN NPPU UT T button on the remote control.
2
1
G G Check HDMI cable over version 1.3.
If the HDMI cables don’t support HDMI version 1.3,
it can cause flickers or no screen display. In this case
use the latest cables that support HDMI version 1.3.
NOTE !
