VCR SETUP

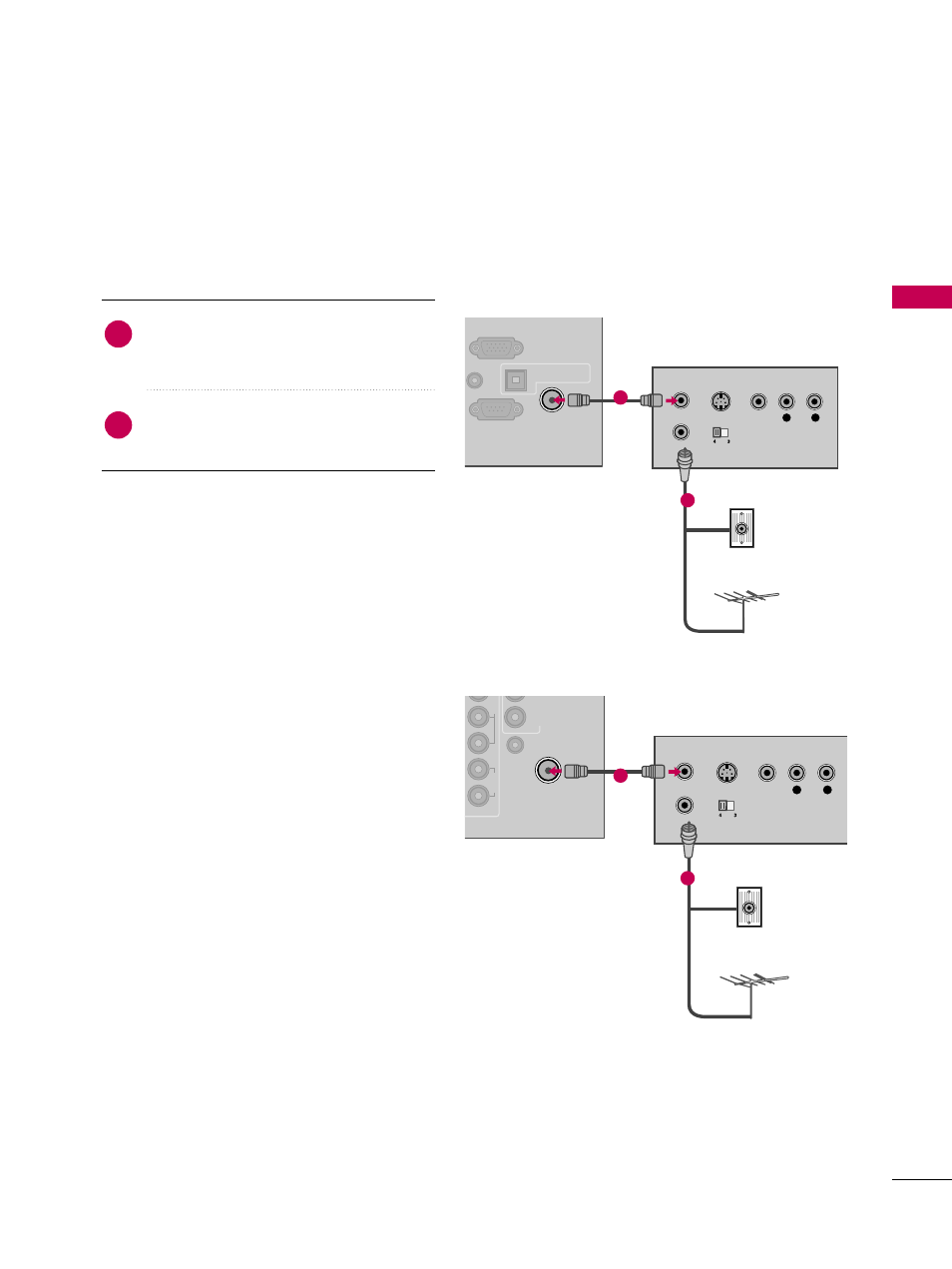

Antenna Connection
Connect the RF antenna out socket of the
VCR to the A
AN NT TEEN NN NA A//C CA AB BLLEE IIN N sock-
et on the TV.
Connect the antenna cable to the RF
antenna in socket of the VCR.
1. How to connect
2. How to use
■ Set VCR output switch to 3 or 4 and then
tune TV to the same channel number.
■ Insert a video tape into the VCR and press
PLAY on the VCR. (Refer to the VCR owner’s
manual.)
2
1
UDIO IN
GB/DVI)
OPTICAL DIGITAL
AUDIO OUT
RGB IN (PC)
( )
ANTENNA/
CABLE IN
L R S-VIDEO VIDEO
OUTPUT
SWITCH
ANT IN
ANT OUT
AUDIO
( )
SERVICE ONLY
Wall Jack
Antenna
1
2
REMOTE
CONTROL IN
VIDEO
AUDIO
2
( )
ANTENNA/
CABLE IN
L R S-VIDEO VIDEO
OUTPUT
SWITCH
ANT IN
ANT OUT
AUDIO
( ) ( )
AUDIO O L
Wall Jack
Antenna
1
2
LCD TV
Plasma TV
