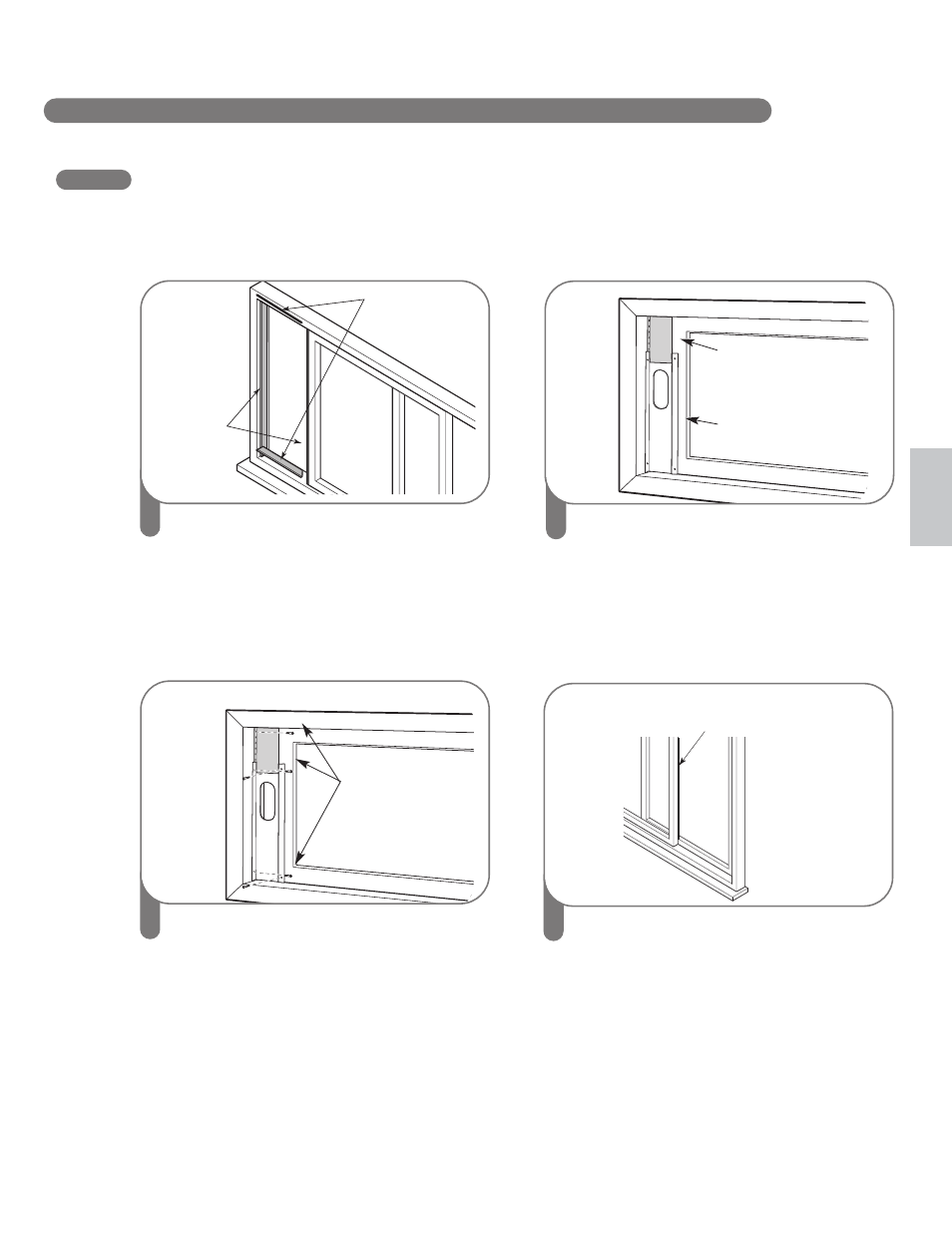

Foam seal A
(Adhesive type)
Foam seal C
(Adhesive
type-shorter)
1 Cut the foam seal A(adhesive type) &
C(adhesive type-shorter) to the proper
length, and attach it to the window sash and
frame.
2 Insert the vent panel assembly, including
extension panels, if needed, into the window
opening. Extend the extension panels, if
used.
Foam seal B
(Non-adhesive type)
4 Cut the foam seal B(Non-adhesive type) to
the window height. Stuff the foam seal B
between the glass and the window to
prevent air and insects from getting into the
room.
Vent
Panel
Type B screws
Carefully close the window. Secure the vent
panel in place with 4 type B screws, plus
one screw for each extension:
Vent panel only:
4 type B screws
Vent panel and
one extension: 5 type B screws
Vent panel and
two extensions: 6 type B screws
Two vent panels and
two extensions: 9 type B screws
INSTALLATION IN CASEMENT STYLE WINDOWS
NOTE: The window installation kit can be used with casement windows between 18 ″ and 48″ tall.
